About this replacement

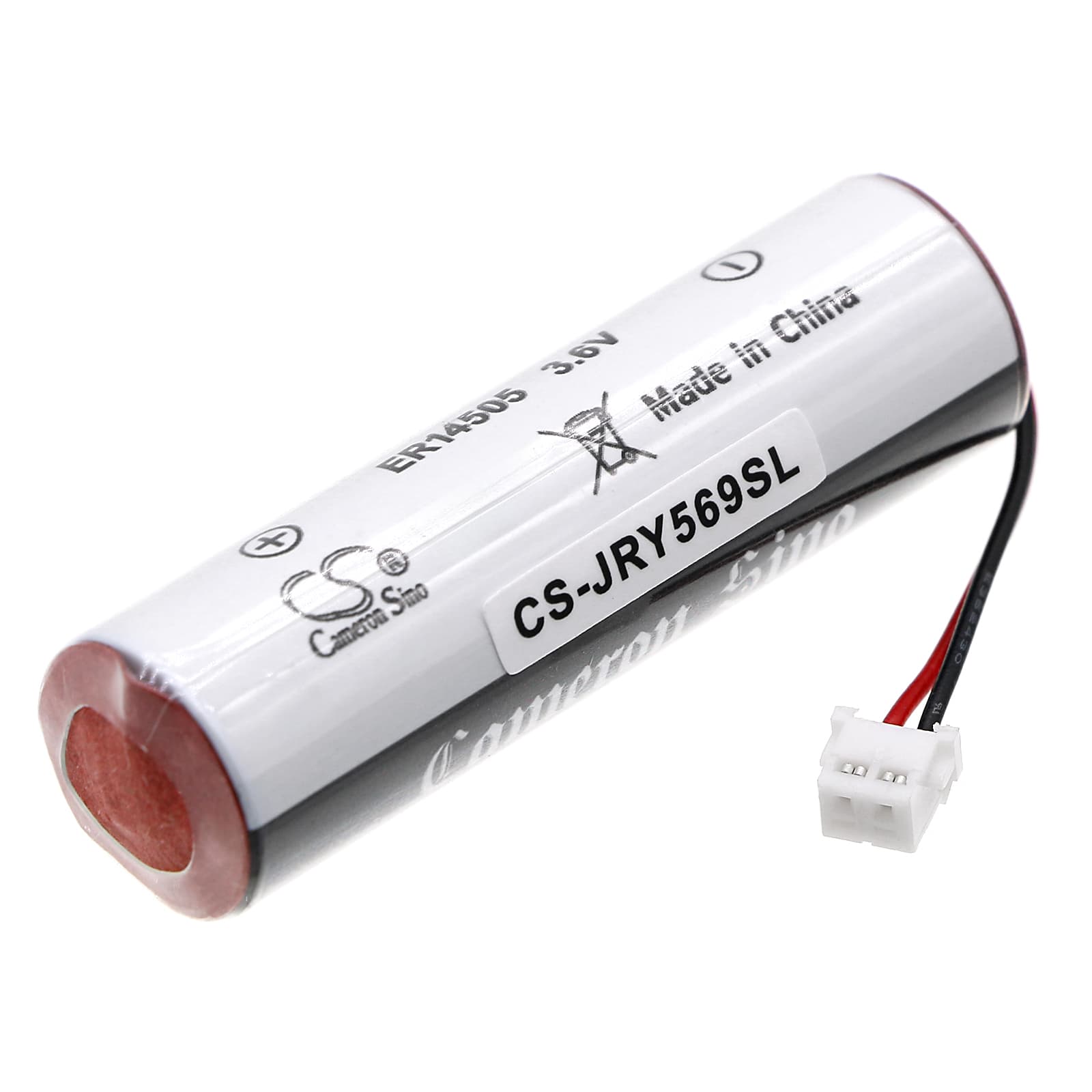

JRI SPY Series — 3.6V Li-SOCl2 Replacement Battery (12059029)
This is a 3.6V, 2700mAh lithium thionyl chloride cell for the JRI SPY series of field survey and monitoring instruments. It fits the SPY, SPY RF TH, SPY RF TC, and related variants that share the same OEM part number 12059029. Capacity matches the original spec — 9.72Wh from the product data, not a rounded estimate.
- SPY series cross-compatibility: The SPY, SPY RF TH, and SPY RF TC share the same battery bay dimensions, connector pinout, and nominal 3.6V supply rail. One cell fits all three variants without modification.
- Bench tested on actual hardware: We ran this cell through instrument power-on and sensor polling cycles. The BMS held voltage within spec during probe initialisation and sustained the 3.6V rail through repeated logging bursts without dropout.
- Post-installation calibration cycle: After fitting this cell, run a full calibration cycle through the instrument menu before field deployment. The SPY maps battery state during calibration — skipping this step causes premature low-battery warnings during your first measurement session, even with a full cell installed.
BMS lockout after the SPY sat unused in a carry case for months
Li-SOCl2 cells have very low self-discharge, but the BMS protection circuit has its own quiescent draw. After extended storage, that draw can pull cell voltage below the BMS recovery threshold — typically around 3.0V — causing the circuit to latch off. When this happens, the instrument will not power on even with a cell that still holds charge. The fix is to connect the instrument to its charging dock or USB supply briefly; the external voltage wakes the BMS and re-enables the output rail. Once the BMS resets, the instrument should boot normally.
Readings drifting or resetting mid-session during continuous sensor logging
Sustained sensor polling draws a near-constant current load across the cell. If the cell voltage sags below the instrument's brown-out threshold — around 3.2V under load — the firmware can reset mid-session, discarding buffered log data. This is more common with aged cells where internal resistance has climbed, not a fault in new hardware. Install a fresh cell and verify the open-circuit voltage reads at or above 3.6V before logging. That confirms internal resistance is low enough to hold the rail steady under continuous load.
