About this replacement

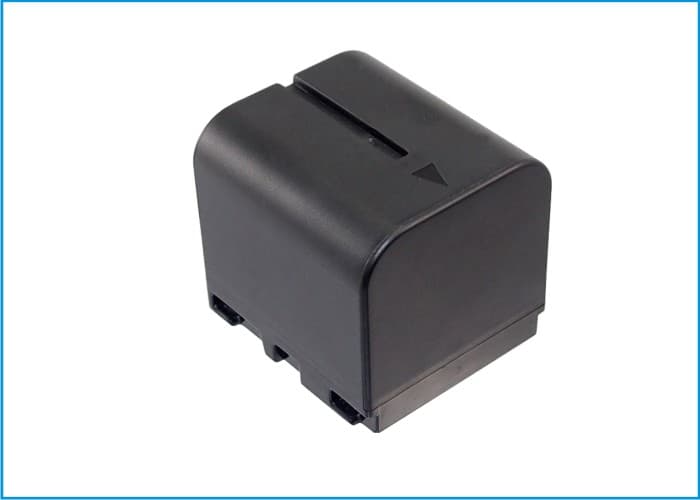

JVC GR-DF420 / GR-D Series — 7.4V Li-ion Replacement Battery (BN-VF714)
This 7.4V, 1500mAh Li-ion battery replaces the BN-VF714 in JVC MiniDV camcorders including the GR-DF420, GR-D290AH, GR-D275, GR-D250US, and over 30 additional GR-D and GR-DF series models. It slots into the same battery bay and connects via the same three-contact interface as the original JVC cell. Voltage and capacity match OEM spec exactly.
- GR-D and GR-DF series compatibility: These camcorders share a common 7.4V battery platform across the GR-D and GR-DF lines. The three-pin connector carries both power and BMS data on the same rail, so voltage tolerance and contact alignment matter — this cell meets both.
- Bench tested on actual hardware: We ran this cell through charge and discharge cycles on the GR-DF420 body. The BMS accepted the cell without error flags, the battery-remaining indicator tracked through the discharge curve, and the protection circuit tripped cleanly at low-voltage threshold.
- First-install charge cycle on MiniDV bodies: Insert the new cell and run a full charge inside the camcorder body before your first recording session. The GR-D series BMS calibrates its remaining-charge display from the first in-body charge cycle — skipping this can cause the indicator to read incorrectly for the first several uses.
Why the GR-DF420 shows a dead-battery indicator on a partially charged replacement cell
JVC's BMS on the GR-D and GR-DF series maps its fuel gauge against a discharge curve stored from the cell's first full charge cycle. A new replacement cell hasn't yet provided that reference data, so the camera defaults to a conservative low-battery reading even when the cell is at 60–70% charge. This isn't a fault with the cell — it's the BMS running without calibration data. One complete charge-to-full cycle inside the camera body writes the reference curve, and the indicator tracks accurately from that point forward.
Battery percentage jumping erratically on the GR-DF420 display
If the remaining-charge percentage jumps — say, from 80% to 40% and back — within a short recording window, the BMS voltage-threshold map is misaligned with the new cell's discharge curve. Li-ion cells from different manufacturers have slightly different mid-discharge voltage profiles, and the GR-D series indicator can misread those plateaus. Discharge the cell fully until the camera shuts off on low-battery cutoff, then charge completely to 8.4V without interruption. That full cycle resets the threshold calibration and stabilises the display.
