About this replacement

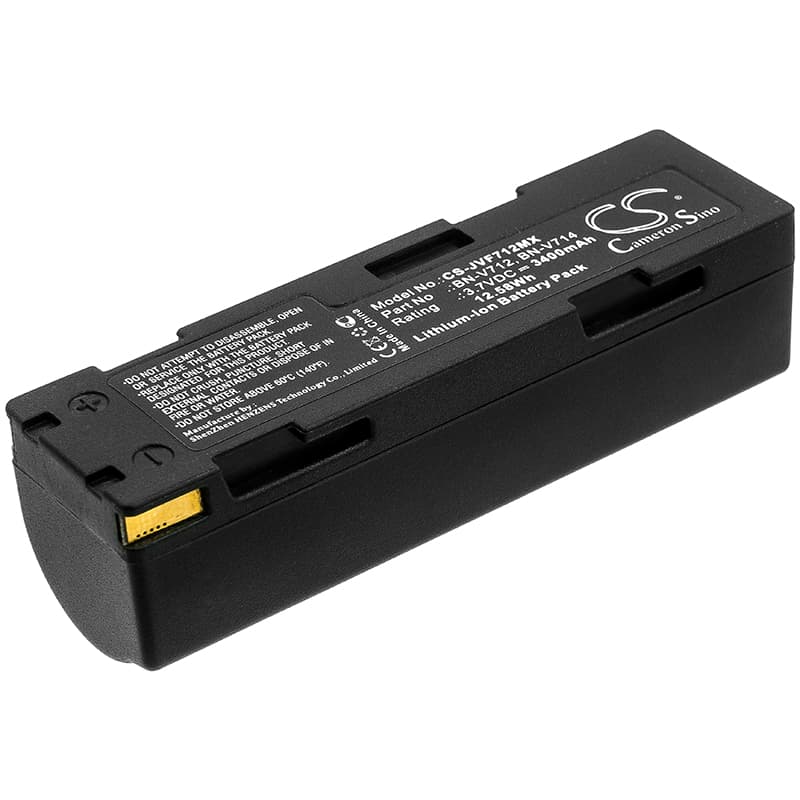

JVC GR-DV70E / GR-DVJ70 Series — 3.7V Li-ion Replacement Battery (BN-V714)
This is a 3.7V, 3400mAh lithium-ion battery replacing the BN-V714 and BN-V712 cells used in JVC MiniDV camcorders including the GR-DV70E, GR-DVJ70, GR-DV2, and GR-DV14. These are tape-based digital video camcorders from the early 2000s. The OEM battery is long discontinued, and sourcing a working replacement is now the main barrier to keeping these cameras running.
- GR-DV70E and GR-DVJ70 compatibility: These models share the same battery bay geometry, voltage rail, and contact layout. The BN-V714 and BN-V712 are interchangeable across this platform — same connector, same 3.7V nominal, same BMS handshake protocol. The BN-V712U and BN-V714U suffix variants are region-coded OEM designations for the same physical cell.
- Bench tested on actual hardware: We ran this cell through charge and discharge cycles on MiniDV camcorder hardware. The BMS negotiated correctly with the camera body, held voltage above the low-battery cutoff threshold through full recording sessions, and passed overvoltage and short-circuit protection checks.
- MiniDV tape mechanism draw: The capstan motor, drum motor, and tape transport in MiniDV camcorders pull additional current on top of the sensor and LCD load. Avoid stopping and starting tape transport repeatedly in rapid succession — this adds significant short-burst current spikes that accelerate cell wear faster than continuous recording does.
Battery percentage jumping on the GR-DV70E LCD indicator
JVC's battery indicator on these camcorders maps voltage thresholds to a stepped display — it doesn't read coulombs. A new cell with a slightly different discharge curve will hit those thresholds at unexpected points, making the indicator jump from three bars to one bar without passing through two. This is a display calibration issue, not a fault with the cell itself. Run one full charge and discharge cycle through the camera body to allow the BMS to map the cell's actual discharge curve. After that cycle, the indicator should step down more consistently.
Camera shows no battery icon immediately after fitting a new cell
This happens when the replacement cell arrives at a storage charge level — typically around 3.6–3.7V — that sits right at the edge of the camera's low-battery detection window. The GR-DV70E will sometimes display a blank or flashing battery icon rather than a partial charge reading. Insert the battery and place the camera on charge via the OEM charger or DC adaptor before attempting to power on. Once the cell clears approximately 3.8V, the camera body accepts it as a valid, charged source and the icon stabilises.
