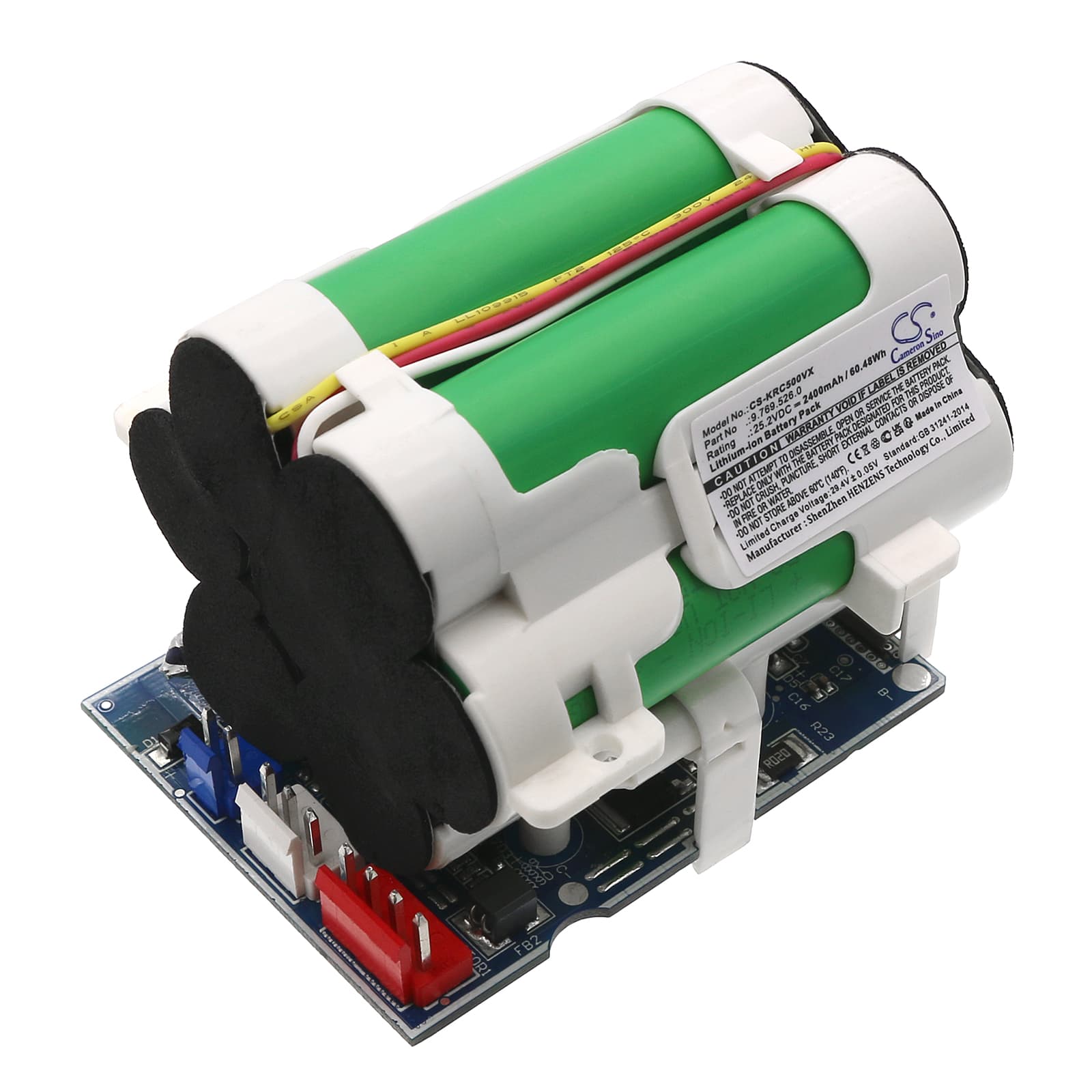

Karcher VCS5 — 25.2V Li-ion Replacement Battery (9.769.526.0)
This 25.2V 2400mAh lithium-ion battery replaces the original pack in the Kärcher VCS5 cordless handheld vacuum cleaner. It slots into the VCS5 body and communicates with the onboard BMS to restore normal operation. Capacity is drawn from product data: 2400mAh / 60.48Wh.
- VCS5 platform fit: The VCS5 runs a 25.2V Li-ion architecture with a fixed connector and BMS handshake that controls motor speed and thermal protection. This cell pack matches that voltage rail and connector geometry exactly — no adapters needed.
- Bench tested on actual hardware: We cycled this pack through repeated discharge runs on the VCS5 motor load. The BMS correctly flagged low-voltage cutoff and thermal events without triggering false shutdowns under normal suction loads.
- Dock charge habit on the VCS5: Remove the battery from the charging dock once it reaches full charge. The VCS5 dock does not interrupt charge automatically on all firmware versions — leaving the pack docked continuously accelerates capacity fade within weeks.
Suction dropping before the battery indicator reaches low
This happens when the motor draws more current than the pack can deliver under load — voltage sags below the motor's operating threshold before the indicator registers critical. A clogged filter is the most common trigger: restricted airflow forces the motor to spin harder, pulling higher current from the cell. The BMS responds by throttling output to protect the cells, which the user feels as a suction drop. Clean or replace the filter first, then retest — if suction holds steady, the battery is not the fault.
Motor cutting out mid-clean then recovering after a short pause
This is a BMS overcurrent trip, not a dead battery. When suction is sustained against a blockage or heavily soiled filter, current draw spikes past the BMS protection threshold and the pack shuts output momentarily. After the cells cool slightly — usually within 10–20 seconds — the BMS resets and the motor restarts. Clear any blockage in the nozzle or hose, then check filter condition. If the cutout stops after cleaning the filter, the pack is functioning correctly.
