About this replacement

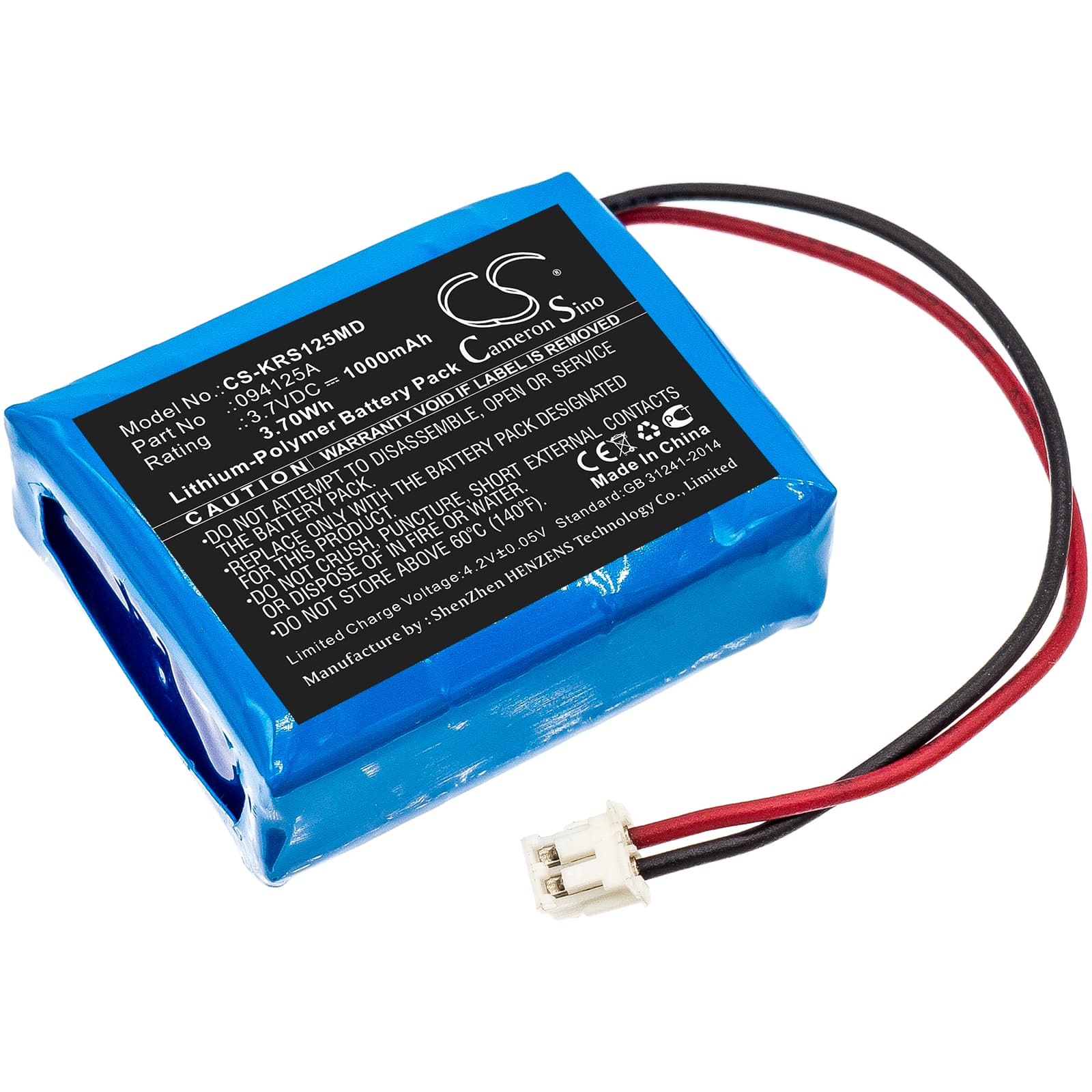

KARL STORZ Surgical Headlight — 3.7V Li-Polymer Replacement Battery (094125A)
This 3.7V 1000mAh lithium-polymer cell is a direct replacement for the KARL STORZ surgical headlight battery identified by OEM part number 094125A. It fits the KARL STORZ headlight unit used for surgical and clinical illumination. Voltage and capacity match the original specification exactly — 3.7V, 1000mAh (3.7Wh).
- 094125A platform fit: The KARL STORZ 094125A battery uses a lithium-polymer cell format at 3.7V. The headlight's BMS is calibrated to this voltage rail and cell chemistry. Substituting a different chemistry or nominal voltage trips a permanent battery fault in the device firmware.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on a controlled bench rig and monitored BMS handshake at each phase. The protection circuit responded correctly to charge termination and low-voltage cutoff. No false fault codes were logged during the test sequence.
- Post-swap self-test completion: After fitting this battery, allow the headlight to complete its full power-on self-test without interruption. The device BMS runs a verification routine at startup to confirm cell chemistry and state of charge. Cutting power mid-sequence logs a battery fault that persists until the next clean reboot.
Why the 094125A headlight alarms low battery on a freshly charged cell
The KARL STORZ headlight BMS stores charge thresholds calibrated to the OEM cell's internal resistance profile. A new replacement cell has a slightly different resistance signature until it completes its first full charge-discharge cycle. The BMS interprets this mismatch as a low-state-of-charge condition and triggers the low battery alarm even at full voltage. Running one complete charge cycle — charge to cutoff, discharge under normal use, recharge fully — recalibrates the threshold and clears the alarm.
Headlight will not power on after the battery sat in storage
Lithium-polymer cells self-discharge during storage. If the cell voltage drops below approximately 3.0V, the headlight BMS enters a lockout state and refuses to boot — this is a protection mechanism, not a dead battery. Connect the headlight to its charger and leave it for a minimum of 30 minutes without attempting to power it on. The charge IC applies a low-rate recovery current first. Once cell voltage recovers above 3.2V, normal charging resumes and the device powers on.
