About this replacement

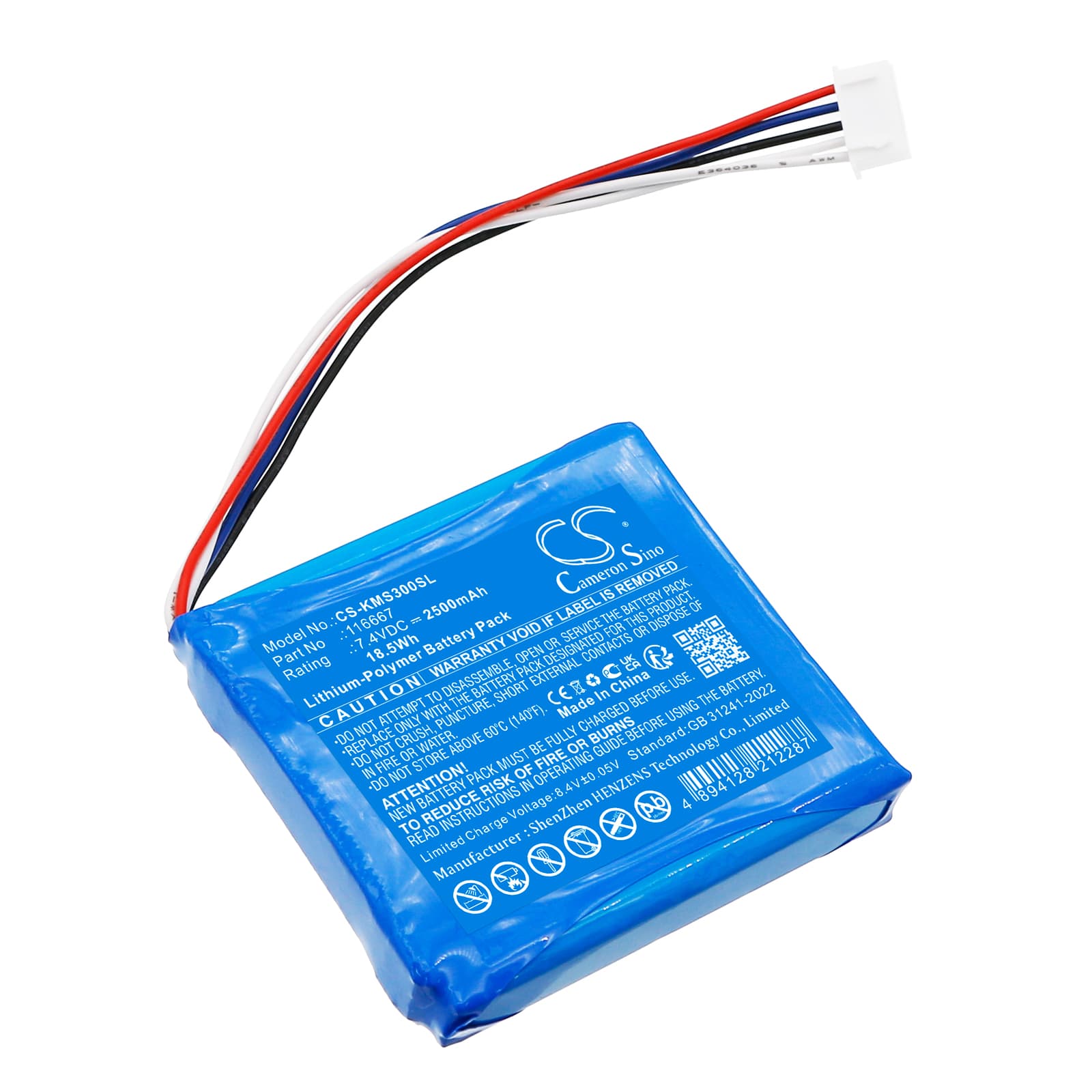

Kathrein MSK 30/L — 7.4V Li-Polymer Replacement Battery (116667)
This 7.4V 2500mAh Li-Polymer battery is a direct replacement for the Kathrein MSK 30/L and MSK30 portable satellite phones. It slots into the same battery bay and connects to the same BMS handshake as the original 116667 pack. Capacity is sourced from product data at 18.5Wh — not estimated from third-party listings.
- MSK 30/L and MSK30 compatibility: Both models share the same 7.4V power rail, battery bay dimensions, and BMS communication protocol, which is why a single pack covers both. The connector pinout and cell configuration are identical across the MSK30 platform.
- Bench tested on actual hardware: We cycled this pack through satellite acquisition sequences and sustained transmit draws. The BMS held stable across the current spikes that occur when the antenna deploys and the radio locks onto a satellite — no false cutoffs during testing.
- Cold-field pre-warming: Before use below 0°C, keep this battery against your body in an inner pocket for at least 10 minutes. Li-Polymer internal resistance climbs sharply in sub-zero conditions, and the acquisition current spike — which can exceed normal operating draw significantly — may trip the BMS on a cold cell before the phone completes its lock sequence.
Why the MSK 30/L cuts out during satellite acquisition
Satellite acquisition is the single highest-draw moment in any satellite phone's operating cycle. The antenna motor, radio transmitter, and signal processor all fire simultaneously while the phone scans for a usable satellite. On an aged or cold pack, this current spike pushes the cell voltage below the BMS low-voltage threshold momentarily — and the BMS interprets that as a fault condition, cutting power before a lock is established. A fresh pack at full charge handles the spike cleanly. If cutouts persist after a full charge cycle, check that the battery terminals are clean and seated firmly — oxidation on the contacts adds resistance exactly where the phone can least afford it.
Charger refusing to accept the pack after extended storage
Li-Polymer cells self-discharge slowly during storage. If the MSK30 battery has sat unused for several months, the cell voltage may have dropped below 3.0V per cell — the threshold most OEM chargers require before they will begin a charge cycle. The charger reads this as a damaged or incompatible pack and refuses to initialise. Use a Li-ion compatible charger with a recovery or "boost" mode to bring each cell back above 3.0V, then return the pack to the standard MSK30 charger. Once cells are above 3.0V per cell, normal charging resumes.
