About this replacement

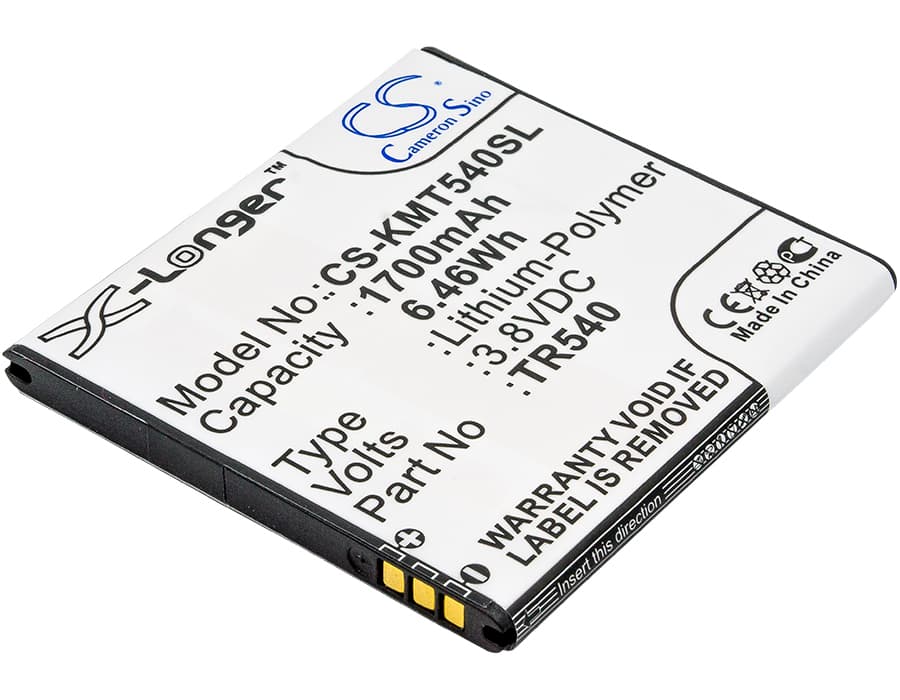

KAZAM Trooper 540 — 3.8V Li-Polymer Replacement Battery (TR540)
This 3.8V, 1700mAh lithium-polymer cell replaces the original battery in the KAZAM Trooper 540 smartphone. It matches the OEM part numbers TR540 and TR540-HSHCJ0002088. Capacity figures are taken from product data — 6.46Wh total energy.
- Trooper 540 fitment: The Trooper 540 uses a 3.8V single-cell Li-Polymer pack with a specific connector pinout that carries both charge and fuel gauge data lines. This cell matches that pinout, so the phone's charge IC and fuel gauge IC communicate with the pack correctly from first boot.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on the bench, monitoring BMS cutoff thresholds at both ends. The protection circuit tripped correctly at low voltage and did not false-trip during a simulated modem transmit load spike.
- Fuel gauge recalibration on first install: On first use after fitting this cell, disable fast charging and run one full discharge-to-charge cycle. This lets the fuel gauge IC map its coulomb counter against the new cell's actual discharge curve before high-current charging begins on an uncalibrated reference.
Sudden shutdown at 20–30% on the Trooper 540 after a cell swap
The Trooper 540's fuel gauge IC retains the discharge curve of the old, degraded cell in its coulomb counter memory. When a new cell is installed, the gauge still thinks the voltage floor is reached at 20–30% reported charge — so the phone shuts down even though the new cell has capacity remaining. The fix is a full uninterrupted discharge until the phone powers off on its own, followed by a full charge without interruption. After one complete cycle the fuel gauge resets its reference and percentage readings stabilise.
Phone won't power on after the replacement battery sat in storage
Li-Polymer cells self-discharge during storage, and if the pack voltage drops below approximately 2.5V the BMS enters lockout mode to prevent cell damage. The Trooper 540 will show no response — no boot screen, no charging indicator — when plugged in immediately after. Connect the phone to a low-current charger, such as a 5V/500mA USB port rather than a fast charger, and leave it for 20–30 minutes without attempting to power on. The BMS uses that trickle current to recover cell voltage above the lockout threshold, after which normal charging resumes.
