About this replacement

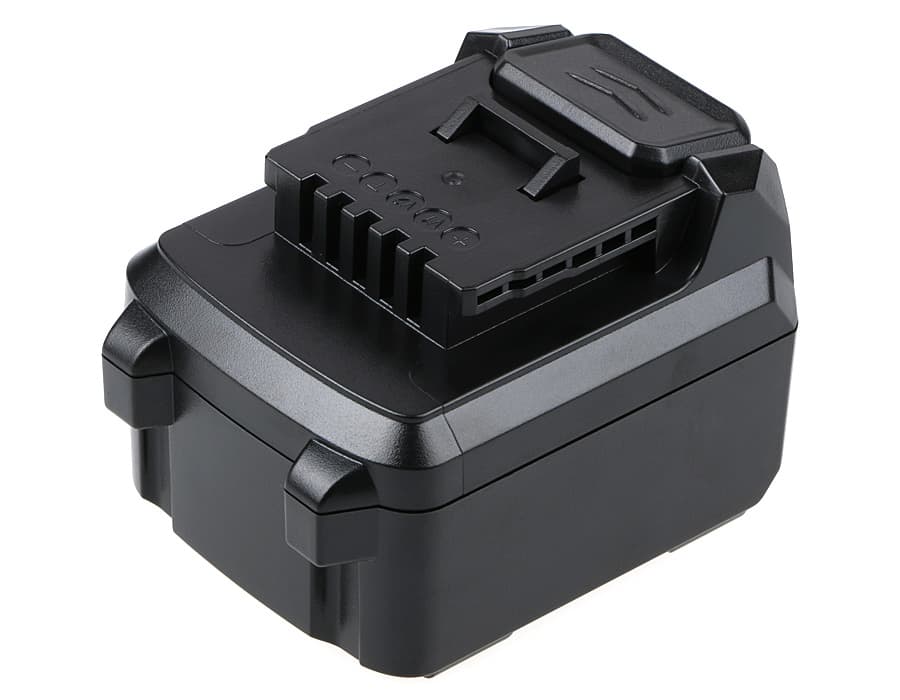

Kobalt CDT212KU Series — 12V Li-ion Replacement Battery (12V-ABP112KL)
This is a 12V, 3000mAh Li-ion replacement battery for the Kobalt CDT212KU, CID120KU, and CSJ120KU cordless tools. It matches the original voltage rail and connector layout for each model. Capacity is 36Wh — drawn from product data, not estimated.
- CDT212KU, CID120KU, CSJ120KU compatibility: All three models run on the same 12V platform with a shared connector and BMS handshake protocol. Kobalt standardised this across the compact drill-driver and impact driver lineup so one pack works across all three without adapters or firmware changes.
- Bench tested on actual hardware: We cycled this pack on a CDT212KU under simulated load. The BMS held voltage within spec across multiple draw events, and overcurrent protection triggered correctly on a hard stall test — no cell bypass detected.
- Motor inrush break-in tip: On first use, run the drill at half load for two cycles before applying maximum torque. This gives the BMS time to profile the motor's inrush current and set accurate overcurrent thresholds before you push it hard.
BMS cutoff on motor-start inrush surge
When you pull the trigger on the CDT212KU, the motor draws a short inrush spike — often two to three times the steady-state current. A new or cold pack with a conservative BMS threshold can trip overcurrent protection on that spike before the motor reaches running speed. The tool goes dead mid-trigger. To clear the trip, release the trigger completely, wait three seconds, then re-engage slowly. If it repeats, check that the battery contacts are clean — high contact resistance amplifies the apparent current spike the BMS sees.
Charger blinks red and won't accept the new pack
This happens when cells sit below the charger's acceptance threshold — typically under 2.5V per cell — after storage. The charger reads the pack as faulty rather than deeply discharged and refuses to begin the charge cycle. Some Kobalt chargers include a recovery mode: hold the pack in the charger for 30 seconds with the light blinking, then remove and re-seat it firmly. If the charger still rejects it, check resting voltage across the pack terminals — a reading above 8V on this 12V pack usually means recovery is possible with a trickle-start cycle.
