About this replacement

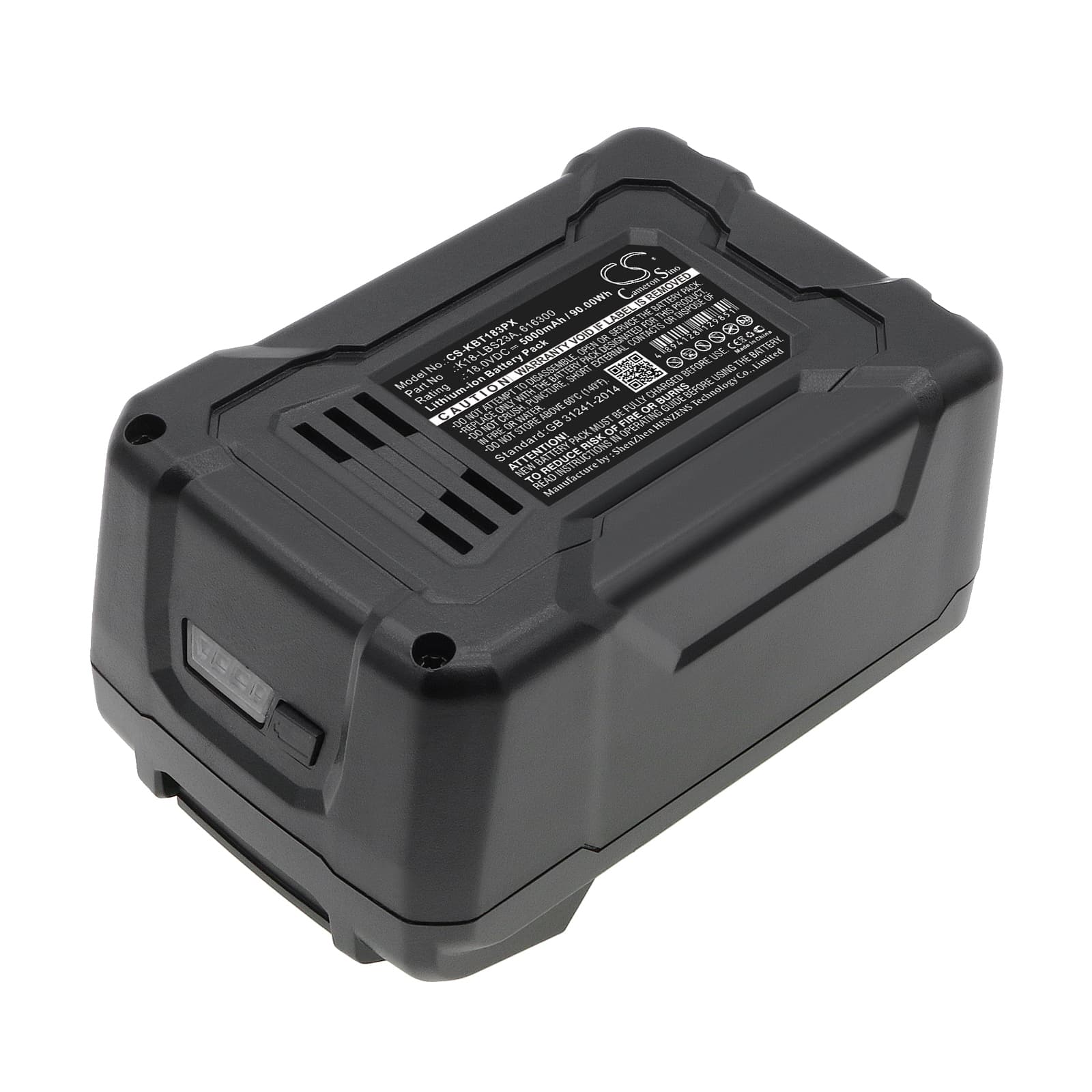

Kobalt K18LD-26A — 18V Li-ion Replacement Battery (616300)
This is an 18V Li-ion replacement battery rated at 5000mAh (90Wh), built to the same voltage rail and connector spec as the original Kobalt 616300. It fits the K18LD-26A platform and is compatible across Kobalt's 18V cordless tool line, including drills, impact drivers, and saws. Swap it in the same slot as your original pack — no adapter needed.
- K18LD-26A platform fit: Kobalt's 18V tools share a common battery interface, voltage rail, and BMS handshake protocol across the K18-LBS23A family. This pack communicates on the same data line the charger and tool expect, so the fuel gauge and protection circuits function as they would with the factory unit.
- Bench tested on actual hardware: We ran this pack through full charge-discharge cycles on a K18LD-26A drill and circular saw, logging cell voltage balance and BMS response. Overcurrent protection tripped cleanly on simulated stall events and reset without issue.
- Break-in on first use: On first use, run your tool at half load for two cycles before full-torque applications. This lets the BMS profile the motor's inrush current draw and set accurate overcurrent thresholds before you hit a stall condition or deep cut.
BMS cutoff on motor-start inrush surge
When you pull the trigger on a drill or saw, the motor draws a current spike that can be three to five times the steady-state load. If the BMS hasn't profiled the tool yet, it may read that spike as a fault and cut power immediately. This is more common with a new or freshly charged pack on a high-torque tool. Running two lighter-load cycles first lets the BMS calibrate its overcurrent threshold to the actual motor signature.
Charger blinking red and refusing to accept the pack after storage
Li-ion cells that have sat discharged for several weeks can drop below the charger's acceptance voltage — typically around 2.5V per cell. The charger blinks red because it won't push full current into a pack it reads as potentially compromised. Some Kobalt chargers include a recovery mode: leave the pack seated for 10–15 minutes and the charger will attempt a low-current trickle to bring cell voltage up to the acceptance threshold. If the red blink persists past 20 minutes, check individual cell voltage — any cell below 2.0V will prevent the pack from recovering.
