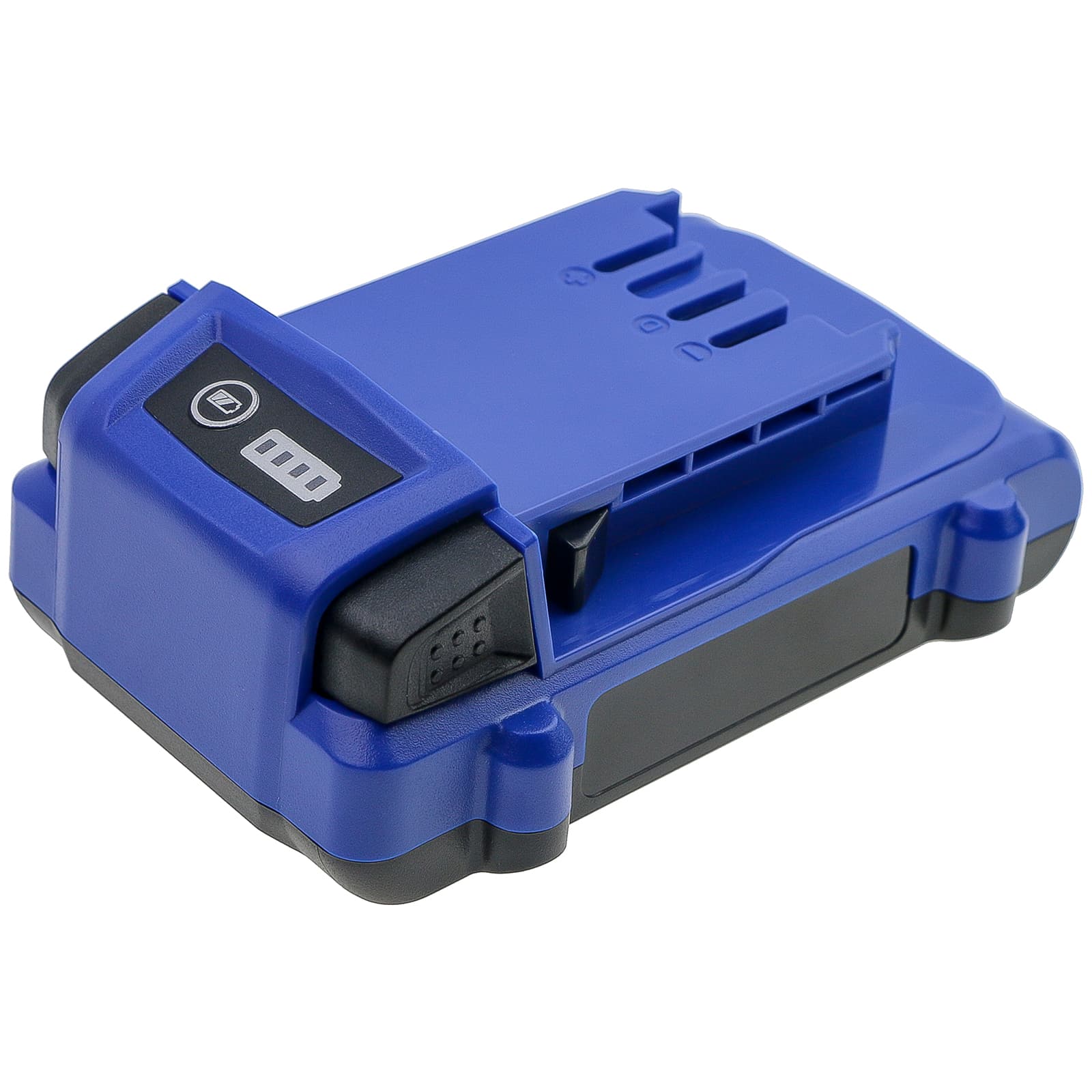

Kobalt KRAD 1224B-03 / KHD 524B-03 — 24V Li-ion Replacement Battery (KB624-03)
This is a 24V Li-ion battery pack rated at 1500mAh (36Wh), built to replace the original Kobalt KB624-03 and its compatible variants. It fits the KRAD 1224B-03 drill/driver, KHD 524B-03, KDD 524B-03, and related Kobalt 24V platform tools. The connector and BMS communication lines match the original pack — no adapter required.
- Kobalt 24V platform fit: The KRAD 1224B-03, KHD 524B-03, and KDD 524B-03 share the same 24V rail, slide-on connector format, and BMS handshake protocol. That's why one pack — KB624-03, KB524-03, KB424-03, KB224-03, or KB124-03 — crosses all of them.
- Bench tested on actual hardware: We cycled this pack through a 24V Kobalt drill under full torque loads. The BMS correctly managed motor-start inrush current and held the voltage rail stable across repeated trigger pulls without false overcurrent trips.
- First-use inrush profiling: Run the drill at half load for two cycles before going full torque. This lets the BMS log the motor's inrush current signature and set its overcurrent threshold accurately — reducing nuisance cutoffs during heavy fastening tasks later.
BMS cutoff on motor-start inrush in the KRAD 1224B-03
When you pull the trigger on a fresh or recently swapped pack, the motor draws a spike of current — often 3–5× the running draw — in the first milliseconds of rotation. A BMS that hasn't profiled that inrush yet may read it as a fault and cut power immediately. This is especially common with high-torque fastening modes or when the chuck is already under load at trigger pull. The fix is controlled break-in cycling at partial load so the BMS builds an accurate current map before you push maximum torque.
Kobalt charger blinking red and refusing to accept the pack after storage
Kobalt 24V chargers reject packs where cell voltage has dropped below roughly 2.5V per cell — a protection threshold that blocks charging to prevent damage to over-discharged lithium cells. A pack left unused for several months can self-discharge past that floor. If the charger blinks red and never starts a charge cycle, try a brief trickle from a compatible Li-ion recovery charger to bring cells up to 2.8–3.0V per cell, then return the pack to the Kobalt charger. Once voltage clears the acceptance threshold, the standard charge cycle will initiate normally.
