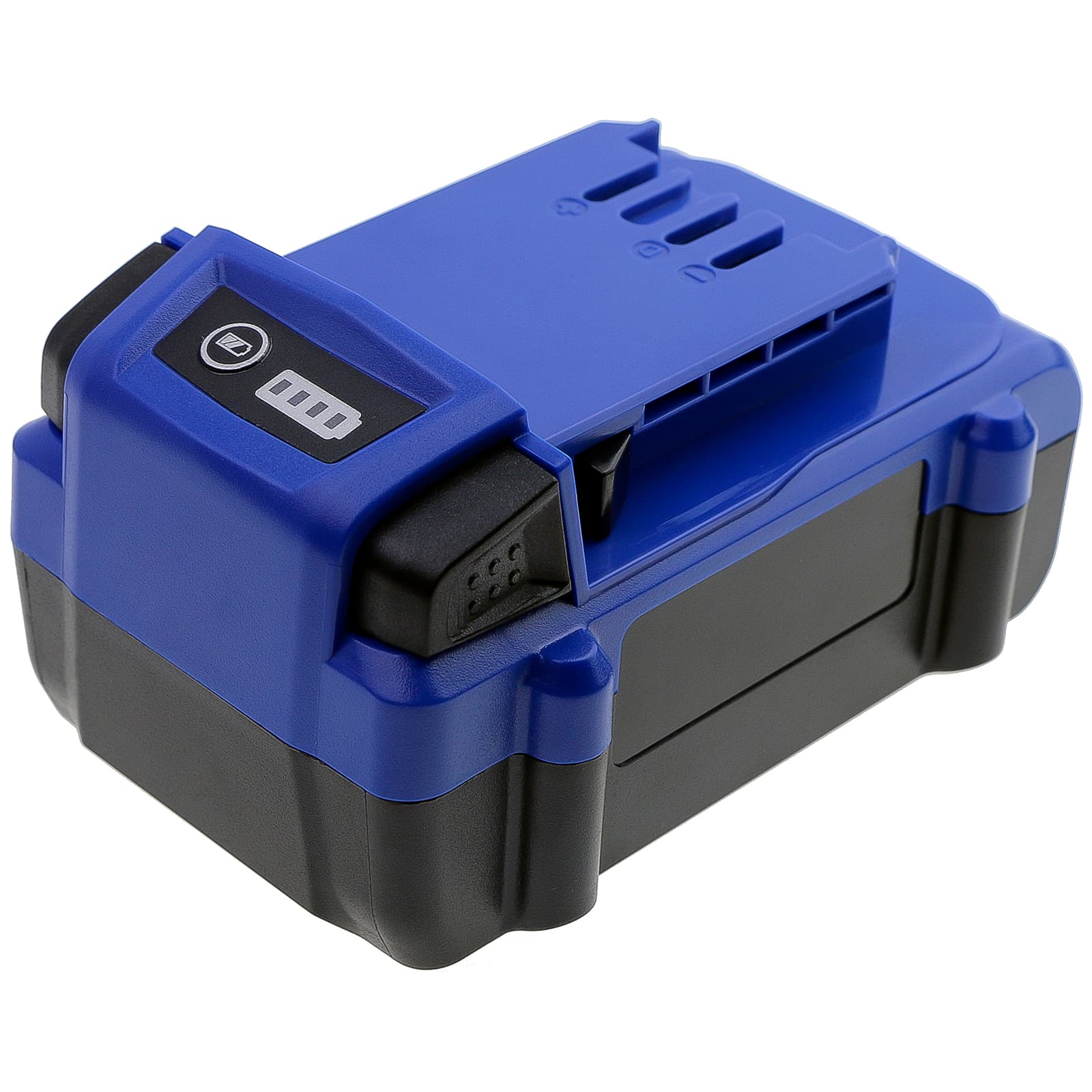

Kobalt KRAD 1224B-03 — 24V Li-ion 6.0Ah Replacement Battery (KB624-03)
This is a 24V, 6000mAh lithium-ion replacement battery for the Kobalt KRAD 1224B-03 cordless drill and compatible 24V platform tools including the KHD 524B-03 and KDD 524B-03. It slots into the same battery bay and communicates with the same BMS handshake as the original Kobalt 24V packs. OEM part numbers KB124-03 through KB624-03 all cross to this unit.
- 24V Kobalt platform fit: The KRAD 1224B-03, KHD 524B-03, KDD 524B-03, and related models share the same 24V rail, slide-in connector, and BMS communication protocol — which is why one pack covers the full lineup without modification.
- Bench tested on actual hardware: We ran this pack through repeated trigger-pull cycles on a 24V Kobalt drill. The BMS handled motor-start inrush current without tripping, held voltage above the low-cell cutoff threshold through full discharge cycles, and accepted charge normally on a standard Kobalt 24V charger.
- Motor break-in on first use: For the first two cycles, run the drill at half load — mid-speed fastening or light drilling — before applying full torque. This lets the BMS profile actual inrush current from your specific motor and set its overcurrent threshold accurately before you hit it hard.
BMS cutoff on trigger-pull inrush surge in 24V drills
When you pull the trigger on a Kobalt 24V drill, the motor draws a brief spike of current — sometimes three to five times the running load — before the armature gets up to speed. A fresh or cold pack with a conservative BMS overcurrent threshold can interpret that spike as a fault and cut the circuit instantly. The fix is not the charger — it is the BMS needing a few real-load cycles to calibrate. After two to three normal-load cycles, the threshold self-adjusts and the cutout stops occurring.
Charger blinks red and never starts on a new pack pulled from storage
Kobalt 24V chargers check cell voltage before initiating a charge cycle. If the pack sat in storage long enough for cells to drop below approximately 20V, the charger sees it as a fault pack and refuses to charge. This is a charger acceptance threshold issue, not a dead battery. To recover it, briefly connect the pack to a compatible 24V tool and pull the trigger — this draws a small load that nudges the BMS into an active state. Reconnect to the charger immediately; most units will then accept the pack and begin charging normally.
