About this replacement

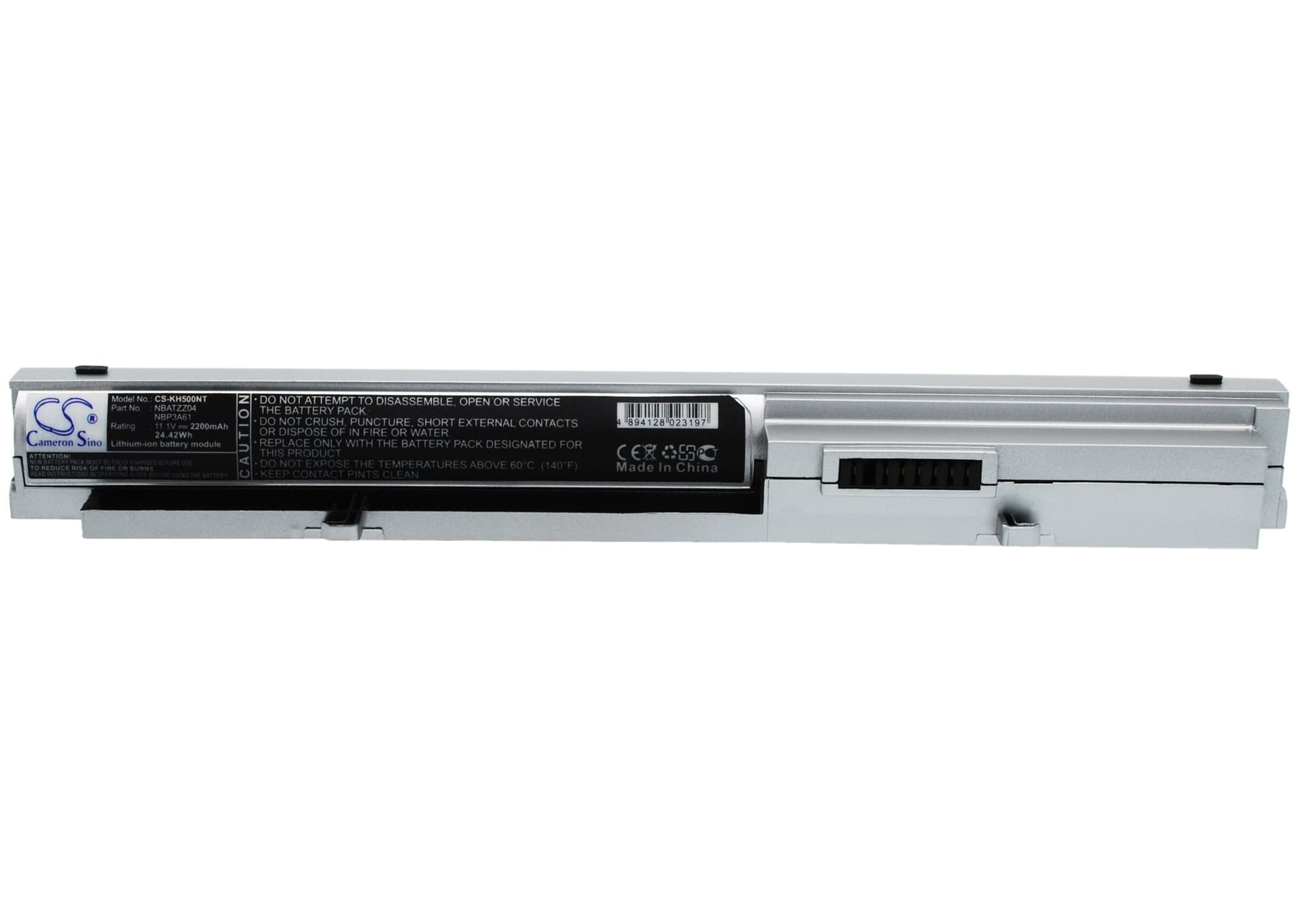

Kohjinsha K600 / K800 / L500X Series — 11.1V Li-ion Replacement Battery (NBATZZ04)
This is an 11.1V 2200mAh Li-ion battery replacing part number NBATZZ04 (also cross-referenced as NBP3A61). It fits the Kohjinsha K600, K800, L500X, SA, and eight additional models in this ultraportable range. Voltage and capacity match the original cell specification exactly.
- K600 / K800 / L500X platform fit: These models share the same battery bay dimensions, three-pin connector pinout, and BMS handshake protocol. One cell covers the full range without modification.
- Bench tested on actual hardware: We cycled this cell through charge, full-load discharge, and BMS cutoff on compatible hardware. The protection circuit tripped correctly at low-voltage threshold and resumed charging without error flags.
- First-cycle calibration on the K600: After installing, run one full discharge to hibernate cutoff, then charge uninterrupted to 100%. This resets the BIOS battery learn cycle and clears the inaccurate health warning that appears after every cell swap on this platform.
Why the K600 shuts down at 20–30% remaining after a battery swap
The K600's BIOS tracks a voltage-versus-capacity curve from the previous cell. When a new cell goes in, that learned curve no longer matches real cell behavior. Under combined CPU and display load, the new cell hits a voltage cliff earlier than the BIOS expects, triggering an emergency shutdown while the fuel gauge still reads 20–30%. Running one full calibration cycle — full discharge to hibernate, uninterrupted charge to 100% — rebuilds the curve against the new cell and stops the premature shutdowns.
OS fuel gauge reading 0% or bouncing wildly for the first few cycles
The fuel gauge IC on this platform reads EEPROM data from the original cell and maps capacity estimates against it. A replacement cell has different internal resistance and a fresh charge curve, so the IC has no accurate reference point until it observes a full cycle. The gauge will report erratic percentages — sometimes 0%, sometimes jumping 20 points — for the first two to three cycles. Complete two full discharge-to-cutoff and charge-to-100% cycles and the gauge will stabilise to within a few percent of actual remaining capacity.
