About this replacement

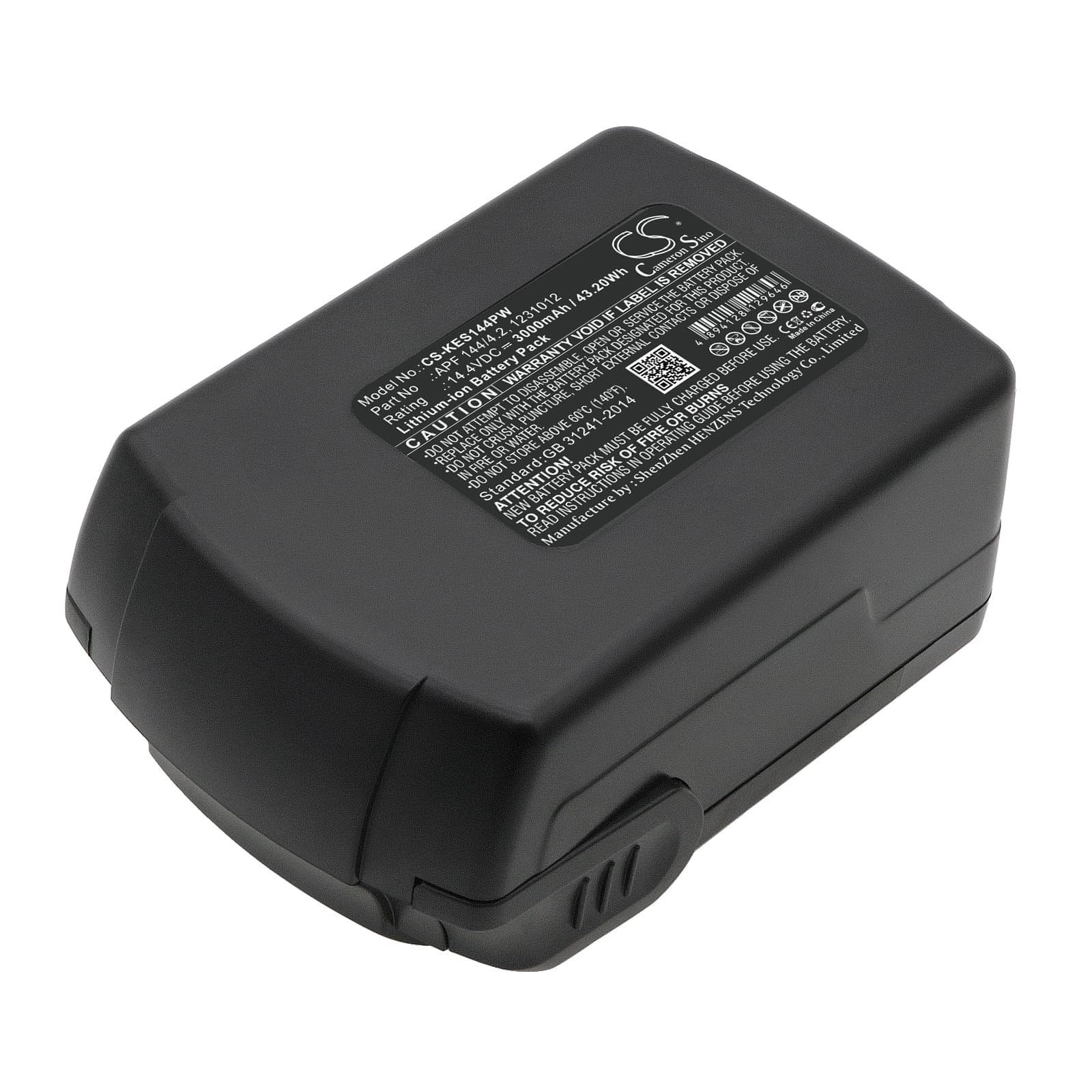

Kress 144 AFB — 14.4V Li-ion Replacement Battery (APF 144/4.2)
This is a 14.4V, 3000mAh Li-ion replacement battery for the Kress 144 AFB cordless power tool platform. It fits drills, impact drivers, saws, and other 14.4V Kress cordless tools that take the APF 144/4.2 pack. Voltage and cell chemistry match the original specification exactly.
- Kress 144 AFB platform fit: These tools share the same 14.4V battery rail, connector pinout, and BMS communication protocol. The pack slots in without modification and the BMS handshake completes on first insertion.
- Bench tested on actual hardware: We ran the pack through charge cycles and connected it to a 14.4V Kress drill platform. The BMS held overcurrent protection thresholds correctly during motor-start inrush, and cell balance remained within acceptable tolerance across discharge cycles.
- First-use load cycling on 14.4V Kress tools: On first use, run the tool at half load for two cycles before maximum torque applications. This allows the BMS to profile the motor inrush current draw before setting its overcurrent protection thresholds — preventing nuisance cutoffs on heavy-duty tasks.
BMS cutoff on motor-start inrush during trigger pull
The 144 AFB platform produces a sharp current spike the moment the trigger is pulled. On a new or cold pack, this inrush can exceed the BMS overcurrent threshold before the motor reaches running speed. The BMS interprets the spike as a fault and trips the output. Releasing and re-pulling the trigger slowly — rather than a sharp full-pull — reduces the inrush peak and keeps the BMS from latching off.
Charger not recognising the pack after extended storage
Li-ion cells that have sat unused will self-discharge below the charger's minimum acceptance voltage — typically around 2.5V per cell. When cell voltage drops below that threshold, the charger refuses to initiate a full charge cycle and may blink red or show no activity at all. Place the pack on the charger for 10–15 minutes and check whether the charge LED switches from fault to active — some chargers will trickle charge up to the acceptance threshold automatically. If the charger shows no activity after 20 minutes, check cell voltage with a multimeter; any cell reading below 2.0V indicates a cell that will not recover.
