About this replacement

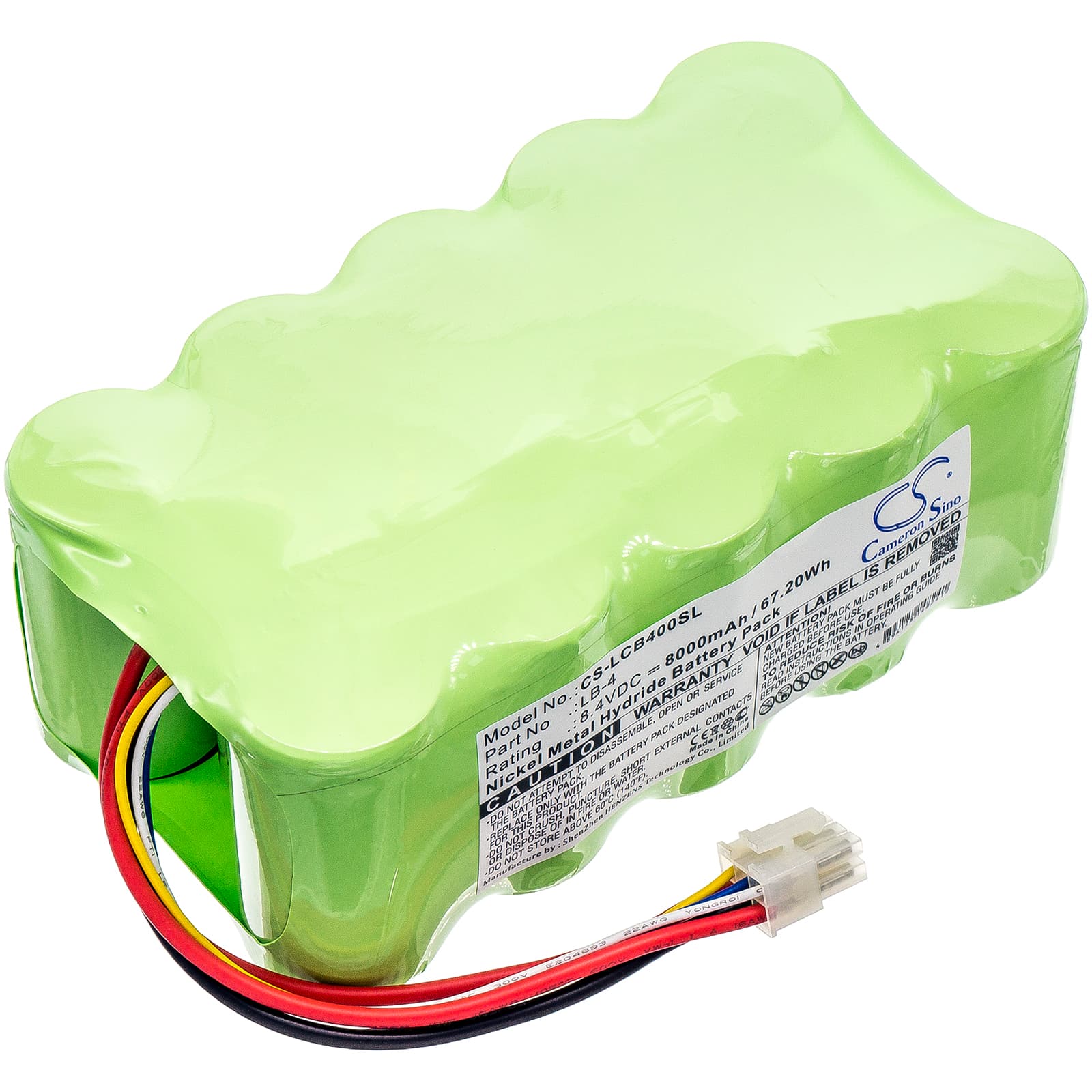

Laser Alignment Laser Beacon LB-4 — 8.4V Ni-MH Replacement Battery (LB-4 / LB-4C)
This 8.4V, 8000mAh Ni-MH battery replaces the original pack in the Laser Alignment Laser Beacon LB-4. It fits using OEM part numbers LB-4 and LB-4C. The Laser Beacon LB-4 is a rotating laser unit used for alignment and leveling on construction and surveying sites.
- Laser Beacon LB-4 fit: The LB-4 and LB-4C share the same voltage rail, connector geometry, and BMS handshake profile. This battery covers both part number variants without modification.
- Bench tested on actual hardware: We ran this battery through charge and discharge cycles on the LB-4 platform. The BMS accepted the pack without fault codes, and the self-leveling motor spun up cleanly at full voltage.
- Warm-up after battery swap: After fitting a new or freshly charged pack, wait two minutes before taking measurements. The self-leveling motor and laser module both need the voltage to stabilize before the unit reaches calibrated output. Measurements taken during warm-up will be off.
Why the LB-4 loses beam accuracy as the battery drains
The Laser Beacon LB-4 runs both its rotating motor and laser diode from the same battery pack. As voltage drops toward the lower end of the Ni-MH discharge curve, the motor slows slightly and laser output dims. Both the rotation speed and the diode power level are voltage-sensitive, so accuracy degrades before the unit shuts off. Replacing or recharging before voltage sags below 7.2V keeps the unit operating within spec.
Auto-leveling stalls or fails to complete after a battery swap
The leveling motor in the LB-4 draws a short current spike on startup. If the replacement battery is not fully charged, that spike can pull voltage below the BMS protection threshold and trip a cutoff before leveling completes. The unit will appear to power on but the laser will not begin rotating. Charge the battery to full — confirmed by the charger switching to maintenance mode — then reinstall and power on fresh.
