About this replacement

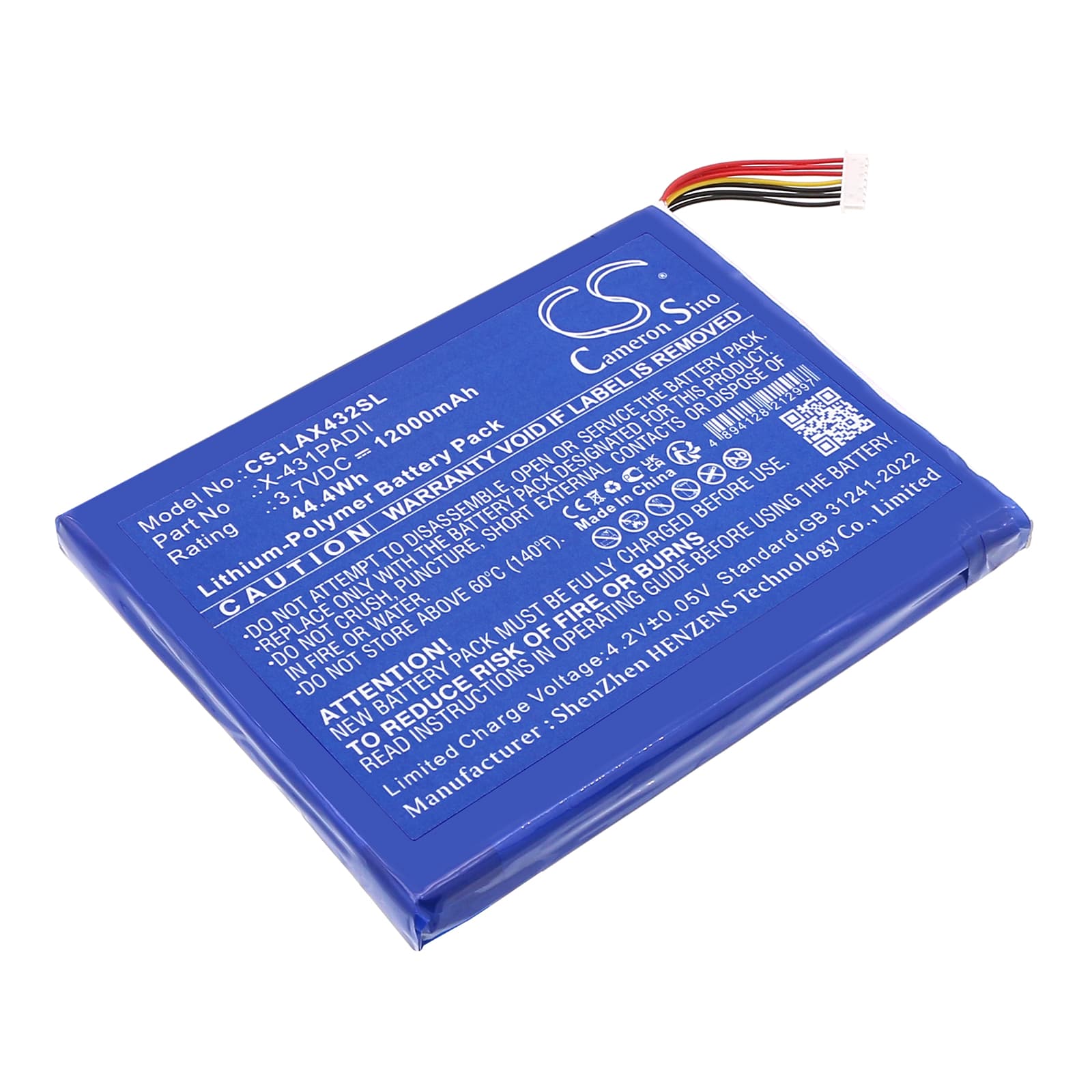

Launch X431 Pad 2 — 3.7V Li-Polymer Replacement Battery (X-431PADII)
This 3.7V, 12000mAh Li-Polymer battery is a direct replacement for the Launch X431 Pad 2 and X431 Pad II diagnostic tablets. It fits technicians who rely on this unit for live vehicle data, module coding, and system-wide diagnostic scans. Capacity figure is taken from the product data — 44.4Wh total energy.
- X431 Pad 2 and Pad II fitment: Both tablet variants share the same battery bay dimensions, connector pinout, and BMS handshake protocol — 111.40 × 86.20 × 10.00mm footprint with matched cell chemistry so the tablet's charge controller accepts the pack without fault codes.
- Bench tested on actual hardware: We ran this pack through charge cycles on the X431 Pad 2 and confirmed the BMS reports accurate state-of-charge to the tablet's battery gauge. Cell balancing remained stable across full charge and discharge cycles with no thermal events.
- Data export before swap: Export all saved vehicle profiles and session logs before removing the old battery — vehicle data on the X431 Pad 2 sits in RAM segments that lose power the moment the battery is disconnected, and that data does not recover after reconnection.
Why the X431 Pad 2 refuses to boot after a battery swap
Li-Polymer cells ship in storage charge — typically 30–50% — which can fall below the X431 Pad 2's minimum boot voltage threshold if the pack has been sitting in a warehouse. The tablet's firmware requires the battery to report above a set voltage floor before it releases the power rail to the main board. Plugging the tablet into the OEM charger for 20–30 minutes before attempting power-on resolves this in almost every case. If the screen still shows nothing, confirm the charger LED is active, indicating the BMS has accepted the charge current.
Wireless link dropping mid-diagnostic session
The X431 Pad 2's Wi-Fi and Bluetooth modules draw additional current spikes during active VCI communication, and a degraded or partially charged battery causes momentary voltage sag that drops the wireless link. This appears as a mid-session disconnection from the vehicle interface even when the battery indicator still reads 20–30%. After fitting the new pack, allow a full charge to 4.2V per cell before running extended diagnostic sessions that depend on continuous wireless communication. Reconnecting the VCI dongle and restarting the session from the tablet's connection menu restores the link without needing a full reboot.
