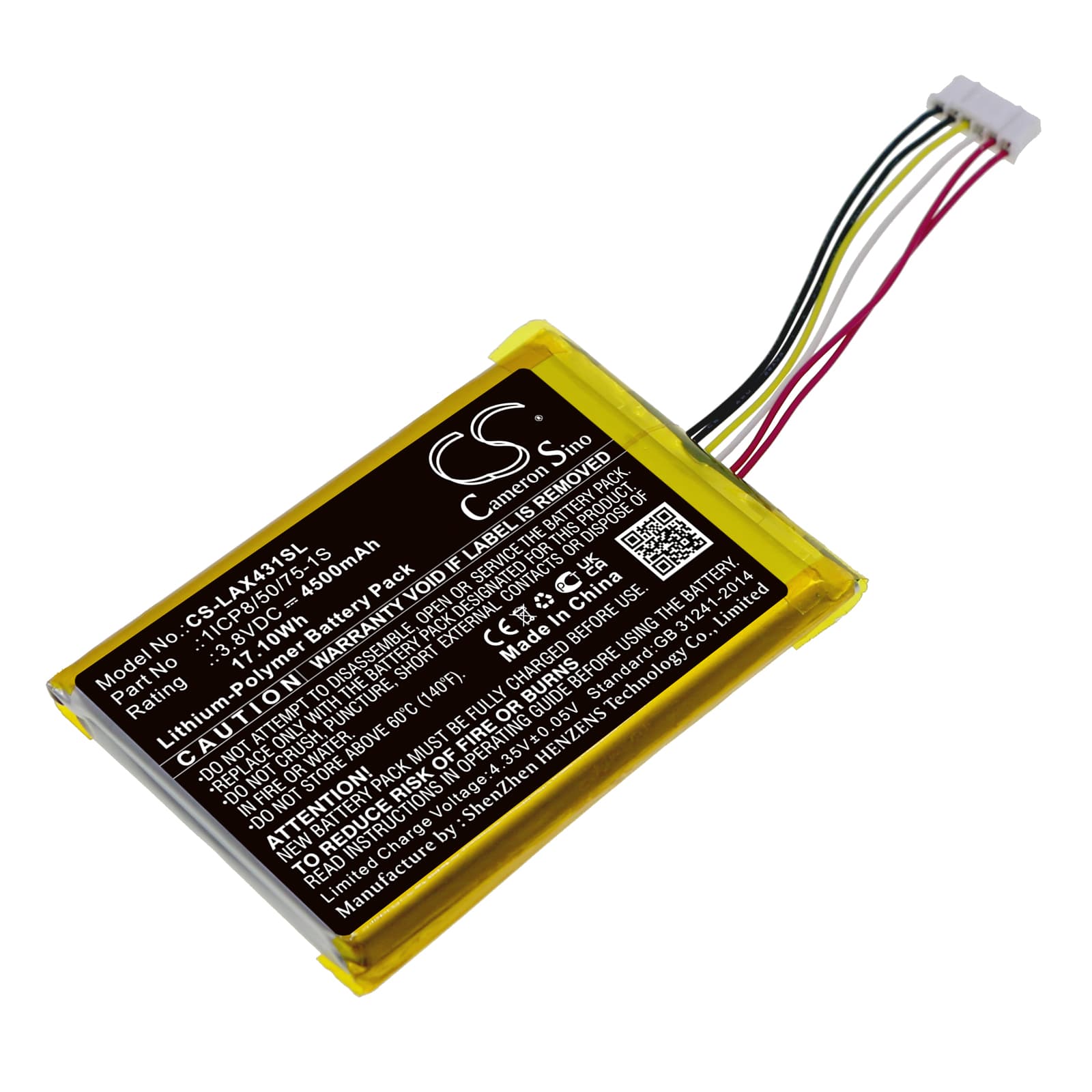

Launch X431 Pro Mini V3.0 — 3.8V Li-Polymer Replacement Battery (1ICP8/50/75-1S)
This 3.8V 4500mAh Li-Polymer battery replaces part number 1ICP8/50/75-1S in the Launch X431 Pro Mini V3.0 automotive diagnostic scanner. It restores full power to a tool used for OBD scanning, fault code reading, and vehicle system diagnostics. Capacity is 17.1Wh, matching the original cell specification.
- X431 Pro Mini V3.0 fit: The V3.0 uses a flat Li-Polymer pouch cell at 3.8V nominal. The BMS on this unit monitors cell voltage and temperature before allowing the device to boot — swapping in a cell at the correct voltage rating keeps the BMS handshake intact and prevents boot rejection.
- Bench tested on actual hardware: We ran charge and discharge cycles on this cell and confirmed the BMS accepted the replacement without error flags. Voltage held within spec across the full cycle, and the protection circuit tripped correctly at low-cell threshold.
- Pre-swap data export on the X431 Pro Mini V3.0: Vehicle profiles and session logs on the X431 Pro Mini V3.0 are held in RAM powered by the main battery. Pull all saved vehicle data to the Launch cloud account or a connected PC before removing the battery — cutting power wipes anything not backed up externally.
Why the X431 Pro Mini V3.0 refuses to boot after a battery swap
The X431 Pro Mini V3.0 runs a boot-voltage check before the OS loads. If the replacement cell ships partially discharged — common with Li-Polymer in transit — the BMS sees voltage below the boot threshold and blocks startup entirely. The screen stays black, which looks like a dead battery or a failed swap. Plug the scanner into its charger for at least 30 minutes before pressing the power button, then attempt boot again.
Wireless OBD connection dropping mid-diagnostic session
The X431 Pro Mini V3.0 uses a wireless link to the vehicle VCI — either Bluetooth or Wi-Fi depending on the adapter in use. When battery cell voltage sags under the current draw of the radio and active display together, the wireless stack resets to protect the processor, cutting the live session. This happens before the on-screen battery indicator shows critical. If sessions are dropping repeatedly at what looks like 30–40% charge, the original cell has degraded past useful capacity and needs replacement. After fitting the new cell, charge to full before running a wireless session.
