About this replacement

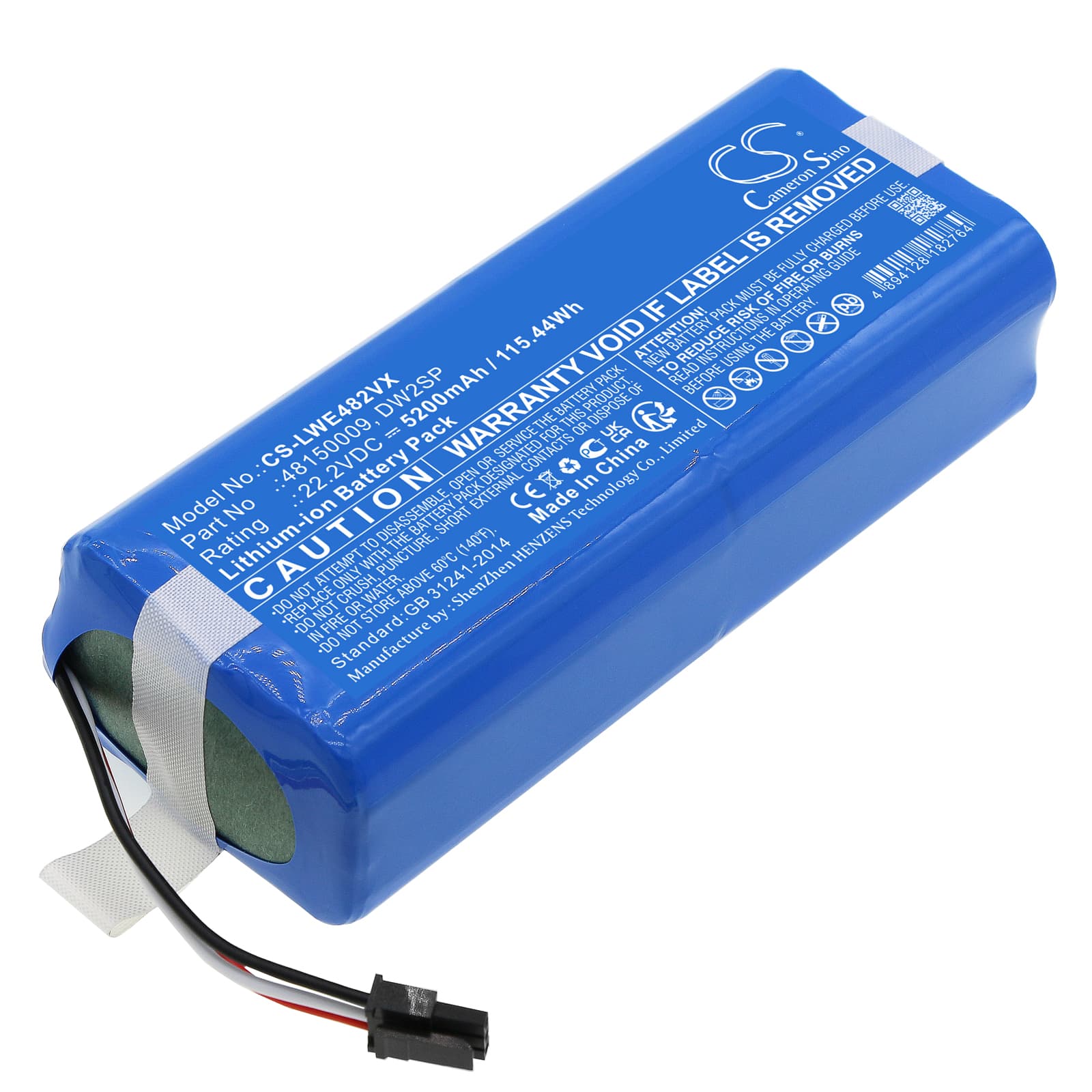

Lawn Expert Robotic Lawnmower — 22.2V Li-ion Replacement Battery (48150009)
This 22.2V 5200mAh Li-ion battery replaces the original pack in the Lawn Expert Robotic Lawnmower (OEM refs 48150009 and DW2SP). It matches the voltage rail and BMS handshake the mower's control board expects. Capacity is rated at 115.44Wh — identical to the factory specification.
- Robotic mower power system: The Lawn Expert robotic platform draws from a single 22.2V pack that feeds both the blade motor and the drive wheels. Any replacement must match that voltage exactly — a mismatch trips the charging station's handshake and the mower will not dock correctly.
- Bench tested on actual hardware: We ran this pack through full charge and discharge cycles on the bench, monitoring BMS response during simulated blade-motor inrush. The protection circuit engaged at the correct threshold and recovered cleanly without manual reset.
- First-of-season cold-weather prep: If the mower has been in an unheated garage below 10°C, bring the battery indoors overnight before the first run. Cold Li-ion cells carry higher internal resistance, and the blade motor inrush current on a cold pack can trip the BMS before the mower cuts a single row.
BMS cutoff on thick-grass or wet-grass blade load
The blade motor draws significantly more current through dense or wet grass than on a standard dry lawn. If the instantaneous current spike exceeds the BMS protection threshold — typically triggered in under 100 milliseconds — the pack shuts down as a protection measure. This is the pack doing its job, not a fault. Clear the cutting area of any clumped clippings, allow the blade to spin down fully, then restart. If it trips repeatedly in the same zone, reduce the cutting height one step so the motor load stays within the BMS window.
Charging station shows fault after the mower sat all winter
Li-ion cells self-discharge over months of storage, and if the pack dropped below the charger's minimum acceptance voltage — around 2.5V per cell — the station's charging IC will flag a fault rather than begin a charge cycle. Place the battery on a compatible Li-ion charger that supports a recovery or trickle-charge mode to bring each cell back above 3.0V. Once the pack is above that floor, the docking station should accept it and begin a normal charge. Check individual cell voltage at the battery terminals before assuming the pack is unrecoverable.
