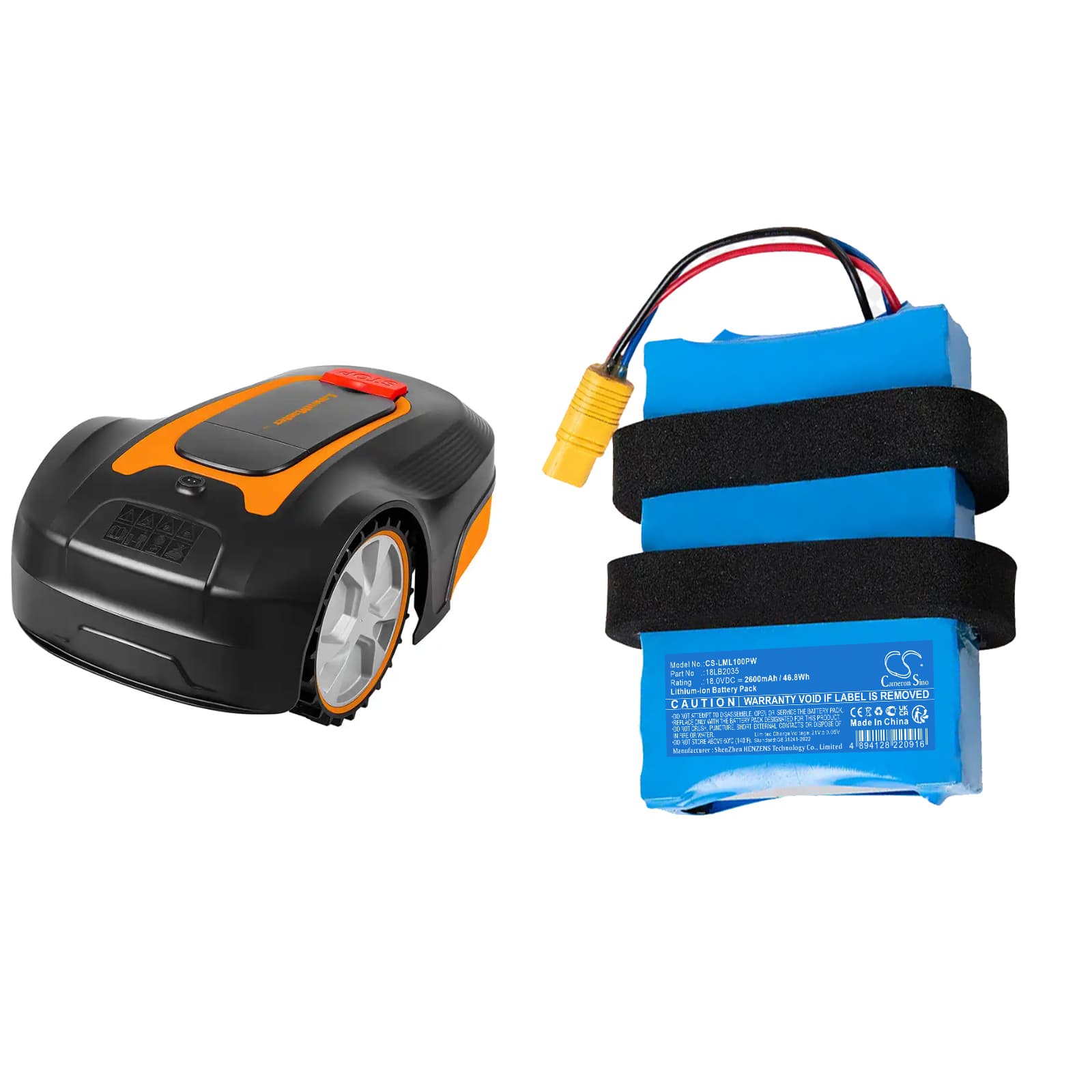

LawnMaster L10 / L12 — 18V Li-ion Replacement Battery (18LB2035)
This is an 18V 2600mAh Li-ion replacement battery for the LawnMaster L10 and L12 cordless lawn mowers. It replaces OEM part numbers 18LB2035 and 631001122. Voltage, connector, and BMS handshake match the original pack.
- L10 and L12 compatibility: Both models run the same 18V rail, share the same battery connector housing, and use the same BMS communication protocol — one battery fits either mower without modification.
- Bench tested on actual hardware: We ran this pack through simulated blade-motor inrush at startup. The BMS held through normal start cycles and tripped correctly under sustained over-current, then reset cleanly after the load was removed.
- Seasonal storage tip: Before putting the mower away for winter, charge the battery to around 50–60% — not full. A fully charged Li-ion pack sitting unused for several months degrades faster than one stored at partial charge.
BMS cutoff on thick-grass and wet-grass blade load
The blade motor on the L10 and L12 draws significantly more current through dense or wet grass than it does on a dry, maintained lawn. If the current spike exceeds the BMS threshold — typically triggered in one to two seconds of sustained overload — the pack shuts down to protect the cells. This is not a battery fault; it is the protection circuit doing its job. Let the mower sit for five minutes before restarting, and approach thick patches at a slower walking pace to keep the motor load within BMS limits.
Charger showing a fault light after the mower sat all winter
Li-ion cells self-discharge slowly during storage. After several months in a cold garage, the pack voltage can drop below the charger's acceptance threshold — typically around 12.5V on an 18V pack — causing the charger to show a fault or refuse to start. Some chargers have a recovery or trickle mode; activate it and leave the pack connected for 20–30 minutes. If yours does not, a brief charge from a compatible 18V charger set to recovery mode can bring the cell voltage back above the acceptance threshold, after which normal charging resumes.
