About this replacement

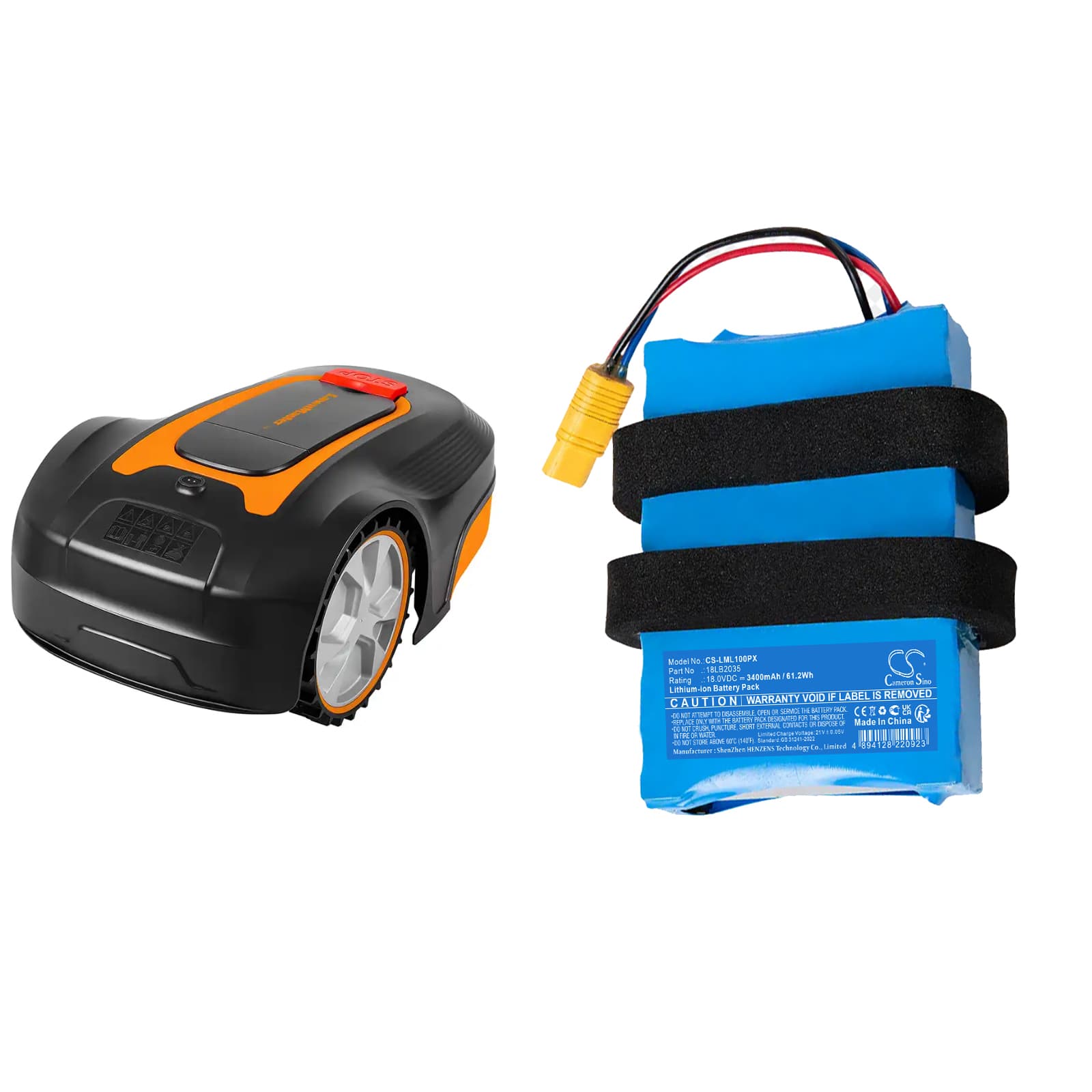

LawnMaster L10 / L12 — 18V Li-ion Replacement Battery (18LB2035)
This is an 18V 3400mAh lithium-ion battery for the LawnMaster L10 and L12 cordless lawn mowers. It replaces OEM part numbers 18LB2035 and 631001122. Swap it in when your original pack no longer drives the blade through a full mow.
- L10 and L12 compatibility: Both models run the same 18V platform with identical battery connectors and BMS handshake requirements. One pack covers either machine — no wiring differences between the two.
- Bench tested on actual hardware: We ran this pack through blade-start inrush cycles on the L10 platform. The BMS handled repeated high-current draw without nuisance trips under normal load conditions across full charge-to-cutoff cycles.
- Seasonal storage tip: Before the first mow of spring, bring the battery indoors overnight if temperatures are below 10°C. Cold Li-ion cells carry higher internal resistance, and the blade motor's inrush current can trip the BMS on a pack that hasn't warmed to room temperature.
BMS cutoff on thick grass and wet-grass blade load
The LawnMaster L10 blade motor pulls significantly more current through dense or wet grass than across a dry, short lawn. If the BMS reads a current spike beyond its protection threshold — typically triggered by bog-down resistance on the blade — it cuts output to protect the cells. This isn't a fault with the battery; it's the protection circuit doing its job. Slow your mowing pace through heavy patches and let the motor spin freely before engaging thick sections to keep draw within the BMS window.
Charger shows fault light after the mower sat all winter
Li-ion cells self-discharge slowly during storage. After several months in a cold garage, the pack voltage can drop below the charger's minimum acceptance threshold — typically around 10–12V for an 18V pack — and the charger refuses to begin a charge cycle. Some chargers have a trickle recovery mode: leave the pack connected for 10–15 minutes and check whether the fault light clears. If the charger offers no recovery mode and the pack reads below 10V on a multimeter, the cells have likely discharged too far for safe recovery and the pack needs replacing.
