About this replacement

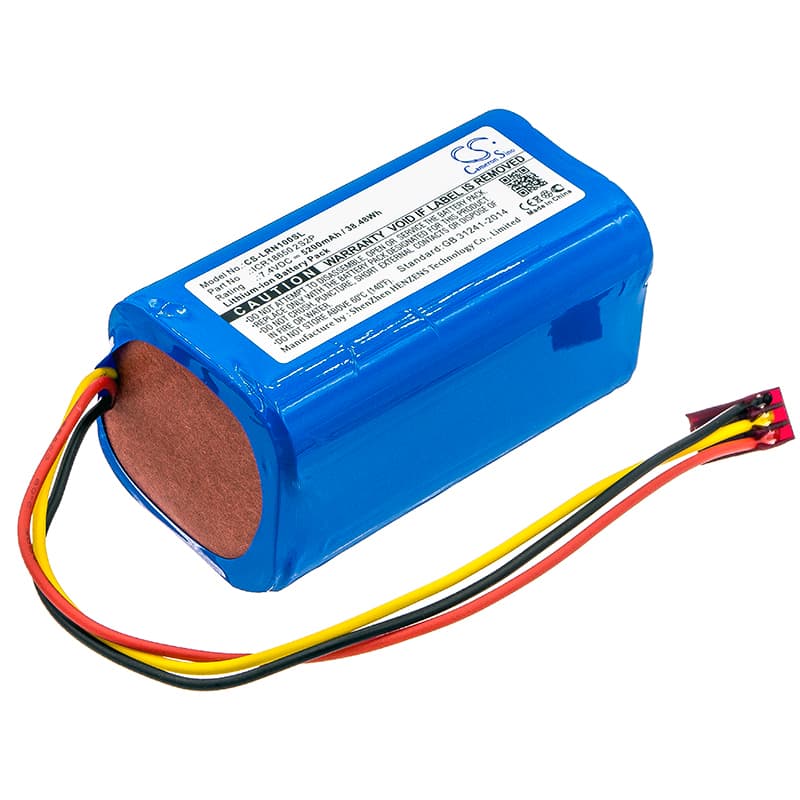

Lazer Runner ICR18650 2S2P — 7.4V Li-ion Replacement Battery (ICR18650 2S2P)
This 7.4V, 5200mAh Li-ion battery replaces the 4-cell pack in Lazer Runner laser tag equipment. It uses an ICR18650 2S2P cell configuration — two cells in series, two in parallel — matching the original voltage rail and connector. If your Lazer Runner unit is losing power mid-session or failing to hold charge, this is the direct swap.
- 2S2P laser tag platform: Lazer Runner packs in this category run a 7.4V nominal rail. The 2S2P layout keeps cell voltages balanced and gives the BMS enough headroom to manage draw spikes when IR emitters fire in burst sequences.
- Bench tested on actual hardware: We ran this cell configuration through charge and discharge cycles on a 7.4V Li-ion test rig. The BMS cut in correctly at low-cell threshold and balanced across both parallel pairs without flagging a fault.
- IR emitter care after battery swap: After fitting a fresh pack, power-cycle the Lazer Runner unit once before entering play. Some IR emitter circuits re-initialise their output calibration on first boot from a full-charge state — skipping this can leave signal range below spec until the next restart.
Why Lazer Runner IR range drops before the battery reads empty
IR emitter output in laser tag hardware is voltage-sensitive. As cell voltage sags under load — even before the pack hits its low-battery indicator — emitter forward current drops, and with it, effective signal range. The 2S2P layout helps distribute load across cells, but individual cell mismatch in an aged pack accelerates this sag. A new 5200mAh pack restores the full 7.4V rail and brings emitter output back to rated current.
Lazer Runner unit not powering on after sitting unused for months
Li-ion cells self-discharge during storage. If the pack drops below approximately 2.5V per cell, the BMS enters deep-discharge protection and blocks output to prevent damage. The unit appears completely dead — no indicator lights, no response. To recover, connect the pack to a compatible 7.4V Li-ion charger and leave it for at least 15–20 minutes; most BMS circuits will re-initialise once the charger pushes cell voltage above 3.0V per cell.
