About this replacement

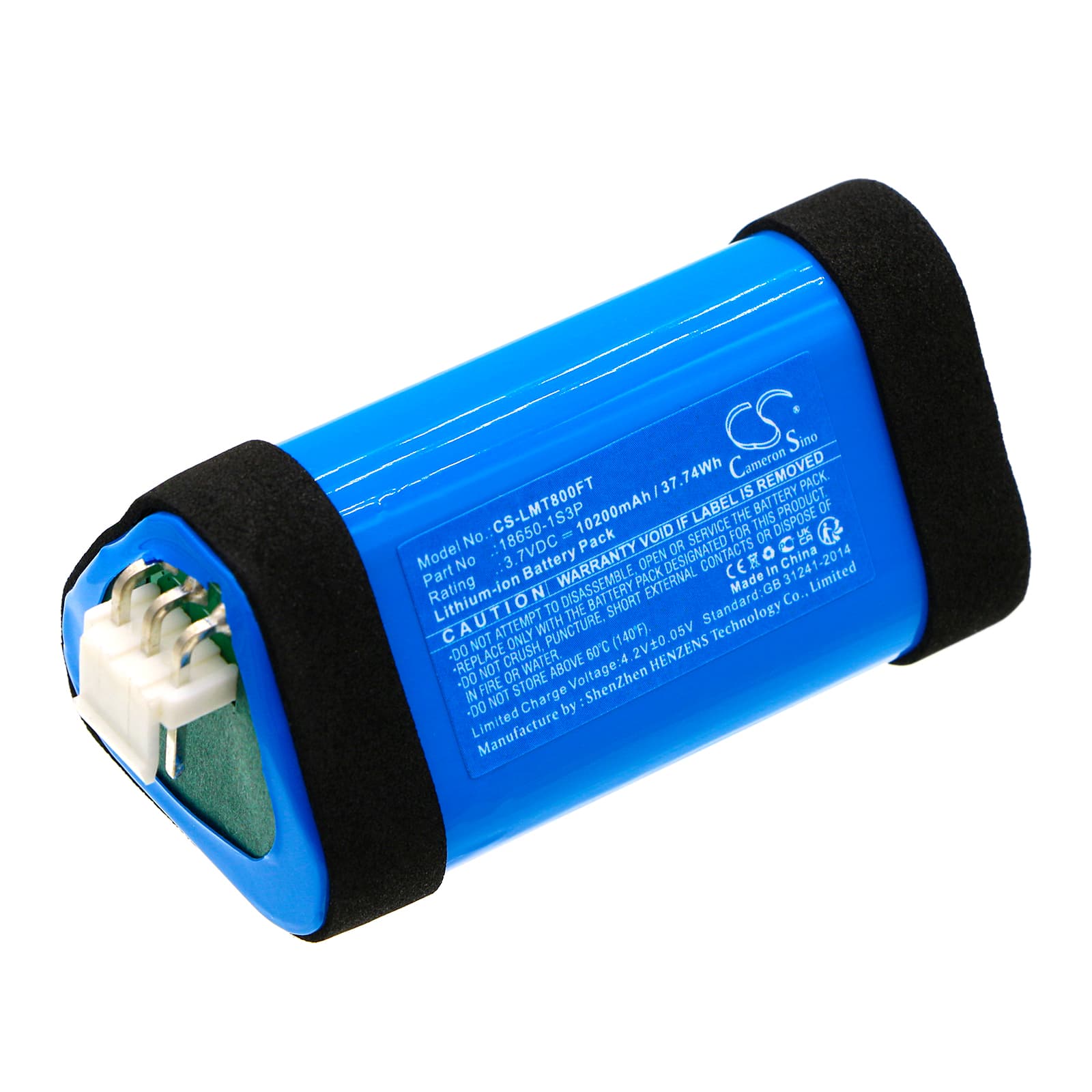

Ledlenser MT18 — 3.7V Li-ion Replacement Battery (18650-1S3P)
This is a 3.7V 10200mAh Li-ion battery pack built to fit the Ledlenser MT18 flashlight. The 1S3P cell configuration matches the MT18's original pack geometry and connector. It restores full output across all power modes when the original pack no longer holds charge.
- MT18 pack compatibility: The MT18 uses a single 1S3P 18650 pack — three cells in parallel at 3.7V. This configuration supplies the high current the MT18's driver demands in turbo mode without triggering BMS overcurrent cutoff. The connector and housing dimensions match the MT18's battery bay.
- Bench tested on actual hardware: We ran this pack through full charge and discharge cycles on the MT18 driver. The BMS handled turbo-mode current draw without tripping, and all three parallel cells balanced correctly across the cycle.
- Multi-cell replacement rule: This pack contains three 18650 cells wired in parallel. Never mix this new pack with a partially depleted original — mismatched state-of-charge across parallel cells forces current back into the weaker pack, accelerating cell degradation under high-draw conditions.
Why the MT18 steps down from turbo before the battery indicator drops
The MT18's driver monitors cell voltage in real time. In turbo mode, current draw is high enough that internal cell resistance causes a voltage sag even when the pack still holds significant charge. Once cell voltage sags below the driver's brownout threshold — typically around 3.0V under load — the driver steps output down to protect both the LEDs and the cells. This is normal behaviour, not a fault. Switching to a high-capacity pack like the 10200mAh 1S3P reduces that sag because lower internal resistance across three parallel cells maintains voltage under load.
MT18 cycling through modes rapidly near end of charge
When the pack voltage drops close to the driver's cutoff point, the driver may briefly restore power each time it cuts — causing the light to flicker or cycle through modes rapidly. This is a brownout loop, not a switch fault. The immediate fix is to drop to a lower output mode, which reduces current draw and keeps voltage above the cutoff threshold. If this happens early in a charge cycle, check cell voltage with a multimeter — a healthy fully-charged 1S3P pack should read 4.1–4.2V at rest.
