About this replacement

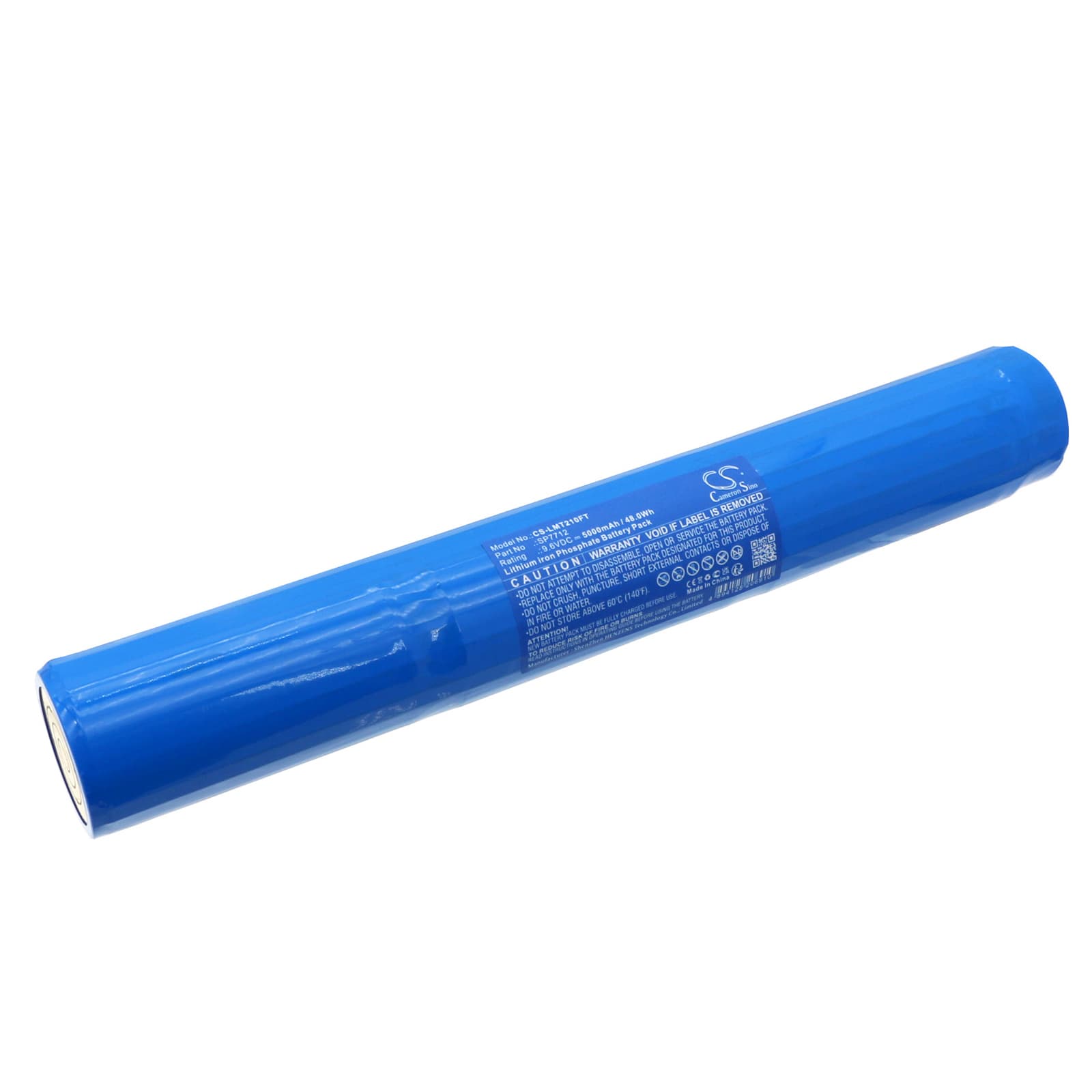

Ledlenser X21R.2 — 9.6V LiFePO4 Replacement Battery (SP7712)
This is a 9.6V LiFePO4 replacement battery rated at 5000mAh (48Wh) for the Ledlenser X21R.2 rechargeable flashlight. It replaces OEM part SP7712 and restores full output to the X21R.2's LED driver circuit. LiFePO4 chemistry holds a flatter discharge curve than standard lithium-ion, which keeps the driver operating in its target voltage window longer.
- X21R.2 platform fit: The X21R.2 uses a multi-cell LiFePO4 pack at 9.6V nominal — a voltage rail specific to this light's driver board. Substituting a different chemistry or voltage causes the driver to operate outside its regulation range, which trips brownout protection and steps down output prematurely.
- Bench tested on actual hardware: We cycled this pack through the X21R.2's charge circuit and confirmed the BMS accepted full charge termination correctly. The protection circuit tripped at the expected low-voltage cutoff under high-current draw in turbo mode, with no false shutdowns on standard output.
- Multi-cell replacement rule: The X21R.2 pack is a matched multi-cell assembly. If you source a replacement, do not mix it with any remaining original cells from a degraded pack. Mismatched cells under high-draw turbo mode cause the weaker cell to collapse first, creating an imbalance the BMS cannot correct mid-draw.
Why the X21R.2 steps down output before the battery indicator reads low
The X21R.2 driver uses brownout protection to reduce output when pack voltage sags under load — even when the indicator still shows charge remaining. LiFePO4 cells have a flat discharge curve, so the indicator reads full until voltage drops sharply near the end. Under turbo mode, the high current draw causes a momentary sag that triggers the driver to step down before the cell is truly depleted. Switching to a lower output mode lets the pack recover voltage and resume normal regulated output.
Turbo mode runtime significantly shorter than standard — what's happening
Turbo mode on the X21R.2 draws five to ten times the current of standard mode, pulling the 9.6V pack into voltage sag far faster. The driver's thermal and brownout protection will step down output once the pack can no longer sustain the required current delivery. A degraded original battery accelerates this effect because aged cells have higher internal resistance, which amplifies voltage sag under the same load. If turbo runtime dropped sharply over time, internal resistance on the original pack has likely risen — this replacement pack restores rated capacity and lower internal resistance.
