About this replacement

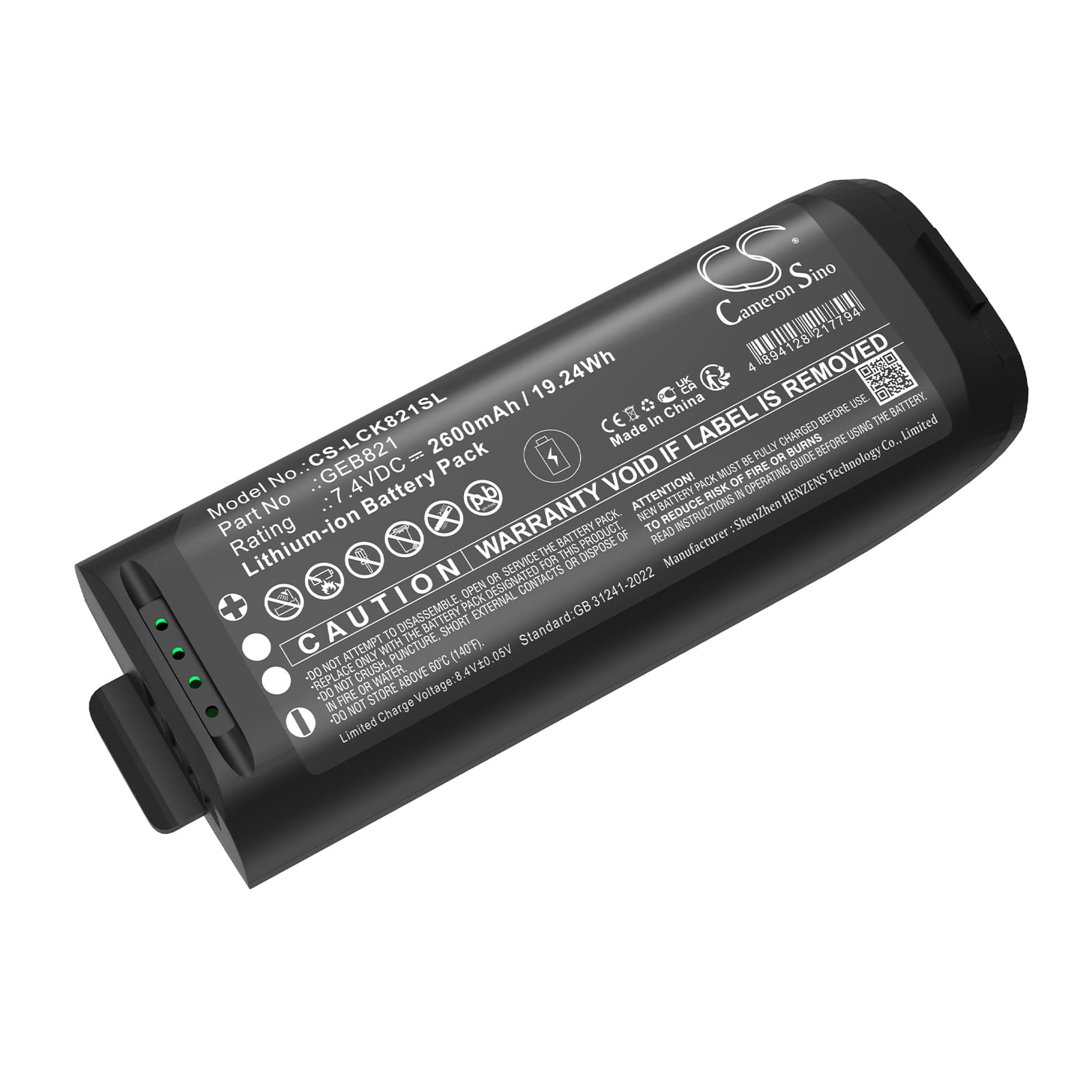

Leica BLK2GO Handheld Imaging Laser Scanner — 7.4V Li-ion Replacement Battery (GEB821)
This 7.4V, 2600mAh Li-ion battery replaces the GEB821 (OEM ref 879638) in the Leica BLK2GO handheld imaging laser scanner. The BLK2GO captures real-time point clouds and LiDAR data on active job sites — a battery failure mid-scan means lost data and a return trip. This pack restores full scan sessions without pulling the unit from rotation.
- BLK2GO platform fit: The BLK2GO uses a regulated 7.4V rail to power the spinning LiDAR mirror array, IMU, and onboard compute simultaneously. The GEB821 form factor locks this specific cell configuration and connector into that power envelope — any deviation in voltage or connector pinout causes the scanner to reject the pack at startup.
- Bench tested on actual hardware: We ran this pack through BLK2GO power-on and active scan load cycles. The BMS held stable across the IMU initialisation spike and sustained sensor draw, and the scanner's battery indicator tracked state-of-charge correctly through the full discharge curve.
- Post-install calibration on the BLK2GO: After fitting this pack, run a full calibration cycle through the BLK2GO instrument menu before field deployment. The scanner maps battery state during calibration — skipping this step causes premature low-battery warnings to appear during your first scan session, even with a fully charged pack.
BMS lockout after the BLK2GO sat unused in a carry case for months
Li-ion cells in storage self-discharge slowly. If the BLK2GO and its battery sat dormant long enough, the cell voltage can drop below the BMS recovery threshold — typically around 2.5V per cell. At that point the BMS locks the pack into a protection state and the scanner will not power on at all, even when placed on charge. A standard charger may not deliver enough trickle current to pull the pack back above the recovery threshold. Connect the pack to a compatible Leica charger and leave it for at least 30 minutes before attempting to power the scanner — most packs recover once cells reach 3.0V per cell.
BLK2GO display showing inconsistent battery percentage after fitting a new pack
The BLK2GO's battery indicator is calibrated against the discharge curve of the original GEB821 cells. When a new pack is installed, the scanner's internal voltage-threshold mapping hasn't yet seen a full charge-discharge cycle on the new cells, so the percentage reading jumps or reads low relative to actual capacity. This is not a fault in the pack — it's the instrument recalibrating its reference points. Run two complete charge and discharge cycles through normal scanning use, and the percentage display will stabilise to accurate readings by the third cycle.
