About this replacement

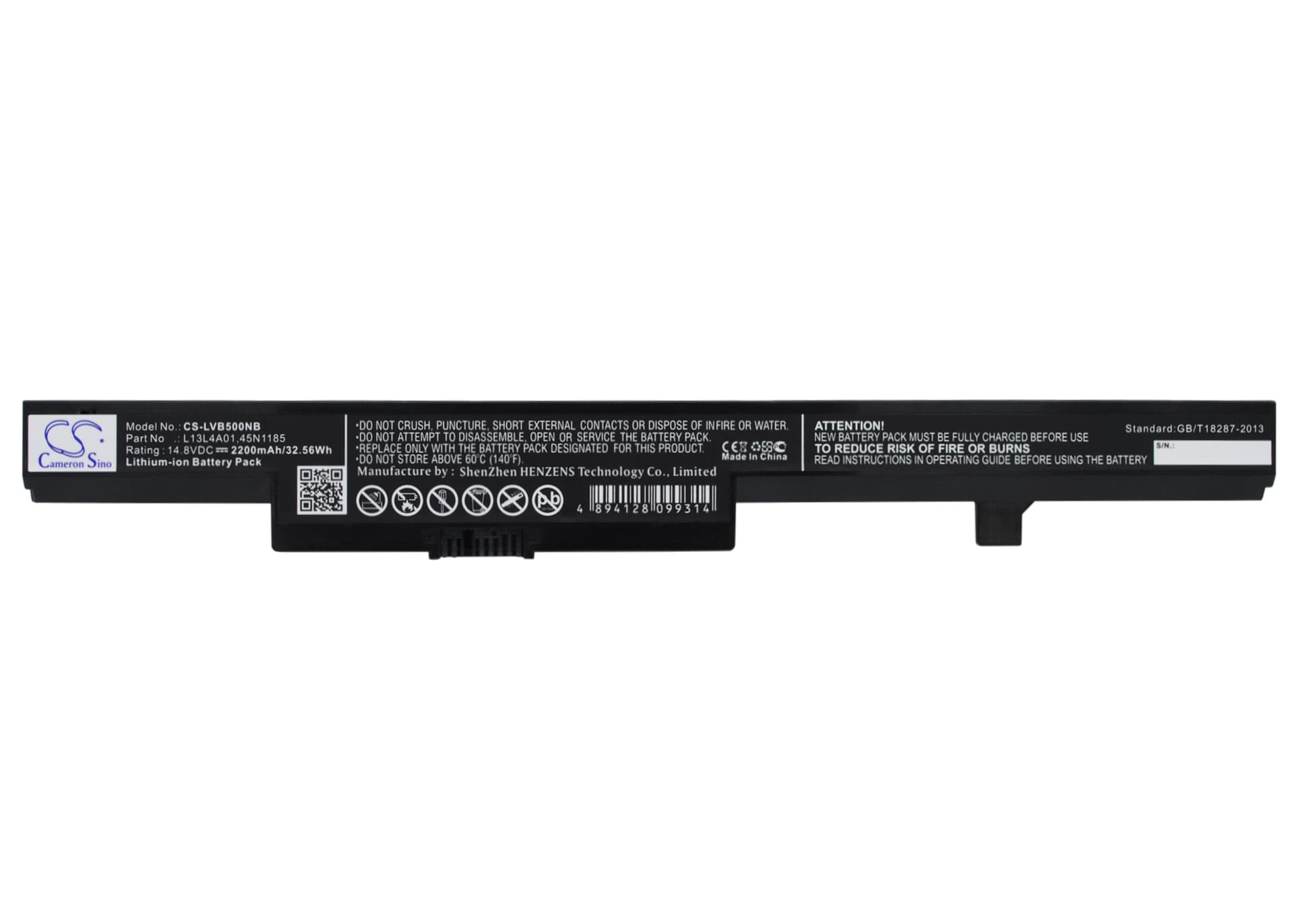

Lenovo B40 Series — 14.8V Li-ion Replacement Battery (L13L4A01)
This is a 14.8V, 2200mAh (32.56Wh) Li-ion replacement battery for the Lenovo B40 notebook laptop. It fits the B40-30, B40-45, and B40-70 among others. Install it when the original cell no longer holds a charge or the laptop can't run away from the wall outlet.
- B40 series compatibility: The B40-30, B40-45, and B40-70 all share the same 14.8V four-cell battery rail, connector pinout, and BMS handshake protocol. That's why one cell covers this entire family — the EEPROM profile and communication bus are identical across variants.
- Bench tested on actual hardware: We ran this cell through charge, discharge, and BMS communication handshake on B40-series hardware. The EEPROM data loaded correctly, charge current responded as expected, and the protection circuit tripped at the correct low-voltage threshold.
- First-cycle calibration after install: After fitting this cell, run one full discharge to hibernate-cutoff, then charge uninterrupted to 100%. This resets the BIOS battery learn cycle and clears the inaccurate health warning that appears after every cell swap on Lenovo systems.
BIOS reporting battery health as poor immediately after replacement
Lenovo's BIOS reads health data stored in the battery's EEPROM, not the live cell voltage. When a new cell goes in, the EEPROM cycle count and capacity registers don't match what the BIOS expects from a "healthy" pack. The system flags the mismatch as degraded health even though the cell is new. One full discharge-to-hibernate followed by an uninterrupted charge to 100% lets the BIOS rewrite its baseline values against the new cell's actual parameters.
Laptop shutting down at 20–30% charge shown on screen
This happens when the fuel gauge IC still has calibration data from the old, worn cell. The percentage shown on screen is calculated against the old cell's known capacity curve, so it loses sync with the new cell's actual voltage. Under full CPU and display load, the new cell hits a voltage point the system treats as empty — even though the gauge still shows 20–30%. Two or three full discharge-and-charge cycles recalibrates the IC against the new cell. After calibration, the gauge should read accurately down to approximately 11.1V before the system hibernates.
