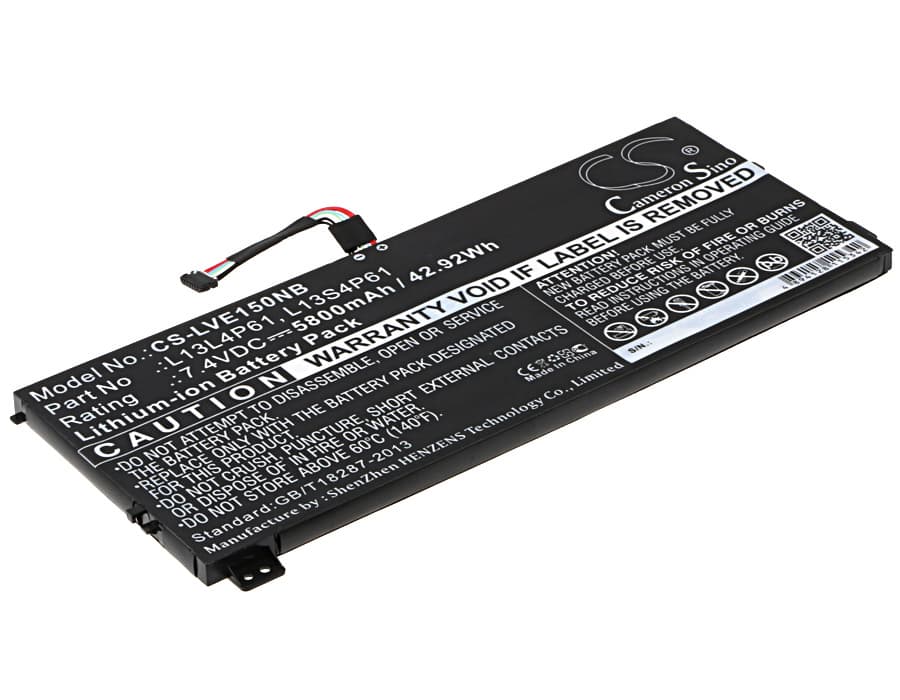

Lenovo Edge 15 / Flex 2 Pro-15 — 7.4V Li-ion Replacement Battery (L13L4P61)
This is a 7.4V, 5800mAh (42.92Wh) Li-ion replacement battery for the Lenovo ThinkPad Edge 15 and Flex 2 Pro-15 notebook series. It fits models including Edge 15 80H1 and Edge 15 80K9. OEM part numbers L13L4P61, L13S4P61, L13M4P61, and 2ICP3/86/94-2 all apply to this cell configuration.
- Edge 15 and Flex 2 Pro-15 compatibility: Both the Edge 15 and Flex 2 Pro-15 lines share the same 7.4V two-cell architecture, connector pinout, and BMS handshake protocol — so one cell covers both platforms without modification.
- Bench tested on actual hardware: We ran this cell on an Edge 15 80H1 unit. The BMS completed its handshake within two charge cycles, and the EC correctly reported cell voltage and state-of-charge without fault codes.
- Post-install discharge cycle on Lenovo Edge 15: After fitting this battery, run one full discharge to hibernate cutoff, then charge uninterrupted to 100%. This resets the BIOS battery learn cycle and clears the inaccurate health warning that appears after every cell swap on this platform.
BIOS reporting poor battery health immediately after swap on Edge 15
The Edge 15 BIOS reads health data stored in the old cell's EEPROM and compares it against the new cell's reported parameters at first boot. Because the new cell presents a fresh EEPROM with no cycle history, the BIOS interprets the mismatch as a fault. This is not a defective cell — it is a calibration gap. Run one full discharge-to-hibernate followed by an uninterrupted charge to 100%, and the BIOS learn cycle will overwrite the stale EEPROM baseline with accurate data from the new cell.
Laptop shuts down at 20–30% shown after installing replacement cell
This happens because the fuel gauge IC is still using the old cell's discharge curve to predict remaining capacity. The new cell hits a voltage cliff under combined CPU and display load at a different point than the old cell did. The fuel gauge reads 20–30% on the old curve, but the actual cell voltage has already dropped below the EC's cutoff threshold. Run two to three full discharge and charge cycles — by the third cycle, the fuel gauge IC recalibrates against the new cell's curve and the shutdowns stop.
