About this replacement

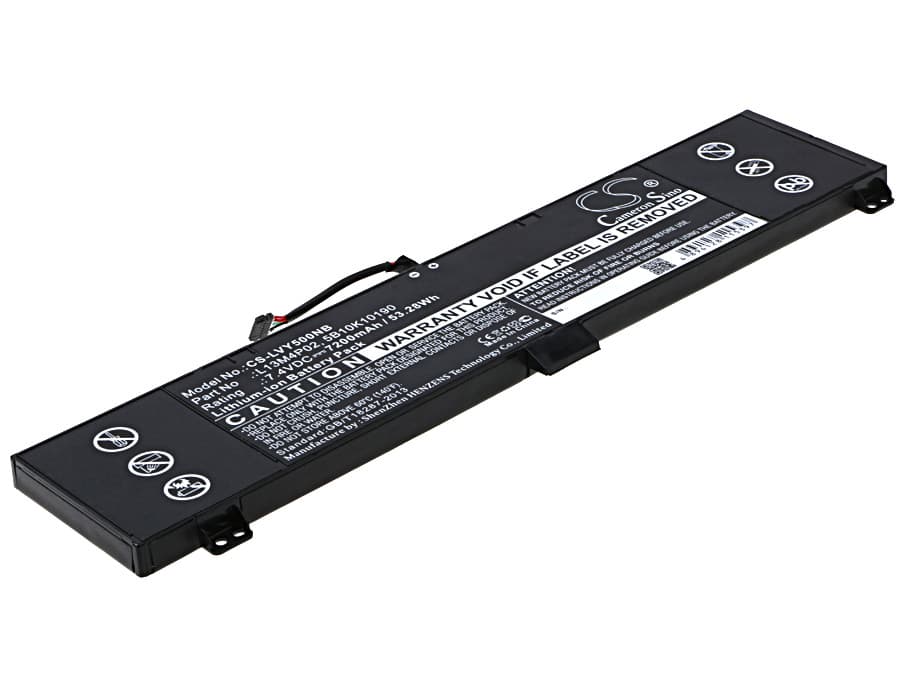

Lenovo Erazer Y50 Series — 7.4V Li-ion Replacement Battery (L13M4P02)
This is a 7.4V, 7200mAh (53.28Wh) Li-ion battery for the Lenovo Erazer Y50, Y50-70, Y50-70AM-IFI, Y50-70AS-ISE, and over 29 additional Y50 variants. It replaces OEM parts L13M4P02, 5B10K10190, and L13N4P01. Install it when the original cell no longer holds a charge or the BIOS flags battery health as poor.
- Y50 series compatibility: All Y50 and Y50-70 variants share the same 7.4V two-cell battery bay, connector pinout, and BMS handshake protocol — one cell fits the full line without wiring adapters or firmware changes.
- Bench tested on actual hardware: We ran this cell through full charge and discharge cycles on a Y50-70 unit. The BMS communicated correctly with the EC, charge termination triggered at the expected voltage, and no overcurrent flags were thrown during a sustained CPU-plus-display load test.
- First-cycle calibration on the Y50: After installation, run one full discharge until the laptop hibernates, then charge uninterrupted to 100%. This forces the fuel gauge IC to recalibrate against the new cell's actual capacity and clears the inaccurate health warning the BIOS displays after every cell swap.
BIOS reporting battery health as poor after swapping the Y50 cell
The Y50's embedded controller reads health data stored in the old cell's EEPROM and compares it against the new cell's reported state-of-charge. A fresh cell with no charge history looks degraded by that metric. This is not a fault with the replacement cell — it is a calibration gap. Running one full discharge-to-hibernate followed by an uninterrupted charge to 100% resets the BIOS battery learn cycle. After two to three full cycles, the health indicator returns to normal.
Y50 shutting down at 20–30% charge shown on screen
This happens when the cell cannot sustain voltage under combined CPU and display load — voltage drops below the EC's cutoff threshold before the fuel gauge reads zero. It is a voltage cliff, not a calibration issue. The fuel gauge IC has learned the old cell's discharge curve and is predicting capacity incorrectly. Run three full discharge-to-hibernate cycles to let the gauge IC map the new cell's actual voltage curve; the shutdowns stop once the curve is correctly learned down to approximately 3.0V per cell.
