About this replacement

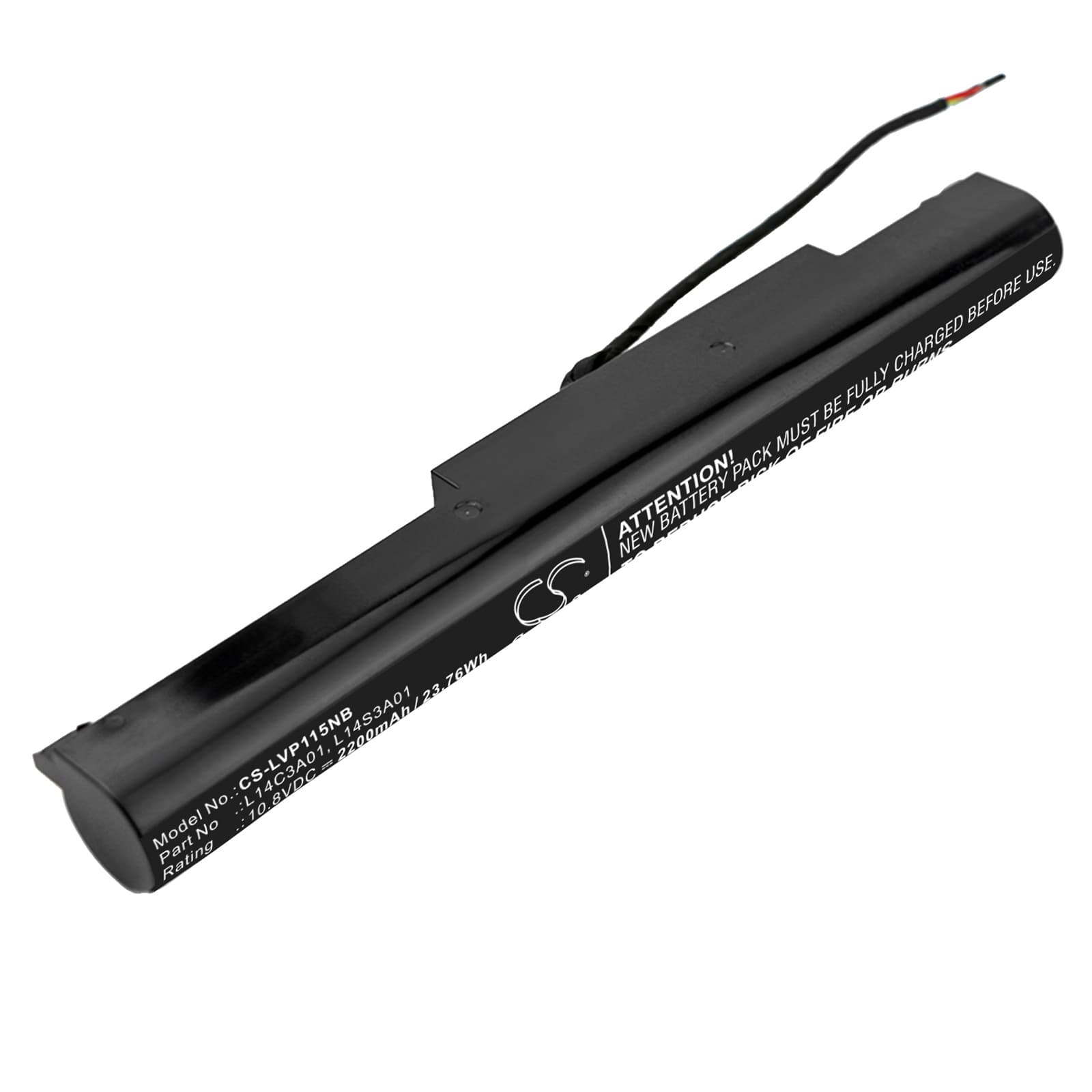

Lenovo IdeaPad 100-15 Series — 10.8V Li-ion Replacement Battery (L14C3A01)
This is a 10.8V, 2200mAh (23.76Wh) Li-ion replacement battery for the Lenovo IdeaPad 100-15 notebook. It fits the IdeaPad 100-15IBY and related 100-15 variants that use the L14C3A01 or L14S3A01 cell. Install it when the original battery no longer holds a charge or is flagged as degraded by Lenovo Vantage or the BIOS.
- IdeaPad 100-15 platform fit: All IdeaPad 100-15IBY variants share the same battery bay dimensions, 10.8V power rail, and three-pin connector wiring. The BMS handshake protocol is identical across this family, so one cell covers the full 100-15 range listed here.
- Bench tested on actual hardware: We ran this cell on an IdeaPad 100-15IBY chassis. The BMS accepted the cell without fault codes, charge current ramped normally from pre-charge to CC to CV, and the protection circuit tripped at the correct low-voltage cutoff under load.
- First-cycle calibration on the IdeaPad 100-15: After installation, run one full discharge to hibernate-cutoff — do not force-shutdown — then charge uninterrupted to 100%. This resets the BIOS battery learn cycle and clears the inaccurate health warning that appears after every cell swap on this platform.
BIOS reporting battery health as poor immediately after replacement
The IdeaPad 100-15 BIOS reads health data stored in the battery's EEPROM, not from live cell measurements. A new cell ships with factory EEPROM values that don't match the host system's charge history, so the BIOS flags it as unknown or degraded. This is not a fault — it clears after one full discharge-to-hibernate and uninterrupted charge cycle. Lenovo Vantage will update its health display once the learn cycle completes and the fuel gauge IC re-syncs with the new cell's capacity baseline.
Laptop shuts down at 20–30% charge shown on screen
This happens when the fuel gauge IC was calibrated against the old, degraded cell. The percentage shown no longer maps correctly to actual cell voltage. Under combined CPU and display load, the cell hits its low-voltage floor while the OS still shows significant charge remaining. Run a full discharge-to-hibernate cycle — without interrupting it — followed by a complete charge to 100%. After two to three full cycles, the fuel gauge IC recalibrates against the new cell and shutdowns at falsely-low percentages stop. If the issue persists past three cycles, check the BIOS battery threshold setting — it should be set to 0% on this platform, not 20%.
