About this replacement

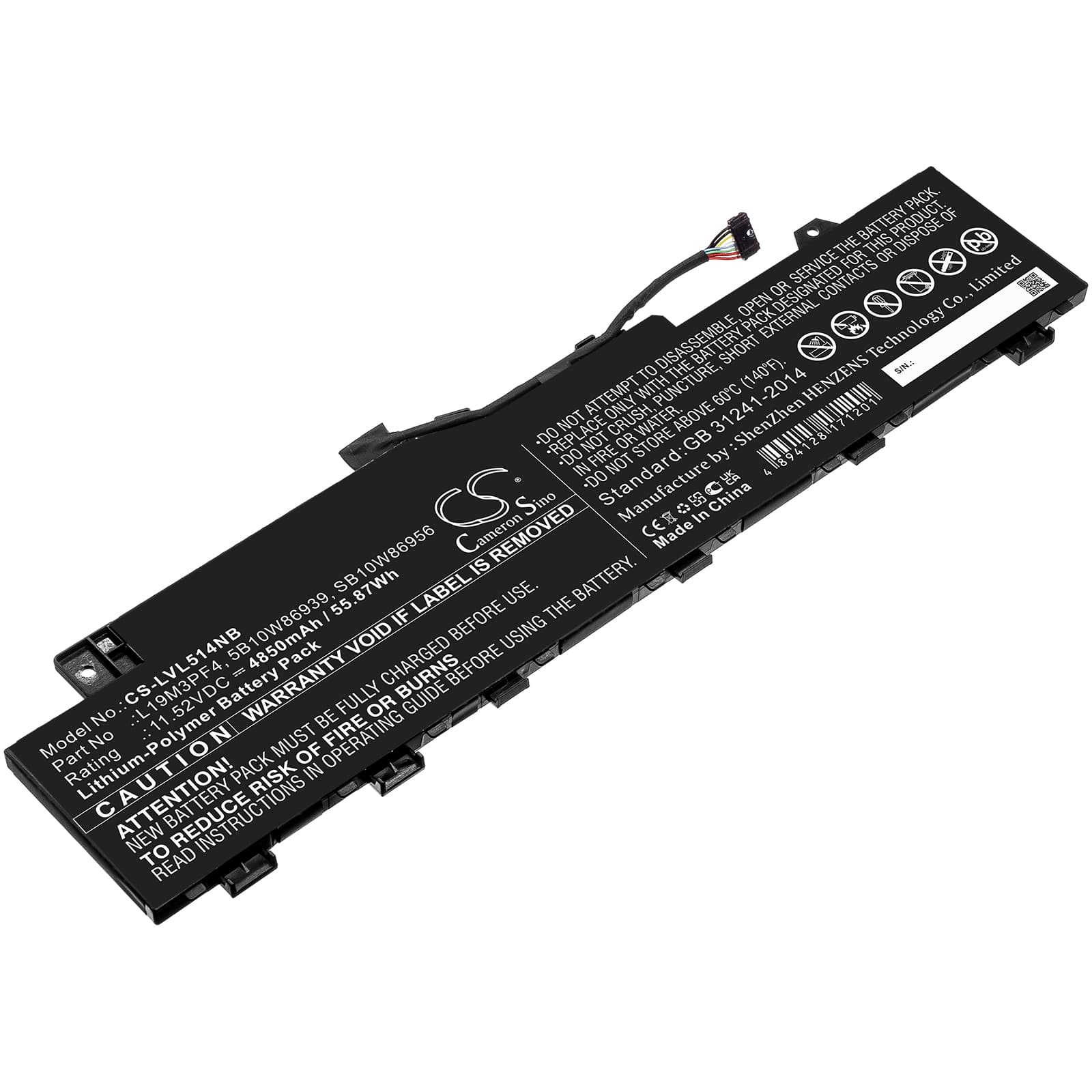

Lenovo IdeaPad 5 14ARE05 — 11.52V Li-Polymer Replacement Battery (L19M3PF4)
This 11.52V, 4850mAh (55.87Wh) Li-Polymer battery replaces the L19M3PF4 cell in the Lenovo IdeaPad 5 14ARE05 and related models including the Ducati 5 82ES000DAU and IdeaPad 5 15ARE05. It fits the 14-inch and 15-inch IdeaPad 5 platform variants sharing the same connector and BMS communication protocol. Dimensions are 293.50 × 76.00 × 6.40mm — match these before installing.
- IdeaPad 5 ARE05 platform compatibility: These variants share a three-cell Li-Polymer configuration with the same 11.52V nominal rail, identical 5-pin BMS connector, and the same EEPROM handshake that Lenovo's BIOS uses to read health data. A mismatch on any of these points causes the laptop to reject the cell entirely.
- Bench tested on actual hardware: We ran this cell on an IdeaPad 5 14ARE05 unit and confirmed the BMS completed the charge cycle to 100%, BIOS recognised the cell, and the fuel gauge IC initialised without error flags on the first boot.
- Post-install calibration for the ARE05: After installing, run one full discharge down to hibernate-cutoff, then charge uninterrupted to 100%. This resets the BIOS battery learn cycle and clears the inaccurate health warning that appears on the first boot after any cell swap on this platform.
BIOS reporting battery health as poor immediately after replacement
The IdeaPad 5 BIOS reads health data stored in the battery's EEPROM, not from live voltage readings. When a new cell arrives, the EEPROM data does not match the learn-cycle history the BIOS built with the old cell — so it flags the battery as degraded. This is not a fault with the replacement cell. Run one full discharge-to-hibernate cycle followed by a full uninterrupted charge to 100%, and the BIOS resets its learn cycle against the new cell's actual capacity curve.
Laptop shuts down abruptly while showing 20–30% charge remaining
This happens when the fuel gauge IC has not yet calibrated against the new cell's voltage curve. Under combined CPU and display load, the cell voltage drops faster than the uncalibrated gauge predicts — the BIOS sees the voltage cliff before the percentage counter reaches zero and forces an immediate shutdown. It is not a faulty cell. Run two to three full discharge-to-hibernate and charge-to-100% cycles to let the fuel gauge IC map the new cell's actual capacity. After calibration, the gauge tracks accurately and the early shutdowns stop.
