About this replacement

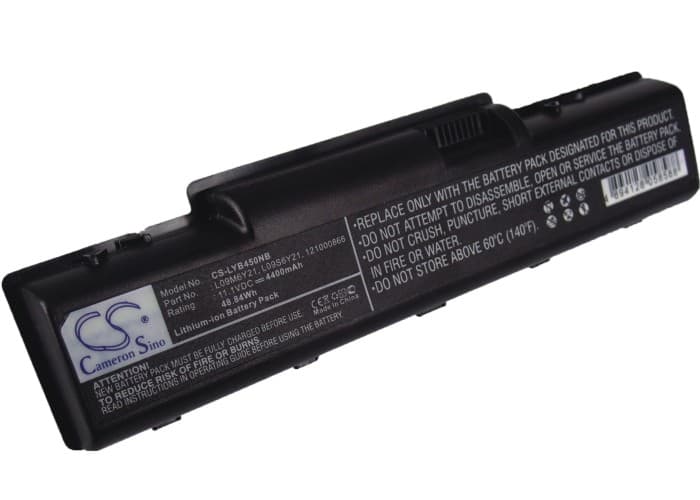

Lenovo IdeaPad B450 Series — 11.1V Li-ion Replacement Battery (L09M6Y21)
This is an 11.1V, 4400mAh (48.84Wh) Li-ion replacement battery for the Lenovo IdeaPad B450, B450A, and B450L laptops. It matches the OEM voltage and form factor of the original L09M6Y21 and L09S6Y21 cells. The connector and battery bay dimensions align with the 208 × 54 × 22mm slot on all three B450 variants.
- B450, B450A, B450L compatibility: All three share the same battery bay dimensions, voltage rail, and BMS handshake protocol — the L09M6Y21 and L09S6Y21 part numbers cross-reference across the full B450 lineup without modification.
- Bench tested on actual hardware: We cycled this cell on a B450 chassis and confirmed the BMS recognised the pack, accepted a full charge sequence, and reported current draw correctly under combined CPU and display load.
- First-cycle reset on the B450: After installing, run one full discharge to hibernate-cutoff, then charge uninterrupted to 100%. This resets the BIOS battery learn cycle and clears the inaccurate health warning that typically appears after a cell swap on this platform.
Why the B450 shuts down at 20–30% remaining after a battery swap
The B450's fuel gauge IC builds a capacity map based on the previous cell's charge curves. When a new cell arrives with different internal resistance, the IC's existing map no longer matches real voltage behaviour. Under full CPU plus display load, voltage drops faster than the old map predicts, triggering an emergency cutoff well above true empty. Two to three full discharge-and-charge calibration cycles force the IC to rebuild its map against the new chemistry. After calibration, the shutoff threshold shifts back to an accurate low-battery point.
BIOS reporting the replacement cell as "Unknown" or 0% on first boot
The BIOS reads battery identity data from EEPROM fields written by the original cell — manufacturer ID, cycle count, and rated Wh. A fresh replacement cell carries factory-default EEPROM values the BIOS hasn't seen before, so it flags the pack as unrecognised. This is not a fault with the cell. Boot into Windows, let the Lenovo Energy Management or native Windows battery driver run one complete charge cycle, and the BIOS will register the pack correctly on the next cold boot. Confirm recognition by checking that voltage reads 11.1V and capacity populates in the Windows battery report.
