Compatible with Lenovo

Lenovo IdeaPad Flex 3 11IGL05 Replacement Battery - Replaces L19C3PF8

$36.77In stock

Why this battery

Fits Lenovo IdeaPad Flex 3 11IGL05 and replaces L19C3PF8, L19M3PF8, SB10X02592, SB10X02595, 5B10X02593, 5B10X02604.
11.52V, 3150mAh Li-Polymer cell delivers 36.29Wh to restore full operating time on this convertible ultrabook.
Connector solders directly to the mainboard slot; no proprietary clips or locking tabs; orientation marked on housing.
We ran full discharge and recharge cycles; the BMS reported nominal voltage under 3A draw with no early cutoff.
After installation, discharge the cell completely to hibernation then charge uninterrupted to 100% to reset the BIOS battery learn cycle.

11.52V3150mAhLi-Polymer

Fits 123 models · Replaces 6 part numbers

Ship from

Ships from Hong Kong Warehouse · Delivery in 28-45 days

$36.77Quantity 1

About this replacement

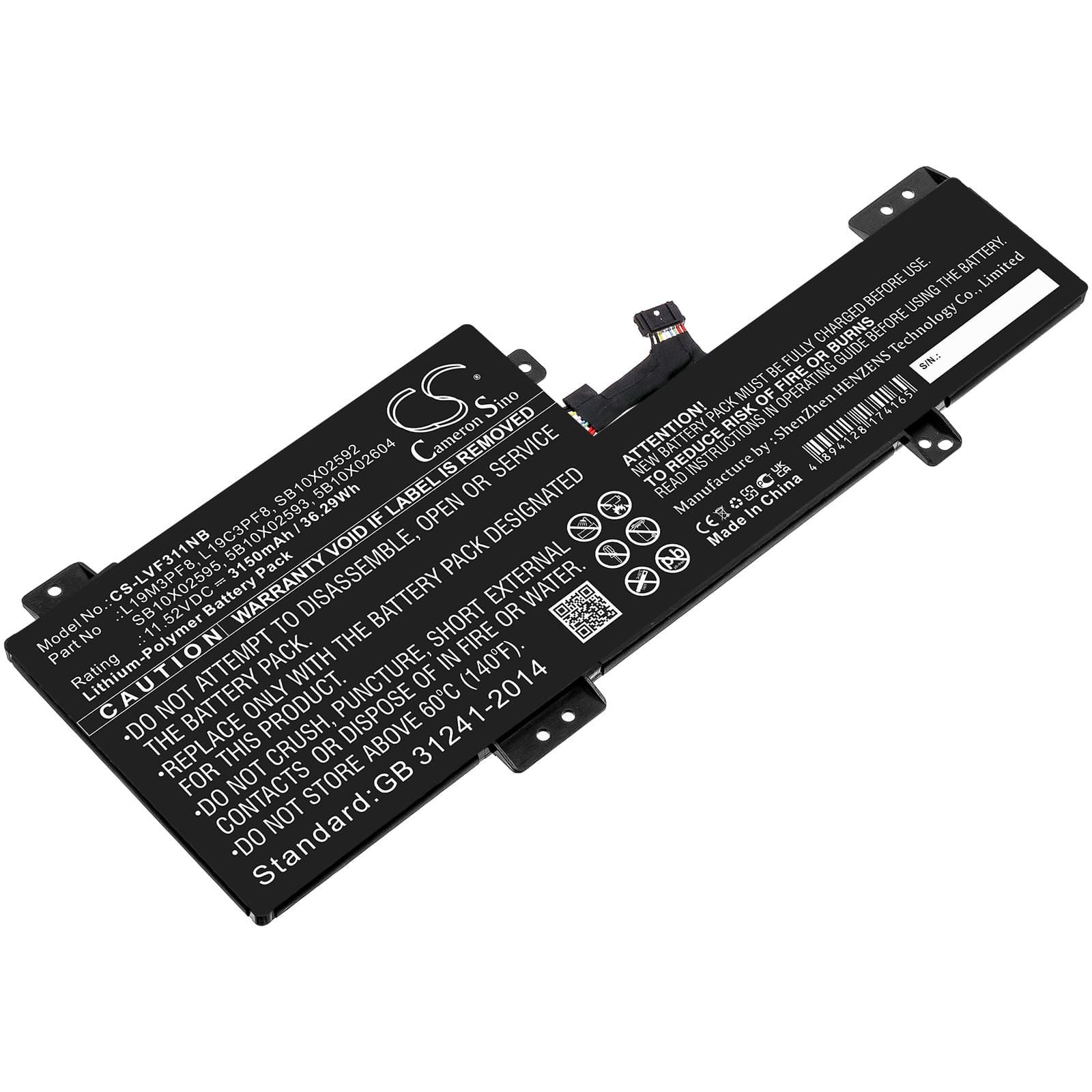

Lenovo IdeaPad Flex 3 11IGL05 — 11.52V Li-Polymer Replacement Battery (L19C3PF8)

This is an 11.52V, 3150mAh (36.29Wh) Li-Polymer battery for the Lenovo IdeaPad Flex 3 11IGL05 series. It fits the 11-inch 2-in-1 convertible chassis and connects using the original three-cell BMS handshake. OEM part numbers L19C3PF8, L19M3PF8, SB10X02592, SB10X02595, 5B10X02593, and 5B10X02604 all cross to this cell.

Flex 3 11IGL05 series fit: Every variant in this series — from the 82B20024IV to the 82B2001MUK and 119 additional sub-models — shares the same connector pinout, BMS communication protocol, and 11.52V three-cell rail. One cell covers the full range.
Bench tested on actual hardware: We ran this cell in an 11IGL05 chassis and confirmed the BMS authenticated without fault codes. The charge controller accepted the cell and climbed to full capacity without triggering a protection cutoff.
Post-install calibration on the Flex 3: After fitting, run the laptop down to hibernate cutoff under normal load — screen on, browser active — then charge uninterrupted to 100%. This resets the BIOS battery learn cycle and clears the inaccurate health warning that appears after a cell swap.

BIOS reporting poor battery health immediately after replacement

The Flex 3 BIOS reads health data from EEPROM values stored on the previous cell. When a new cell is installed, the BIOS compares live readings against the old cell's stored profile and flags a mismatch as poor health. This is a data conflict, not a fault with the new battery. Run one complete discharge-to-hibernate followed by an uninterrupted charge to 100%. That single learn cycle overwrites the stale EEPROM baseline and clears the warning.

Laptop shuts down at 20–30% remaining after battery swap

This happens when the fuel gauge IC hasn't calibrated against the new cell's actual voltage curve. The IC still maps percentages against the old cell's discharge profile, so it calls 20–30% as the cutoff point when the new cell still has usable capacity. Under full CPU and display load, the voltage sag accelerates the miscalculation. Two to three full discharge-and-charge cycles recalibrate the IC — after that, the gauge tracks accurately and shutdowns stop well above 15V.

Compatibility

Check your original model and part number before ordering.

Compatible brands

Lenovo

Fit Model

IdeaPad Flex 3 11IGL05IdeaPad Flex 3 11IGL05 82B20024IVIdeaPad Flex 3 11IGL05 82B2001MUKIdeaPad Flex 3 11IGL05 82B20014ADFlex 3-11IGL05 82B2000XAUIdeaPad Flex 3 11IGL05 82B2000SPGIdeaPad Flex 3 11IGL05 82B20047GEIdeaPad Flex 3 11IGL05 82B2003PMJIdeaPad Flex 3 11IGL05 82B2002YSBIdeaPad Flex 3 11IGL05 82B2001UTWIdeaPad Flex 3 11IGL05 82B2001CFRIdeaPad Flex 3 11IGL05 82B20005USIdeaPad Flex 3 11IGL05 82B2000FTXIdeaPad Flex 3 11IGL05 82B2003WUKIdeaPad Flex 3 11IGL05 82B20037AXIdeaPad Flex 3 11IGL05 82B2002FTWIdeaPad Flex 3 11IGL05 82B20022IVIdeaPad Flex 3 11IGL05 82B2001KAUIdeaPad Flex 3 11IGL05 82B20012GEFlex 3-11IGL05 82B2001KAUIdeaPad Flex 3 11IGL05 82B2000PTAIdeaPad Flex 3 11IGL05 82B20045AUIdeaPad Flex 3 11IGL05 82B2003LUSIdeaPad Flex 3 11IGL05 82B2002WHVIdeaPad Flex 3 11IGL05 82B2001SPHIdeaPad Flex 3 11IGL05 82B2001ACFIdeaPad Flex 3 11IGL05 82B20009AXIdeaPad Flex 3 11IGL05 82B2004FMHIdeaPad Flex 3 11IGL05 82B2003UUKIdeaPad Flex 3 11IGL05 82B20034PHIdeaPad Flex 3 11IGL05 82B2002DIDIdeaPad Flex 3 11IGL05 82B20020IVIdeaPad Flex 3 11IGL05 82B2001HFRIdeaPad Flex 3 11IGL05 82B2000XAUIdeaPad Flex 3-11ADA05(82G4)IdeaPad Flex 3 11IGL05 82B2000MHHIdeaPad Flex 3 11IGL05 82B20042MJIdeaPad Flex 3 11IGL05 82B2003DAUIdeaPad Flex 3 11IGL05 82B2002TMZIdeaPad Flex 3 11IGL05 82B2001QGEIdeaPad Flex 3 11IGL05 82B20017ADFlex 3-11IGL05(82B20000UK)IdeaPad Flex 3 11IGL05 82B2000BAXIdeaPad Flex 3 11IGL05 82B2004AUEIdeaPad Flex 3 11IGL05 82B2003SMJIdeaPad Flex 3 11IGL05 82B20032RMIdeaPad Flex 3 11IGL05 82B20027TWIdeaPad Flex 3 11IGL05 82B2001XIVIdeaPad Flex 3 11IGL05 82B2001FFRIdeaPad Flex 3-11ADA05(82G4000VGE)IdeaPad Flex 3 11IGL05 82B2000KTWIdeaPad Flex 3 11IGL05 82B20040BMIdeaPad Flex 3 11IGL05 82B2003BMBIdeaPad Flex 3 11IGL05 82B2002RADIdeaPad Flex 3 11IGL05 82B2001NUKIdeaPad Flex 3 11IGL05 82B20015ADFlex 3-11IGL05(82B20003US)IdeaPad Flex 3 11IGL05 82B2000DIDIdeaPad Flex 3 11IGL05 82B20048CKIdeaPad Flex 3 11IGL05 82B2003QPHIdeaPad Flex 3 11IGL05 82B20030MHIdeaPad Flex 3 11IGL05 82B20025IVIdeaPad Flex 3 11IGL05 82B2001VAXIdeaPad Flex 3 11IGL05 82B2001DFRIdeaPad Flex 3 11IGL05 82B20003USIdeaPad Flex 3 11IGL05 82B2000GTXIdeaPad Flex 3 11IGL05 82B2003XUKIdeaPad Flex 3 11IGL05 82B20038ADIdeaPad Flex 3 11IGL05 82B2002GTWIdeaPad Flex 3 11IGL05 82B20023IVIdeaPad Flex 3 11IGL05 82B2001LUKIdeaPad Flex 3 11IGL05 82B20013ADFlex 3-11IGL05 82B2000YAUIdeaPad Flex 3 11IGL05 82B2000RPGIdeaPad Flex 3 11IGL05 82B20046AUIdeaPad Flex 3 11IGL05 82B2003NSBIdeaPad Flex 3 11IGL05 82B2002XHVIdeaPad Flex 3 11IGL05 82B2001TGEIdeaPad Flex 3 11IGL05 82B2001BFRIdeaPad Flex 3 11IGL05 82B20008TWIdeaPad Flex 3 11IGL05 82B2000ETXIdeaPad Flex 3 11IGL05 82B2003VUKIdeaPad Flex 3 11IGL05 82B20036AXIdeaPad Flex 3 11IGL05 82B2002ESAIdeaPad Flex 3 11IGL05 82B20021IVIdeaPad Flex 3 11IGL05 82B2001JFRIdeaPad Flex 3 11IGL05 82B2000YAUFlex 3-11IGL05 82B20046AUIdeaPad Flex 3 11IGL05 82B2000NIDIdeaPad Flex 3 11IGL05 82B20044SAIdeaPad Flex 3 11IGL05 82B2003ESBIdeaPad Flex 3 11IGL05 82B2002VHVIdeaPad Flex 3 11IGL05 82B2001RGEIdeaPad Flex 3 11IGL05 82B20018USFlex 3-11IGL05(82B2)IdeaPad Flex 3 11IGL05 82B2000AAXIdeaPad Flex 3 11IGL05 82B2004EGEIdeaPad Flex 3 11IGL05 82B2003TUKIdeaPad Flex 3 11IGL05 82B20033PHIdeaPad Flex 3 11IGL05 82B20029SAIdeaPad Flex 3 11IGL05 82B2001YIVIdeaPad Flex 3 11IGL05 82B2001GFRIdeaPad Flex 3 11IGL05 82B2000VMXIdeaPad Flex 3-11ADA05(82G40018GE)IdeaPad Flex 3 11IGL05 82B2000LMJIdeaPad Flex 3 11IGL05 82B20041BMIdeaPad Flex 3 11IGL05 82B2003CAXIdeaPad Flex 3 11IGL05 82B2002SADIdeaPad Flex 3 11IGL05 82B2001PUKIdeaPad Flex 3 11IGL05 82B20016PHFlex 3-11IGL05(82B20001UK)IdeaPad Flex 3 11IGL05 82B2000CIDIdeaPad Flex 3 11IGL05 82B20049GEIdeaPad Flex 3 11IGL05 82B2003RMZIdeaPad Flex 3 11IGL05 82B20031GEIdeaPad Flex 3 11IGL05 82B20026IVIdeaPad Flex 3 11IGL05 82B2001WIVIdeaPad Flex 3 11IGL05 82B2001EFRIdeaPad Flex 3 11IGL05 82B20002USIdeaPad Flex 3 11IGL05 82B2000HSBIdeaPad Flex 3 11IGL05 82B2003YUKIdeaPad Flex 3 11IGL05 82B20039MZIdeaPad Flex 3 11IGL05 82B2002HSA

Part Number

L19C3PF8L19M3PF8SB10X02592SB10X025955B10X025935B10X02604

Specifications

Battery typeLi-Polymer

Voltage11.52V

Capacity3150mAh

Wh36.29Wh

Dimensions242.00 x 101.60 x 4.50mm

Weight

Connector

ChemistryLi-Polymer

Shipping and safety

UN number:

Standard carrier options available

UN38.3 documentation pending

Return warning
