About this replacement

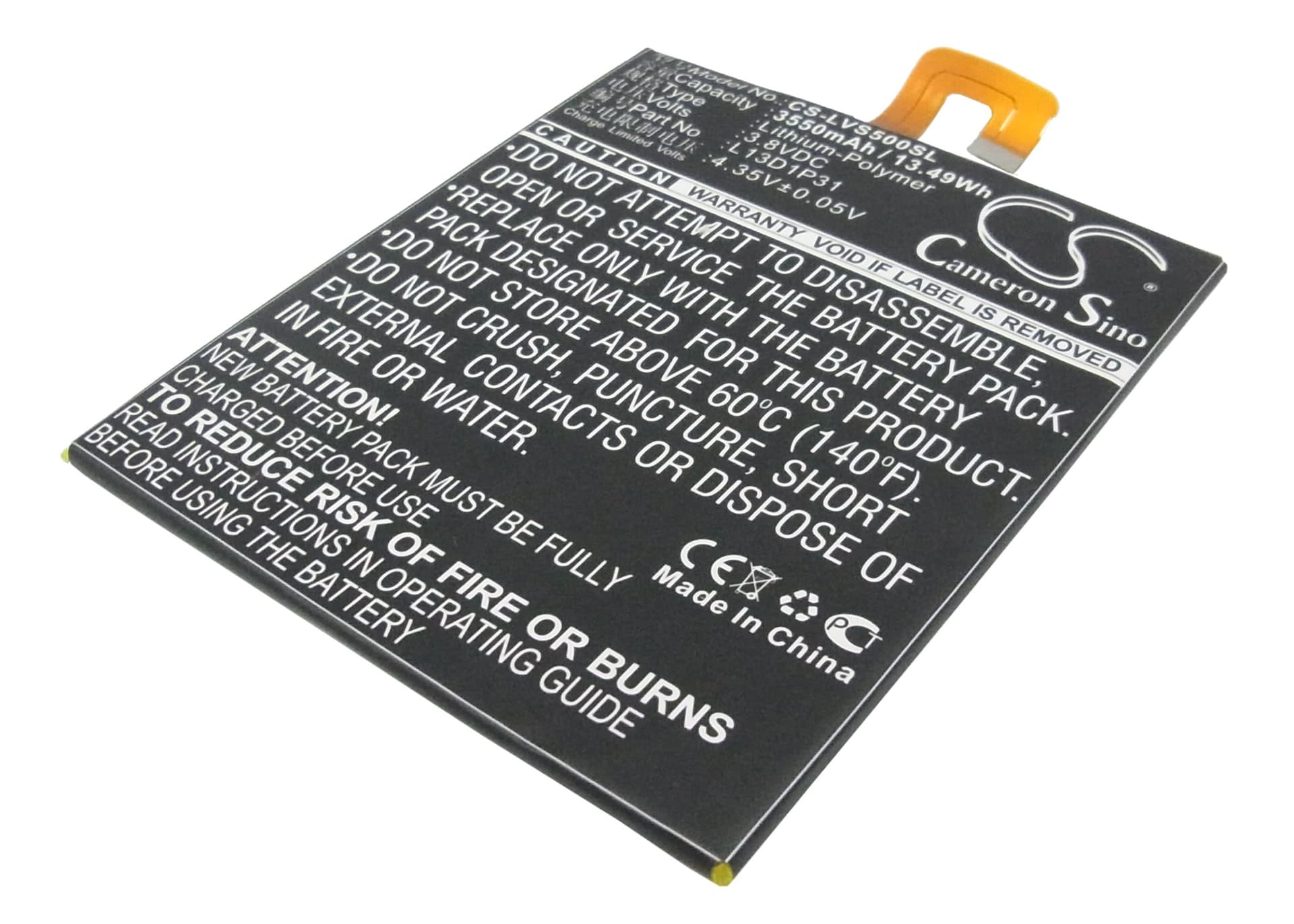

Lenovo IdeaPad S5000 / TAB 2 A7-20 — 3.8V Li-Polymer Replacement Battery (L13D1P31)
This is a 3.8V, 3550mAh (13.49Wh) lithium-polymer replacement battery for the Lenovo IdeaPad S5000 and its close relatives. It fits the TAB 2 A7-20, IdeaTab 2 A7-30, and Tab A7-50, among others. All share the same L13D1P31 cell format, connector, and charge IC handshake.
- Cross-model fit on the A7 platform: The IdeaPad S5000, IdeaTab 2 A7-30, and TAB 2 A7-20 all run the same 3.8V battery rail with an identical flex connector and BMS pinout. Lenovo reused this cell across the A7 slate line, so one part number covers all listed models without modification.
- Bench tested on actual hardware: We ran this cell through a full charge cycle on an IdeaPad S5000 and monitored the charge IC negotiation. The BMS accepted the cell without fault codes, and the charge IC settled at the correct termination voltage with no thermal events.
- Fuel gauge recalibration after swap: After installing this battery, run the tablet down to automatic shutoff — do not force it off — then charge uninterrupted to 100%. This single full cycle resets the fuel gauge IC against the new cell's actual capacity curve and clears the inaccurate percentage readings that appear immediately after a swap.
Tablet shutting down at 15–25% remaining after battery replacement
This happens when the fuel gauge IC still references the old cell's voltage-to-capacity curve. The new cell hits a voltage cliff under combined display and WiFi load that the IC misreads as a safe level — then the system cuts power without warning. The fix is one full discharge-to-shutoff followed by an uninterrupted charge to 100%. After that cycle, the gauge recalibrates and the premature cutoff stops.
Fast charging unavailable on the IdeaPad S5000 after a battery swap
Some units show fast charge as greyed out or simply charge at standard rate after a new cell is installed. The charge IC needs at least one completed charge cycle before it re-enables the higher current profile — this is a protocol handshake, not a hardware fault. Plug in using the original Lenovo charger and let the tablet charge from near-zero to 100% without interruption. After that cycle, fast charge re-enables automatically on the next plug-in.
