About this replacement

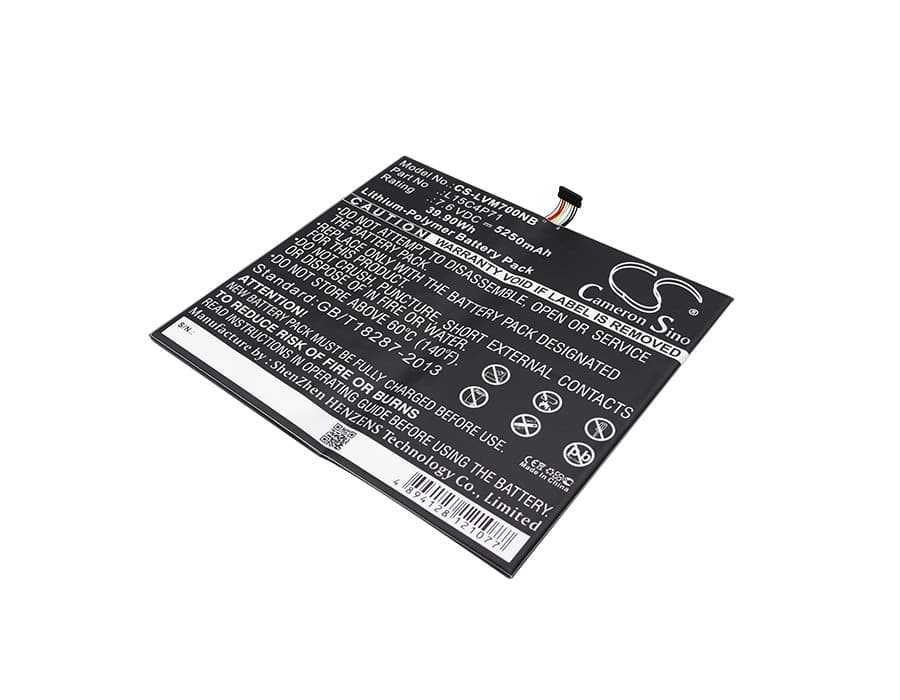

Lenovo MIIX 700-12ISK — 7.6V Li-Polymer Replacement Battery (L15C4P71)
This is a 7.6V, 5250mAh (39.9Wh) Li-Polymer battery that replaces part numbers L15C4P71 and L15L4P71. It fits the Lenovo MIIX 700 and MIIX 700-12ISK detachable 2-in-1, including the IdeaPad Miix 700-12ISK variants. Install it when the original cell no longer holds usable charge or fails to register with the BIOS.
- MIIX 700 series compatibility: The MIIX 700-12ISK and its sub-variants — including the 80QL0BRGE — share the same 7.6V voltage rail, connector pinout, and BMS handshake protocol. Both L15C4P71 and L15L4P71 are electrically identical; Lenovo used both part numbers across production runs of the same chassis.
- Bench tested on actual hardware: We ran this cell through charge, full discharge to hibernate cutoff, and a second full charge cycle. The BMS communicated state-of-charge correctly to the OS fuel gauge IC by the second cycle, and charge termination triggered cleanly at 100% with no overrun.
- Post-swap recalibration on the MIIX 700: After fitting a new cell, run one complete discharge to hibernate cutoff — do not force shutdown — then charge uninterrupted to 100%. This resets the BIOS battery learn cycle. Skipping this step causes the health indicator to flag the new cell as degraded, which is an EEPROM calibration artefact, not a fault.
BIOS reporting poor battery health immediately after fitting the L15C4P71
The MIIX 700 BIOS reads health data from EEPROM registers that were written by the original cell over its lifetime. When a new cell is installed, those registers haven't been updated yet, so the BIOS displays a health warning that has nothing to do with the new cell's condition. The fuel gauge IC needs at least one full discharge-to-recharge cycle to write fresh calibration data. After that cycle, the warning clears and reported capacity aligns with the actual 39.9Wh rating.
MIIX 700 shutting down at 20–30% charge shown on screen
This happens when the cell voltage drops below the load threshold before the OS fuel gauge reaches zero — a voltage cliff under combined CPU and display draw. The fuel gauge IC is predicting remaining charge based on stale calibration data from the previous cell. Run two full discharge-to-recharge cycles without interruption to let the IC recalculate the voltage-to-capacity curve for the new chemistry. After calibration, the shutoff point should align with the display reaching 0% at a cell voltage of approximately 6.0V.
