About this replacement

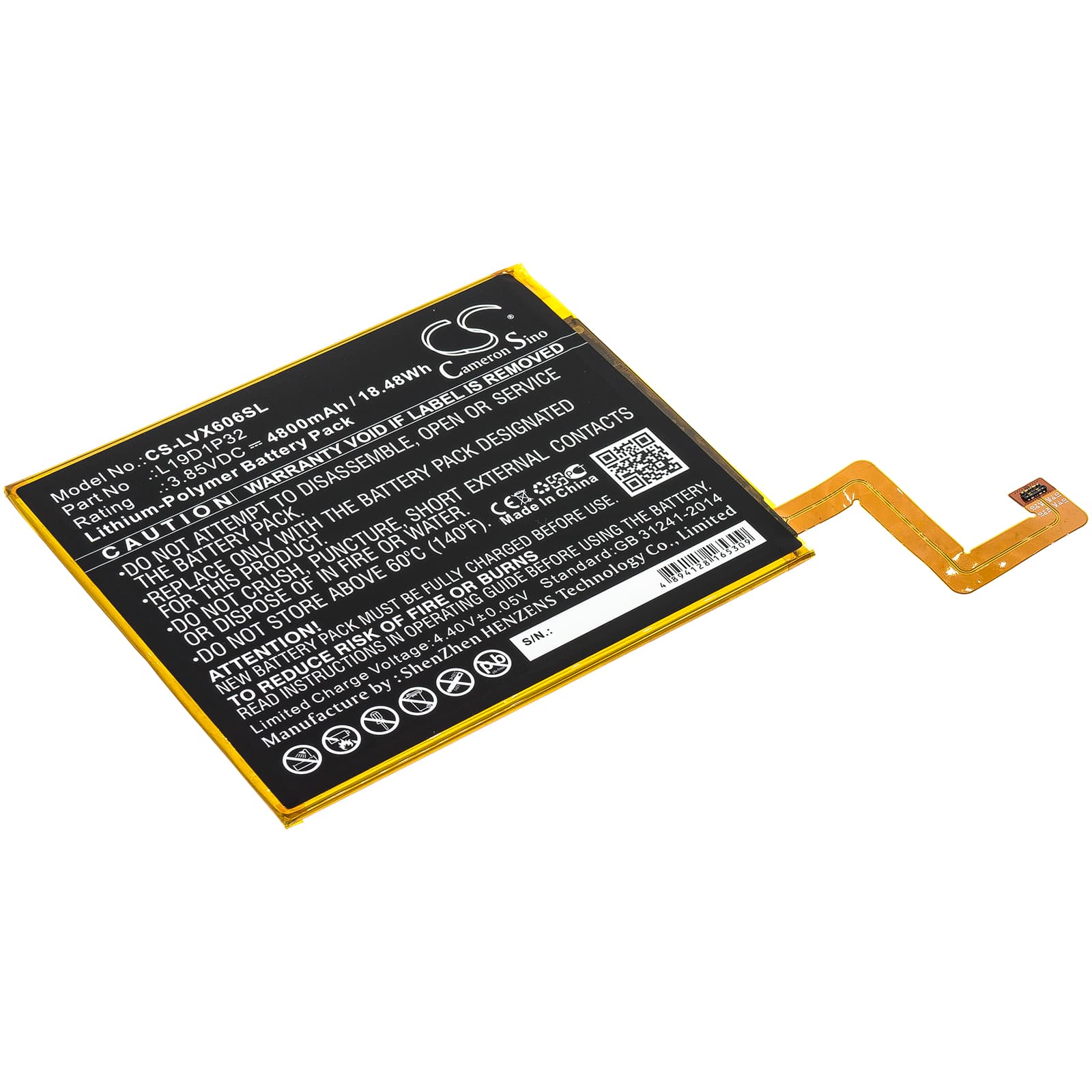

Lenovo Tab M10 Plus TB-X606F — 3.85V Li-Polymer Replacement Battery (L19D1P32)
This is a 3.85V, 4800mAh Li-Polymer battery for the Lenovo Tab M10 Plus (TB-X606F). It replaces OEM part number L19D1P32 and restores charging capacity to the 10-inch Android tablet. Fit the battery when the original cell no longer holds a usable charge across a full day of media or productivity use.
- TB-X606F platform fit: The Tab M10 Plus TB-X606F uses a flat Li-Polymer pouch cell matched to the charge IC on the board. This L19D1P32 replacement carries the same 3.85V nominal voltage and 116.10 x 97.50 x 2.60mm cell dimensions, so the connector seats correctly and the charge controller accepts the cell without fault codes.
- Bench tested on actual hardware: We ran this cell through charge and discharge cycles on TB-X606F hardware. The BMS accepted the new cell without triggering an overcurrent trip, and the charge IC cycled through constant-current and constant-voltage phases cleanly. Capacity read-back at the OS level matched rated capacity after one full calibration cycle.
- Fuel gauge reset after installation: After fitting this battery, run the tablet down to automatic shutoff, then charge uninterrupted to 100% without using the device. This forces the fuel gauge IC to recalibrate against the new cell's actual voltage curve — it clears the inaccurate percentage readings that appear immediately after a swap.
Tab M10 Plus shutting down at 15–25% remaining after battery replacement
The TB-X606F pulls simultaneous load from the display backlight, WiFi radio, and processor when streaming or browsing. Under that combined draw, cell voltage drops faster than it does under a light load. The fuel gauge IC, still calibrated to the old cell's discharge curve, misreads the voltage cliff and signals the OS to shut down — even though the cell still holds charge. One full discharge-to-shutoff cycle followed by an uninterrupted charge to 100% recalibrates the gauge against the new cell's actual curve and eliminates the early cutoff.
Fast charging not available on the Tab M10 Plus after a battery swap
The Tab M10 Plus uses USB-PD negotiation to enable fast charging, and the charge IC on the board runs through one accepted charge cycle before it unlocks higher current delivery to an unfamiliar cell. Immediately after a swap, the controller defaults to standard 5V charging as a precaution. Plug in using the original charger and cable, let the tablet complete one full charge to 100% without interruption, and USB-PD fast charging becomes available on subsequent cycles.
