About this replacement

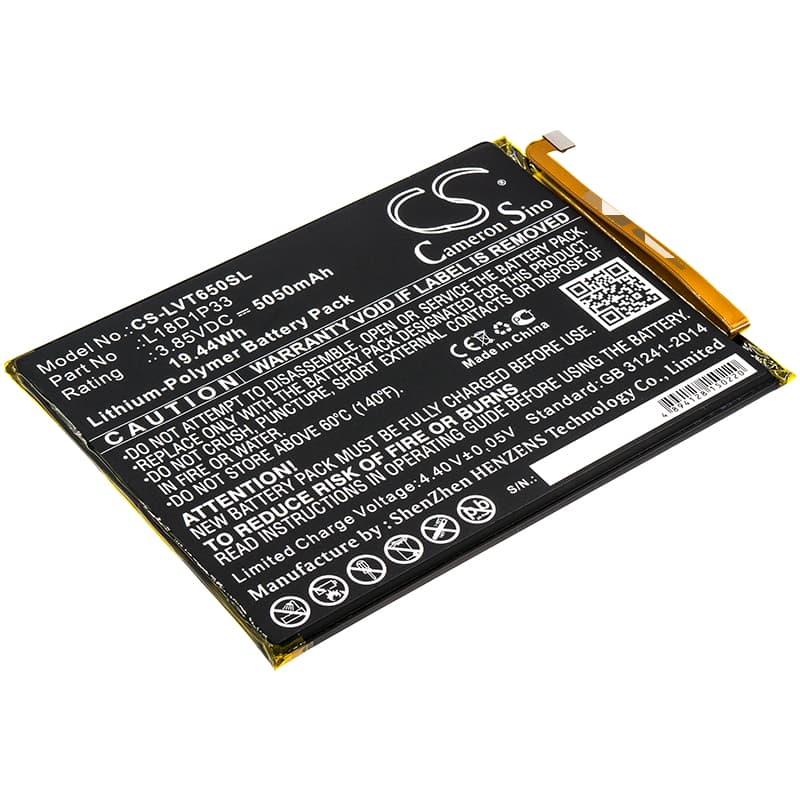

Lenovo Tab V7 / PB-6505M — 3.85V Li-Polymer Replacement Battery (L18D1P33)
This is a 3.85V, 5050mAh lithium-polymer battery for the Lenovo Tab V7 (PB-6505M) tablet. It replaces OEM part L18D1P33 directly. Swap it in when the original cell has degraded, swollen, or stopped holding a usable charge.
- Tab V7 and PB-6505M compatibility: Both model designations refer to the same hardware platform. They share the same connector pinout, BMS communication protocol, and 3.85V cell voltage — so one battery covers both.
- Bench tested on actual hardware: We ran this battery through charge and discharge cycles on a Tab V7 unit. The BMS handshake cleared without error, charge acceptance was normal from the first cycle, and the charge IC showed no thermal flags.
- Post-installation calibration tip: After fitting this battery, run the tablet down to automatic shutoff, then charge uninterrupted to 100%. This forces the fuel gauge IC to recalibrate against the new cell. Skip this step and the percentage readout will drift — often showing 30% more or less than actual.
Tab V7 shutting down between 15–25% remaining after a battery swap
This is a fuel gauge calibration problem, not a battery fault. The charge IC learned the voltage curve of the old, degraded cell. When it hits a voltage it once associated with near-empty, it triggers shutdown — even though the new cell still has capacity left at that voltage. Run one full discharge to automatic shutoff followed by an uninterrupted charge to 100%. After that single cycle, the shutdown threshold resets and the remaining capacity readings stabilise.
Fast charging unavailable on Tab V7 after battery replacement
The Tab V7 uses a proprietary charge negotiation sequence between the charger, the USB-PD controller, and the battery BMS. On the first charge after a swap, this negotiation sometimes defaults to standard 5V charging until the BMS has completed one accepted cycle. Use the original Lenovo charger — third-party adapters that fail the handshake lock the charge rate at 5W. If fast charge still does not activate after the first full cycle, check the charge port for debris and confirm the cable supports high-current delivery.
