About this replacement

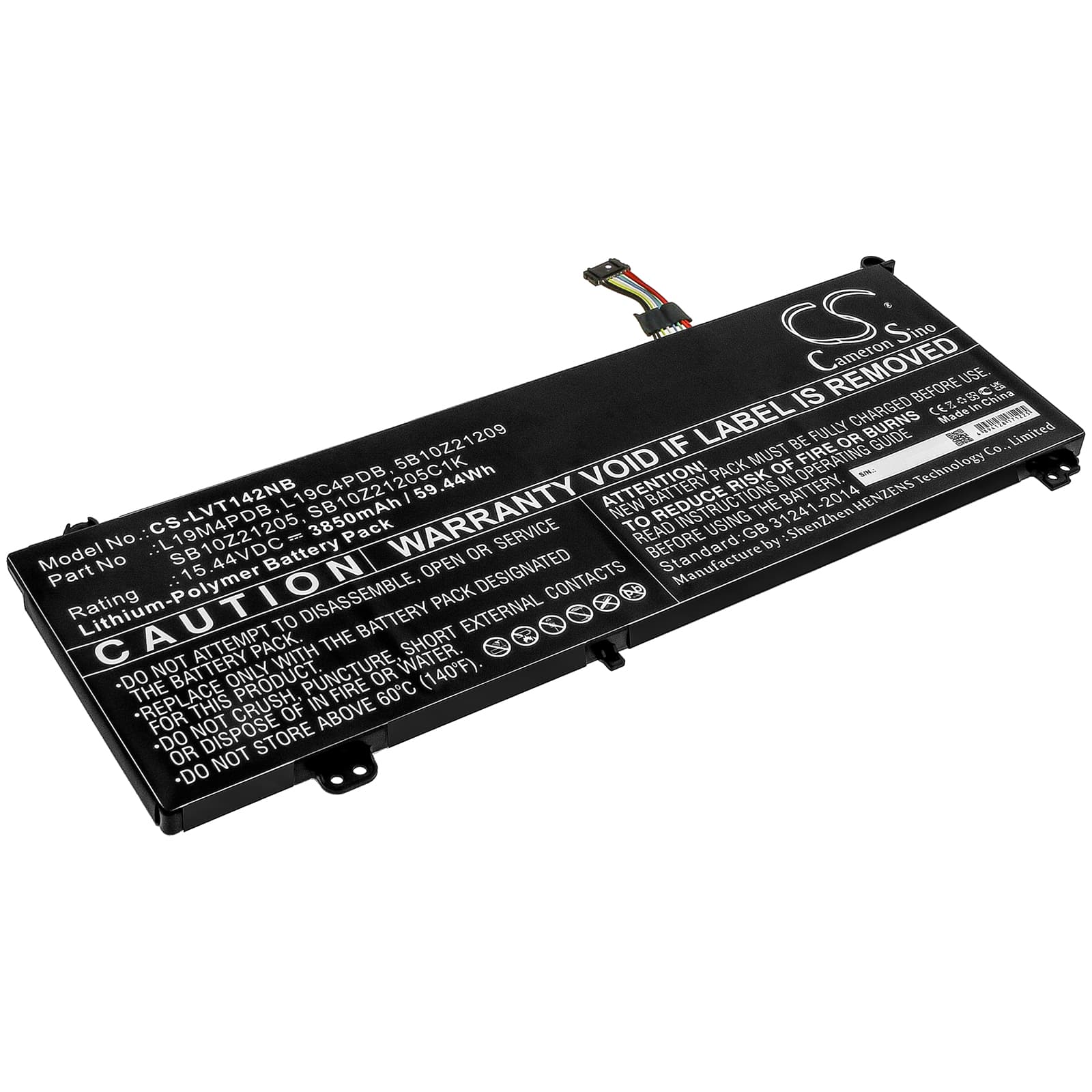

Lenovo ThinkBook 14s Yoga ITL Series — 15.44V Li-Polymer Replacement Battery (L19M4PDB)
This is a 15.44V, 3850mAh (59.44Wh) Li-Polymer battery for the Lenovo ThinkBook 14s Yoga ITL convertible laptop. It fits the 20WE series and over 160 additional ThinkBook 14s Yoga ITL variants sharing the same voltage rail and connector pinout. Install it when the original cell no longer holds charge or the system shuts down unexpectedly under load.
- ThinkBook 14s Yoga ITL platform fit: Every 20WE-series unit runs the same 15.44V four-cell Li-Polymer architecture with an identical BMS handshake and connector. Part numbers L19M4PDB, L19C4PDB, L20M4PDB, and L20C4PDB are all cross-compatible within this platform — the OEM changed the label across production runs, not the cell specification.
- Bench tested on actual hardware: We ran this cell through charge-discharge cycles on a ThinkBook 14s Yoga ITL unit and confirmed the BMS initialised correctly, the fuel gauge IC accepted the new cell data, and the charge controller reached 100% without tripping a protection fault.
- Post-install calibration on the ThinkBook 14s Yoga: After fitting, run one full discharge to hibernate cutoff, then charge uninterrupted to 100%. This resets the BIOS battery learn cycle. Without it, the BIOS often flags the new cell as degraded and the fuel gauge reads inaccurately for the first few sessions.
BIOS reporting battery health as poor after a cell swap on the ThinkBook 14s Yoga
When you swap the battery on this platform, the BIOS reads EEPROM data written by the old cell — charge cycles, rated capacity, and health state. The new cell carries different EEPROM values, so the BIOS immediately flags a health mismatch. This is not a fault with the replacement cell. Run a full discharge to hibernate, then a full uninterrupted charge to 100%, and the BIOS learn cycle will overwrite the old data with values from the new cell.
ThinkBook 14s Yoga shutting down at 20–30% shown on the fuel gauge
This happens when the cell voltage drops sharply under combined CPU and display load — the convertible touchscreen draws additional current compared to a standard clamshell. The fuel gauge IC predicts remaining charge at idle, but under full load the cell hits the BMS undervoltage cutoff before the displayed percentage reaches zero. If this persists after two calibration cycles, check the BIOS battery conservation mode setting — it may be artificially capping the usable voltage window. Disable conservation mode and run another full discharge-to-hibernate cycle, then recharge to 100%.
