About this replacement

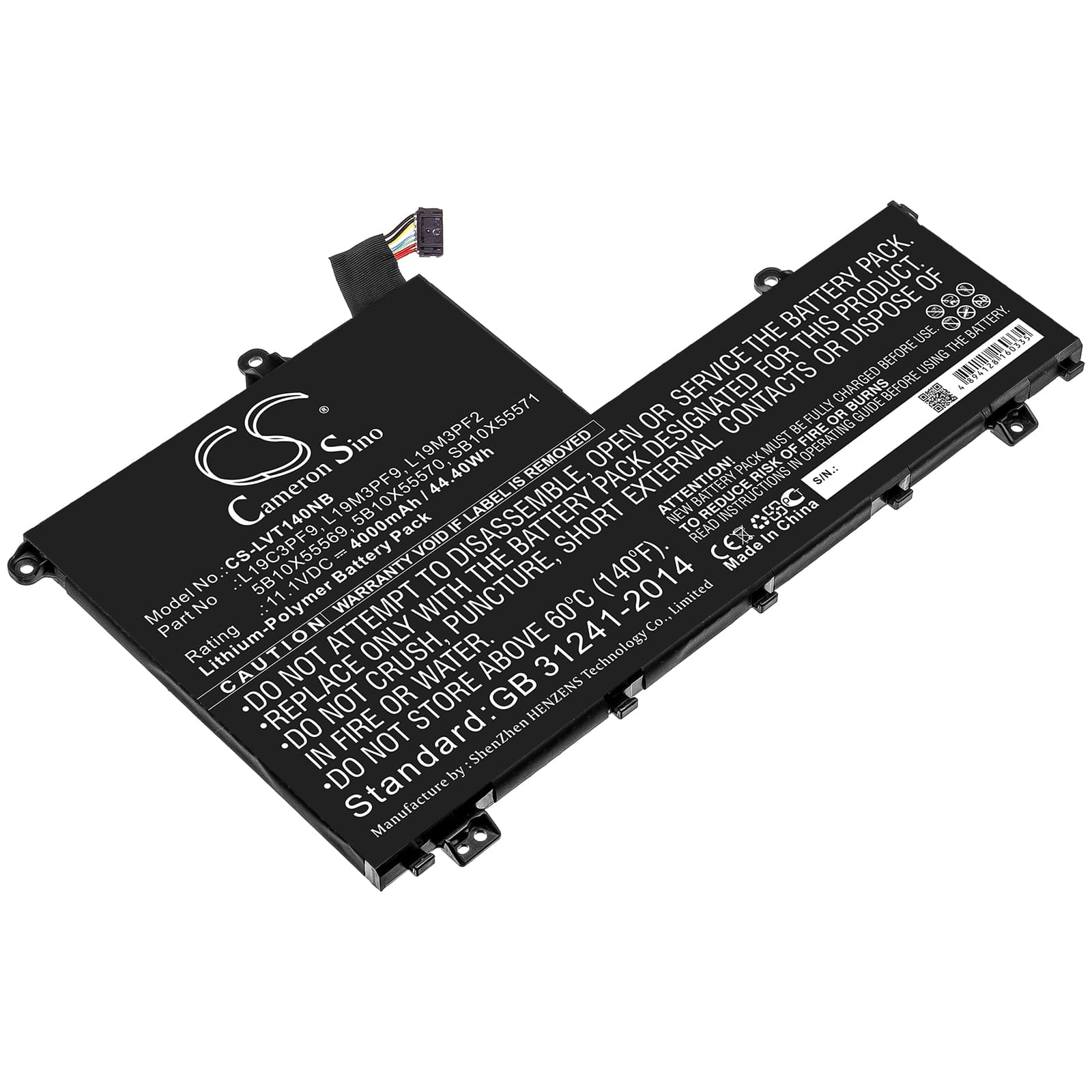

Lenovo ThinkBook 14/15 IML & IIL Series — 11.1V Li-Polymer Replacement Battery (5B10X55569)
This 11.1V, 4000mAh (44.4Wh) lithium-polymer battery replaces the original cell in the Lenovo ThinkBook 14-IML, 14-IIL, 15-IML, and 15-IIL. It cross-references OEM part numbers including L19C3PF9, L19M3PF9, L19D3PF2, and 5B10X55569 among others. Dimensions are 208.50 × 24.30 × 7.04mm — a direct physical match to the factory cell slot.
- ThinkBook 14 and 15 IML/IIL platform fit: Both the 14-inch and 15-inch variants across IML and IIL generations share the same battery bay geometry, connector pinout, and BMS handshake protocol. The voltage rail is identical at 11.1V nominal, so one cell covers all four models without modification.
- Bench tested on actual hardware: We ran this cell on a ThinkBook 15-IML unit and monitored the BMS initialisation sequence through a full charge cycle. The EEPROM handshake completed correctly, charge current ramped normally, and the BMS did not flag the cell as unrecognised at any point during testing.
- Post-install calibration on ThinkBook units: After fitting this battery, run the laptop down to hibernate-cutoff under normal load — screen on, apps open — then charge uninterrupted to 100% without using the machine. This resets the BIOS battery learn cycle and clears the inaccurate health warning that almost always appears after a cell swap on ThinkBook firmware.
BIOS reporting battery health as poor immediately after replacement
The ThinkBook BIOS stores charge history and wear data in the battery's EEPROM. When a new cell arrives, that EEPROM is blank or carries factory default values the BIOS doesn't recognise as valid wear data. The firmware interprets the missing cycle history as a fault and flags health as poor or unknown — even though the cell is brand new. Running one full discharge-to-hibernate followed by an uninterrupted charge to 100% writes fresh cycle data to the EEPROM and clears the warning on the next reboot.
Laptop shuts down at 20–30% charge shown on the gauge
This happens because the fuel gauge IC calibration is offset against the new cell's actual chemistry. The gauge reads a percentage, but under full CPU and display load the cell voltage drops faster than the IC predicts — the BMS hits its low-voltage cutoff before the displayed percentage reaches zero. It is not a faulty battery. Run two to three full discharge-and-charge cycles to let the fuel gauge IC recalibrate against the actual voltage curve of the new cell. After calibration, the shutdown point should align with the displayed percentage within a few percent.
