About this replacement

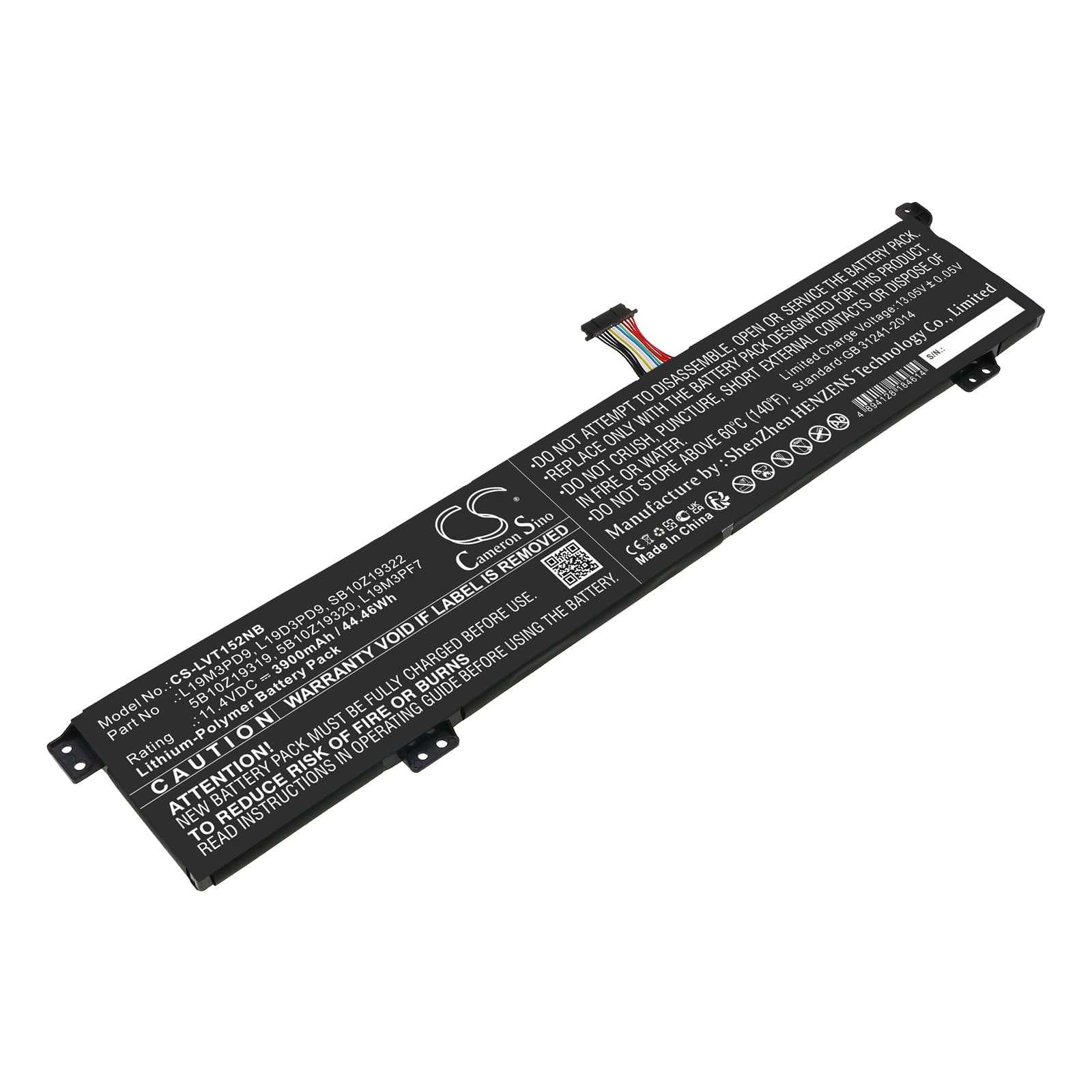

Lenovo ThinkBook 15p Series — 11.4V Li-Polymer Replacement Battery (L19M3PD9)
This 11.4V, 3900mAh (44.46Wh) Li-Polymer cell replaces the original battery in the Lenovo ThinkBook 15p G2 ITH, ThinkBook 15p IMH, and over 140 additional ThinkBook 15p variants. It matches the OEM voltage rail and connector pinout. The part number L19M3PD9 covers the primary OEM references including 5B10Z19319, 5B10Z19320, and L19D3PD9.
- ThinkBook 15p compatibility across G2 ITH and IMH platforms: These models share a common 11.4V three-cell configuration, identical battery bay dimensions (324.00 × 69.20 × 6.50mm), and the same BMS handshake protocol — which is why a single part number spans the full range without modification.
- Bench tested on actual hardware: We ran this cell through charge and discharge cycles on a ThinkBook 15p unit. The BMS communicated correctly with the EC, charge termination triggered at the expected cutoff voltage, and the protection circuit responded normally to load transitions during CPU bursts.
- First-cycle calibration after install: After fitting the new cell, run one full discharge until the laptop hibernates on low battery, then charge uninterrupted to 100%. This forces the BIOS battery learn cycle to reset against the new cell's actual capacity and clears the inaccurate health warning that appears after every cell swap.
BIOS reporting poor battery health immediately after replacement
The ThinkBook 15p stores battery health data in the embedded controller's EEPROM, not just the cell itself. When a new cell goes in, the EC compares accumulated cycle data from the old cell against the new one — and flags a mismatch as degraded health. This is a firmware calibration issue, not a fault with the replacement cell. Running a full discharge-to-hibernate followed by an uninterrupted charge to 100% lets the EC rewrite the EEPROM with accurate data for the new cell and clears the warning.
Laptop shutting down at 20–30% charge shown on screen
This happens when the fuel gauge IC's charge map still references the old cell's degraded voltage curve. The new cell has a steeper, healthier voltage curve, but the IC hasn't recalibrated yet — so it misreads remaining capacity and triggers shutdown before the cell is actually depleted. Two to three full discharge-and-charge cycles re-align the IC's model to the new cell chemistry. After calibration, the percentage readout will match actual cell voltage; target a resting voltage of around 11.4V at a genuine 100% state of charge.
