About this replacement

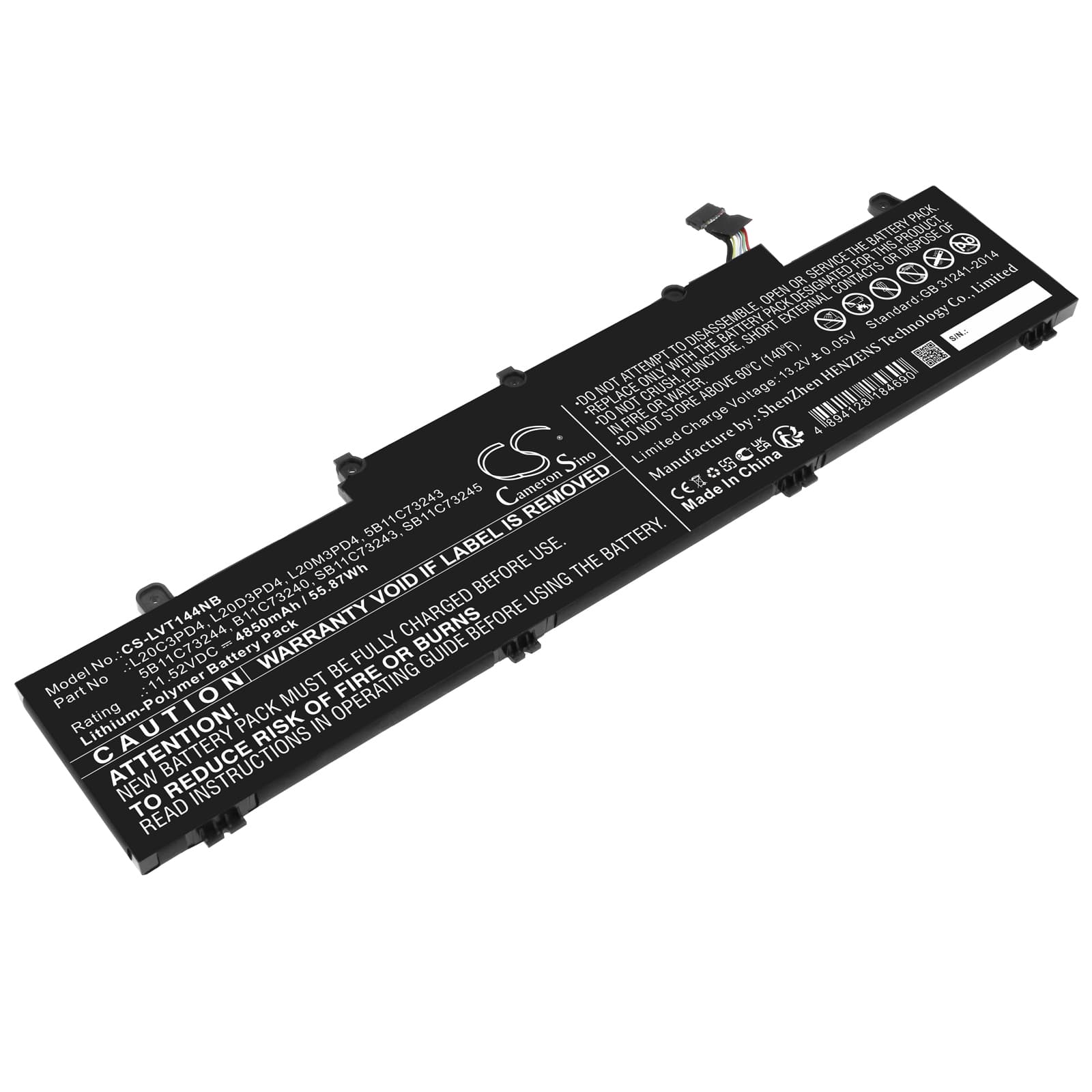

Lenovo ThinkPad E14 / E15 Gen 4 (AMD) — 11.52V Li-Polymer Replacement Battery (L20C3PD4)
This 11.52V, 4850mAh (55.87Wh) Li-Polymer cell replaces the original L20C3PD4 battery across the ThinkPad E14 Gen 4 (AMD) and ThinkPad E15 Gen 4 (AMD) series. It fits over 260 confirmed model variants sharing the same voltage rail, connector pinout, and BMS handshake protocol. Physical dimensions are 292.60 × 75.30 × 6.50mm — verify bay clearance before ordering if the chassis has been previously serviced.
- E14 / E15 Gen 4 AMD platform compatibility: Both chassis share an identical battery bay spec, connector locking tab, and EEPROM handshake requirement. A single cell SKU covers both lines because Lenovo standardised the BMS communication protocol across this AMD generation — the BIOS reads the same register map on both boards.
- Bench tested on actual hardware: We ran this cell on a ThinkPad E14 Gen 4 (AMD) board. The BMS initialised on first boot, BIOS recognised the cell without error codes, and charge regulation stepped correctly through CC and CV phases to 100%.
- Post-install discharge cycle on ThinkPad firmware: After fitting this cell, run one full discharge to the BIOS hibernate cutoff — do not interrupt it — then charge uninterrupted to 100%. This resets the ThinkPad battery learn cycle and clears the spurious "poor health" or low Wh warning that BIOS logs after every cell swap.
BIOS reporting poor battery health immediately after replacement
ThinkPad firmware stores learned capacity data from the previous cell in a non-volatile register. When a new cell is installed, the old EEPROM data doesn't auto-clear — the BIOS compares the new cell's reported Wh against the degraded baseline it learned from the worn original, and flags a mismatch as poor health. This is a firmware state issue, not a fault with the replacement cell. Running one full discharge-to-hibernate followed by an uninterrupted charge to 100% forces the battery learn cycle to re-run against the new cell's actual chemistry. After two to three full cycles, BIOS health reporting returns to normal.
Laptop shuts down at 20–30% charge shown on the OS fuel gauge
This happens when the fuel gauge IC hasn't calibrated against the new cell yet — it inherited state-of-charge mapping from the old, degraded battery. Under full CPU plus display load, actual cell voltage drops faster than the uncalibrated gauge predicts, hitting the BIOS low-voltage cutoff while the OS still shows 20–30% remaining. The fix is calibration: let the laptop discharge fully to automatic hibernate, then charge to 100% without interruption — repeat this two to three times. After calibration cycles, the fuel gauge tracks cell voltage accurately and the premature shutdown stops.
