About this replacement

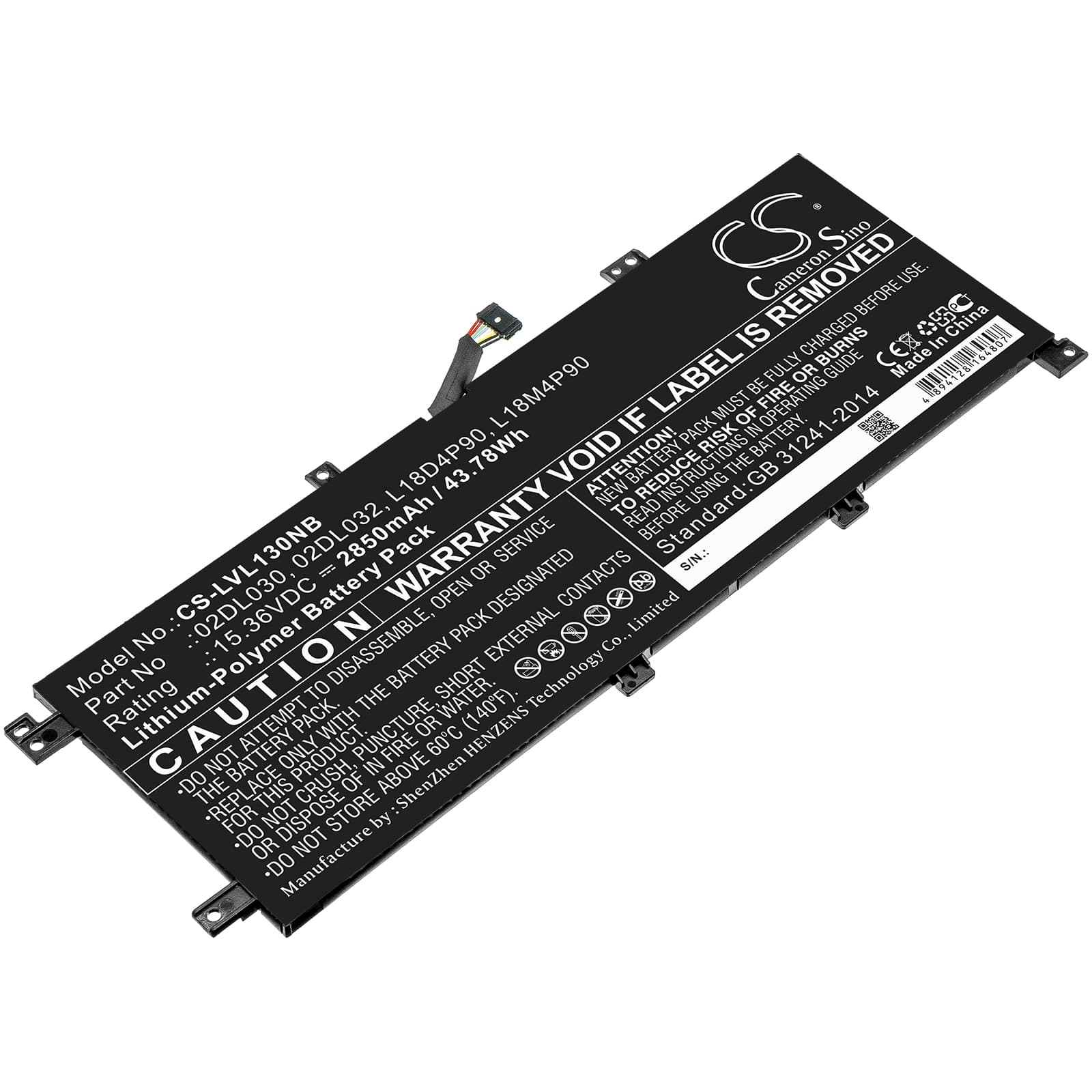

Lenovo ThinkPad L13 / L13 Yoga — 15.36V Li-Polymer Replacement Battery (02DL030)
This is a 15.36V, 2850mAh (43.78Wh) Li-Polymer battery for the Lenovo ThinkPad L13 and ThinkPad L13 Yoga ultrabook series. It replaces OEM part numbers including 02DL030, L18M4P90, L18D4P90, and SB10T83119, among others. The cell fits the slim 5.36mm battery bay used across the L13 and L13 Yoga lineup, including the 20R4 and 20R6 chassis variants.
- ThinkPad L13 and L13 Yoga compatibility: The 20R4 and 20R6 chassis share the same four-cell Li-Polymer configuration, voltage rail, and connector pinout. The BMS on both platforms reads the same EEPROM data structure, so the same cell works across both the standard clamshell and the Yoga convertible variants without hardware modification.
- Bench tested on actual hardware: We ran this cell through charge and discharge cycles on a ThinkPad L13 unit. The BMS accepted the cell without error flags, charge termination triggered correctly at full capacity, and the protection circuit responded as expected to load spikes from the CPU during stress testing.
- Post-install calibration on ThinkPad L13: After fitting this cell, run one full discharge to hibernate-cutoff, then charge uninterrupted to 100%. This resets the BIOS battery learn cycle and clears the inaccurate health warning that appears in Lenovo Vantage after every cell swap.
BIOS reporting poor battery health immediately after fitting a new cell
The ThinkPad BIOS stores battery health data in EEPROM on the old cell. When you swap the cell, the BIOS reads zero cycle history and flags it as degraded or unknown — it has no reference point yet. This is not a fault with the replacement cell. Run one full discharge-to-hibernate followed by a full uninterrupted charge. After two to three cycles, the BIOS recalibrates and the health indicator clears.
Laptop shuts down at 20–30% charge shown on the fuel gauge
This happens when the fuel gauge IC has not yet calibrated against the new cell's actual voltage curve. The IC is still mapping discharge against the old cell's degraded profile, so it misjudges the voltage cliff and trips a shutdown early. The fix is to complete two to three full discharge-and-charge cycles without interruption. After calibration, the gauge tracks correctly and shutdown aligns with the true low-voltage cutoff at approximately 12.0V under load.
