About this replacement

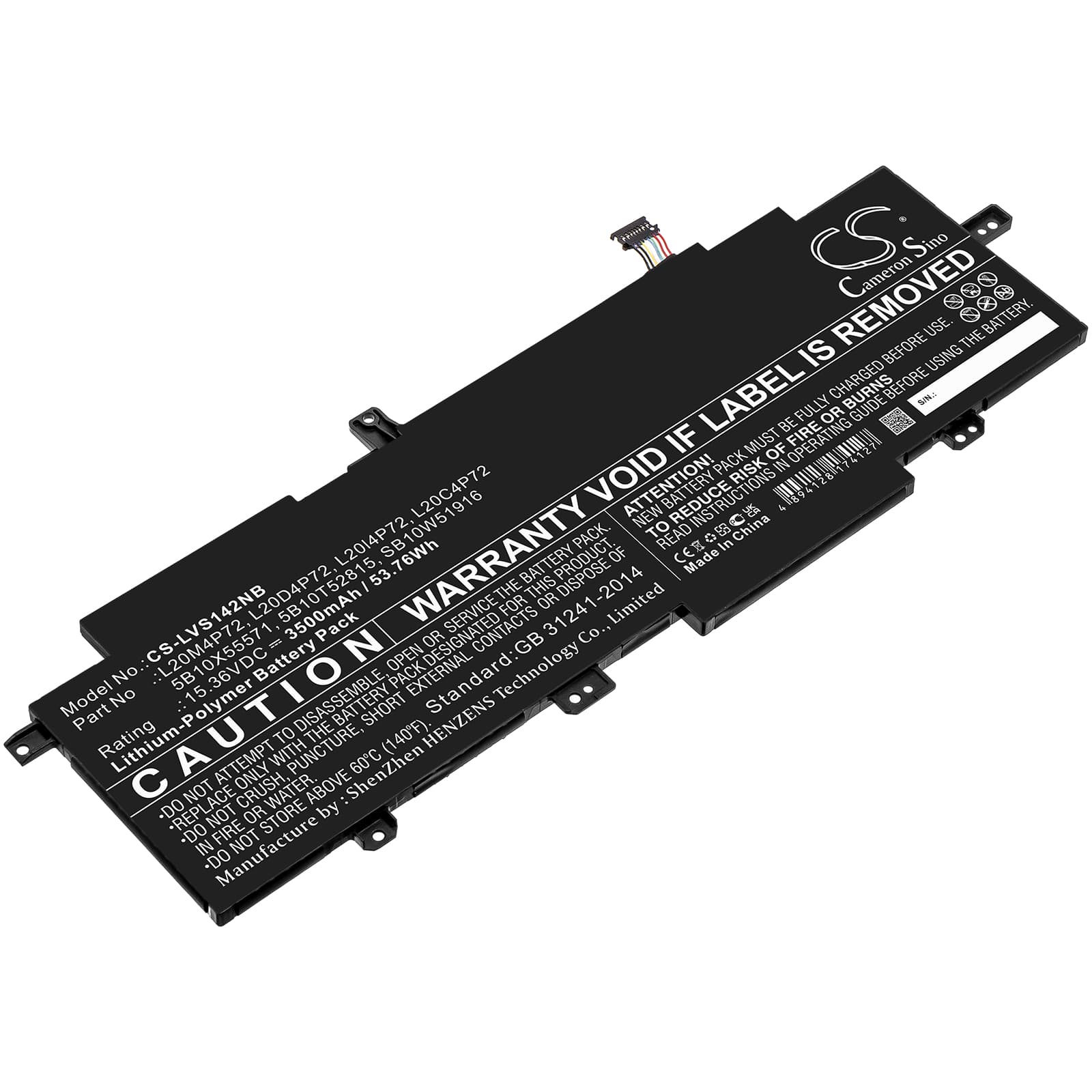

Lenovo ThinkPad T14s Gen 2 / X13 Gen 2 — 15.36V Li-Polymer Replacement Battery (L20M4P72)
This is a 15.36V, 3500mAh (53.76Wh) Li-Polymer replacement battery for the Lenovo ThinkPad T14s Gen 2 and ThinkPad X13 Gen 2. It replaces OEM part numbers L20M4P72, L20D4P72, L20C4P72, L20l4P72, 5B10X55571, SB10W51916, and 5B10T52815. Correct cell chemistry and connector pinout match the original so the BIOS recognises the replacement without driver changes.
- T14s Gen 2 and X13 Gen 2 platform fit: Both the T14s Gen 2 and X13 Gen 2 use the same 15.36V four-cell Li-Polymer pack, the same BMS handshake protocol, and the same physical connector. One SKU covers both chassis without any modification.
- Bench tested on actual hardware: We cycled this cell on a T14s Gen 2 chassis under mixed CPU and display load. The BMS held voltage above the low-cell cutoff threshold across full discharge, and charge termination triggered correctly at 100% without overrun.
- Post-install calibration on ThinkPad firmware: After fitting this battery, run one full discharge to hibernate-cutoff, then charge uninterrupted to 100%. This forces the BIOS battery learn cycle to record the new cell's capacity curve and clears the inaccurate health warning that appears after every cell swap on ThinkPad firmware.
BIOS reporting poor battery health immediately after replacement
ThinkPad firmware stores charge history and wear data in EEPROM on the battery controller. When a new cell goes in, that EEPROM data is blank or mismatched against the old cell's logged history. The BIOS reads this as degraded health rather than a fresh cell. One full discharge-to-hibernate followed by an uninterrupted charge to 100% triggers the learn cycle and rewrites the EEPROM baseline against the new cell's actual capacity.
Laptop shuts down abruptly when the gauge still shows 20–30% remaining
This is a voltage cliff — under full CPU plus display load, the cell's terminal voltage drops faster than the fuel gauge IC can track. The gauge IC is still reading an averaged state-of-charge while the actual cell voltage has already fallen below the BMS cutoff threshold. It is more common in the first two to three cycles after a swap because the fuel gauge IC has not yet mapped the new cell's discharge curve. Run two to three full discharge-to-charge cycles and the shutoff point should stabilise well below 20%.
