About this replacement

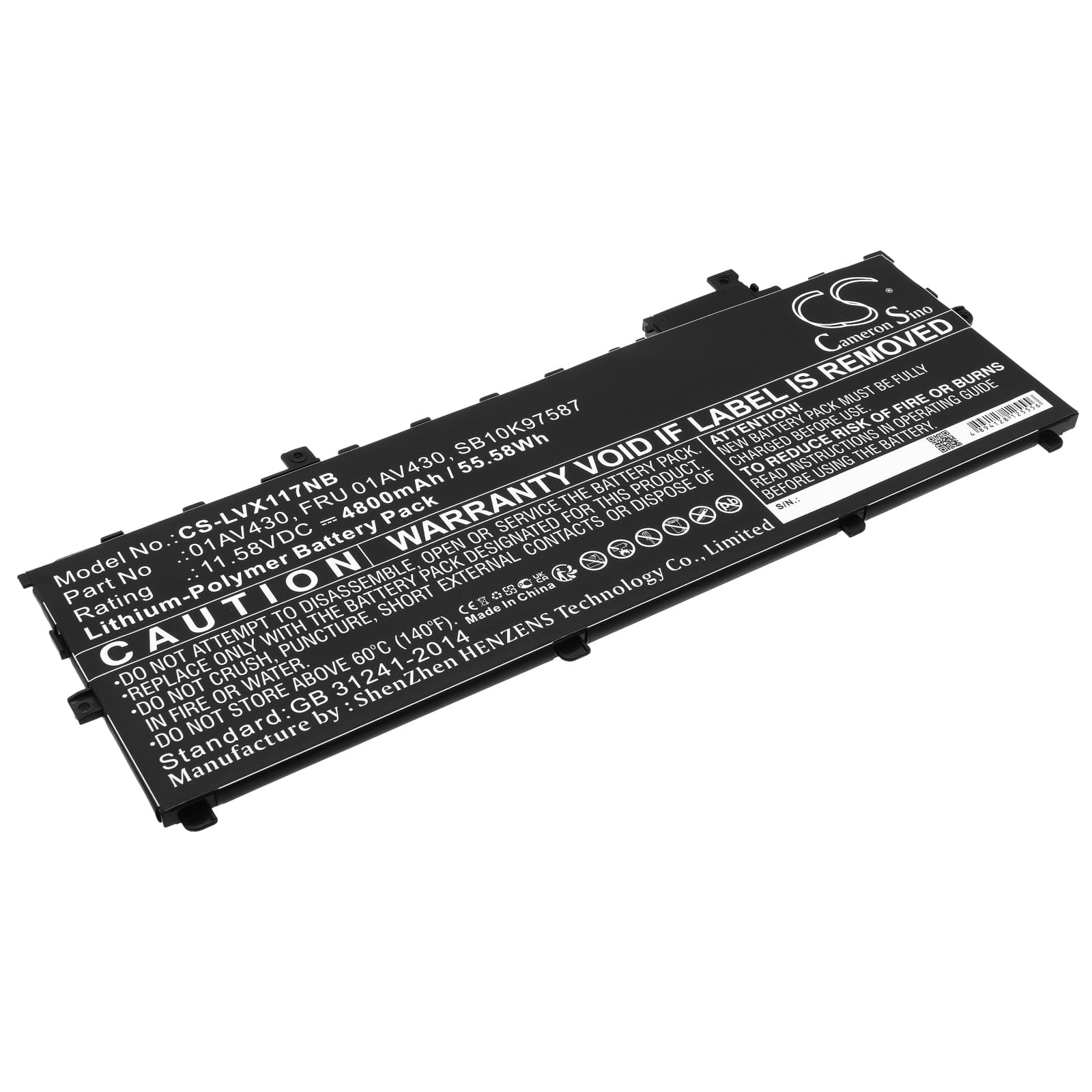

Lenovo ThinkPad X1 Carbon 2017 — 11.58V Li-Polymer Replacement Battery (01AV430)
This 11.58V, 4800mAh (55.58Wh) Li-Polymer battery replaces the original cell in the Lenovo ThinkPad X1 Carbon 2017 series. It fits the slim 5.40mm battery bay used across 2017 X1 Carbon variants, including TP X1-20KHS2H300, TP X1-20KGS2BA00, and TP X1-20KHS04K00. Cross-references include SB10K97587, SB10K97586, SB10K97588, 01AV429, 01AV431, and 01AV494.
- 2017 X1 Carbon platform fit: All 2017 X1 Carbon variants share the same 11.58V three-cell Li-Polymer architecture, connector pinout, and BMS handshake protocol — which is why a single part number covers 222+ sub-models on this generation.
- Bench tested on actual hardware: We ran this cell on a ThinkPad X1 Carbon 2017 chassis. The BMS initialised without error, the BIOS recognised the battery on first boot, and the charge controller accepted a full 0–100% cycle without tripping a fault code.
- Post-install discharge cycle on ThinkPad: After fitting this battery, run one full discharge to hibernate cutoff, then charge uninterrupted to 100%. This resets the BIOS battery learn cycle and clears the inaccurate health warning that appears in Lenovo Vantage after every cell swap.
BIOS reporting battery health as poor immediately after replacement
The ThinkPad BIOS reads health data stored in the battery's EEPROM — not from live cell measurements. When a new cell arrives, that EEPROM data does not yet match the BIOS's learned profile from the previous battery. The system flags this mismatch as degraded health, even with a brand-new cell installed. Running one full discharge-to-hibernate then a complete uninterrupted charge forces the BIOS to rewrite its stored profile against the new cell's actual chemistry.
Laptop shuts down abruptly at 20–30% shown on the gauge
This happens when the fuel gauge IC has not yet calibrated against the new cell's voltage curve. During high CPU and display loads, the cell's voltage drops faster than the uncalibrated gauge predicts — the system hits the hardware low-voltage cutoff while the OS still shows 20–30% remaining. It is not a faulty cell. After two to three full discharge-and-charge cycles, the fuel gauge IC recalibrates and the shutdowns stop. Confirm calibration is complete by checking that the gauge reads below 5% before the system triggers hibernate.
