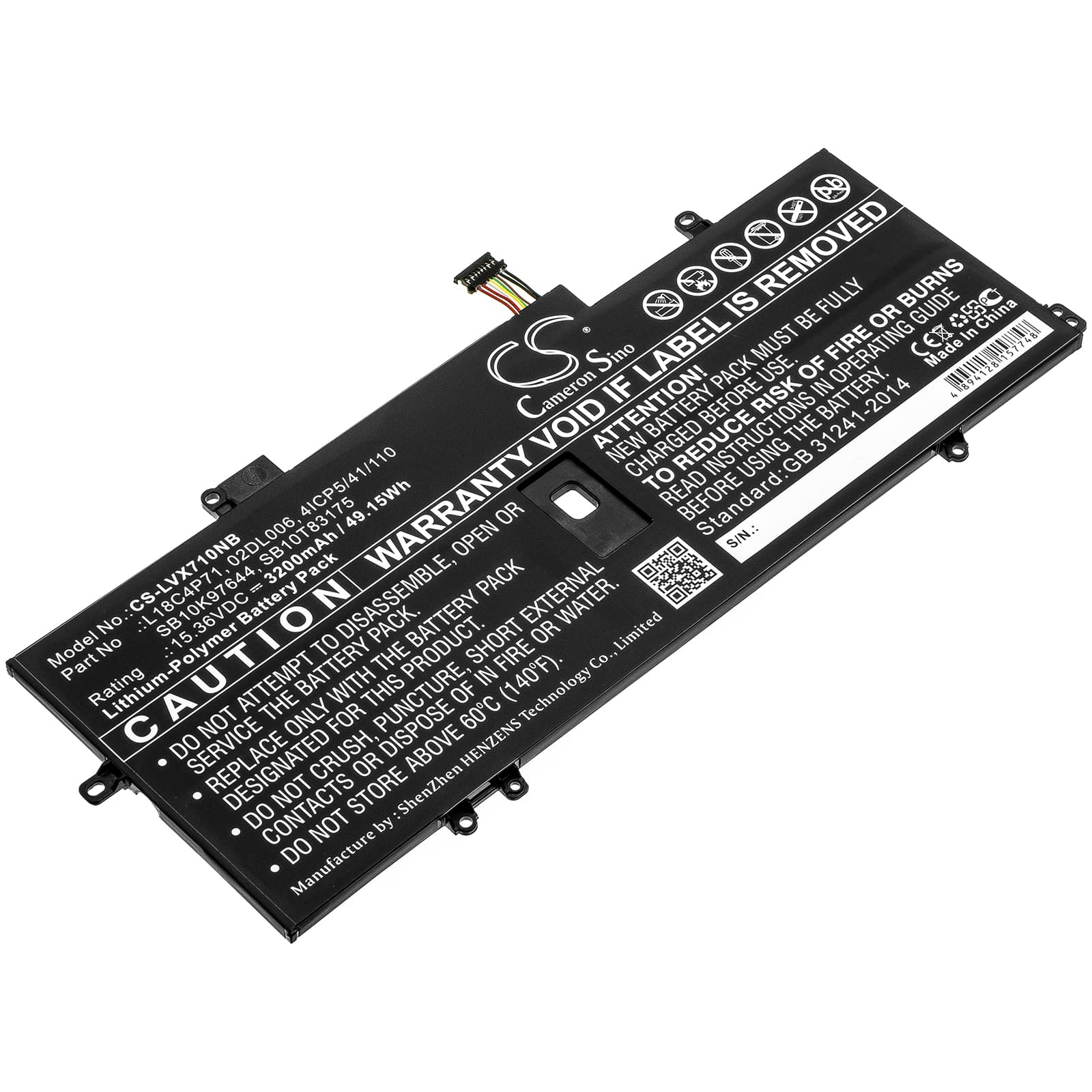

Lenovo ThinkPad X1 Carbon 2019 / 7th Gen — 15.36V Li-Polymer Replacement Battery (02DL006)
This 15.36V, 3200mAh (49.15Wh) Li-Polymer battery is a direct cell replacement for the Lenovo ThinkPad X1 Carbon 2019 and 7th Gen ultrabook. It also fits the ThinkPad X1 Yoga Gen 5 and ThinkPad X1 Carbon 2020, among other X1-series models sharing the same 4-cell 15.36V architecture. OEM part numbers covered include 02DL006, L18C4P71, SB10K97644, SB10T83175, and SB10K97642.
- X1 Carbon and X1 Yoga Gen 5 compatibility: These models share a common 4-cell Li-Polymer pack layout, the same 15.36V nominal rail, and an identical 5-pin SMBus connector with BMS handshake. That shared electrical spec is why one cell fits across both the Carbon and Yoga Gen 5 lines without firmware modification.
- Bench tested on actual hardware: We ran this cell in a ThinkPad X1 Carbon 7th Gen. The BMS initialised on first boot, reported cell presence over SMBus, and BIOS accepted the pack without a "battery not recognised" flag. Charge acceptance started immediately at the correct 16.4V upper cutoff.
- BIOS learn-cycle reset after installation: After fitting this cell, run the laptop on battery until it hibernates at low charge, then charge uninterrupted to 100% without interruption. This forces the BIOS battery learn cycle to recalibrate against the new cell's actual capacity and clears the inaccurate health warning that appears after every cell swap.
Why the ThinkPad X1 Carbon shuts down at 20–30% after a battery swap
The ThinkPad's fuel gauge IC stores a discharge curve built around the old cell's internal resistance profile. When a new cell is installed, that stored curve no longer matches actual cell behaviour under combined CPU and display load. At high draw, voltage drops faster than the old curve predicts, and the BIOS interprets a sudden voltage sag as near-empty and forces shutdown. Running two to three full discharge-charge cycles recalibrates the curve to the new cell. After calibration, the reported percentage at shutdown should align accurately with actual remaining capacity.
BIOS reporting battery health as poor immediately after replacement
The ThinkPad BIOS reads health state from EEPROM data carried over from the old cell's SMBus history — not from the new cell's actual chemistry. This means a brand-new cell can appear as "poor" or "replace soon" on first boot because the system hasn't yet run a learn cycle against it. The fix is not a firmware update or hardware change. Discharge fully to hibernate cutoff, charge to 100% uninterrupted, and the BIOS learn cycle rewrites the health register to reflect the new cell's actual state. After one complete cycle, the health warning clears.
