About this replacement

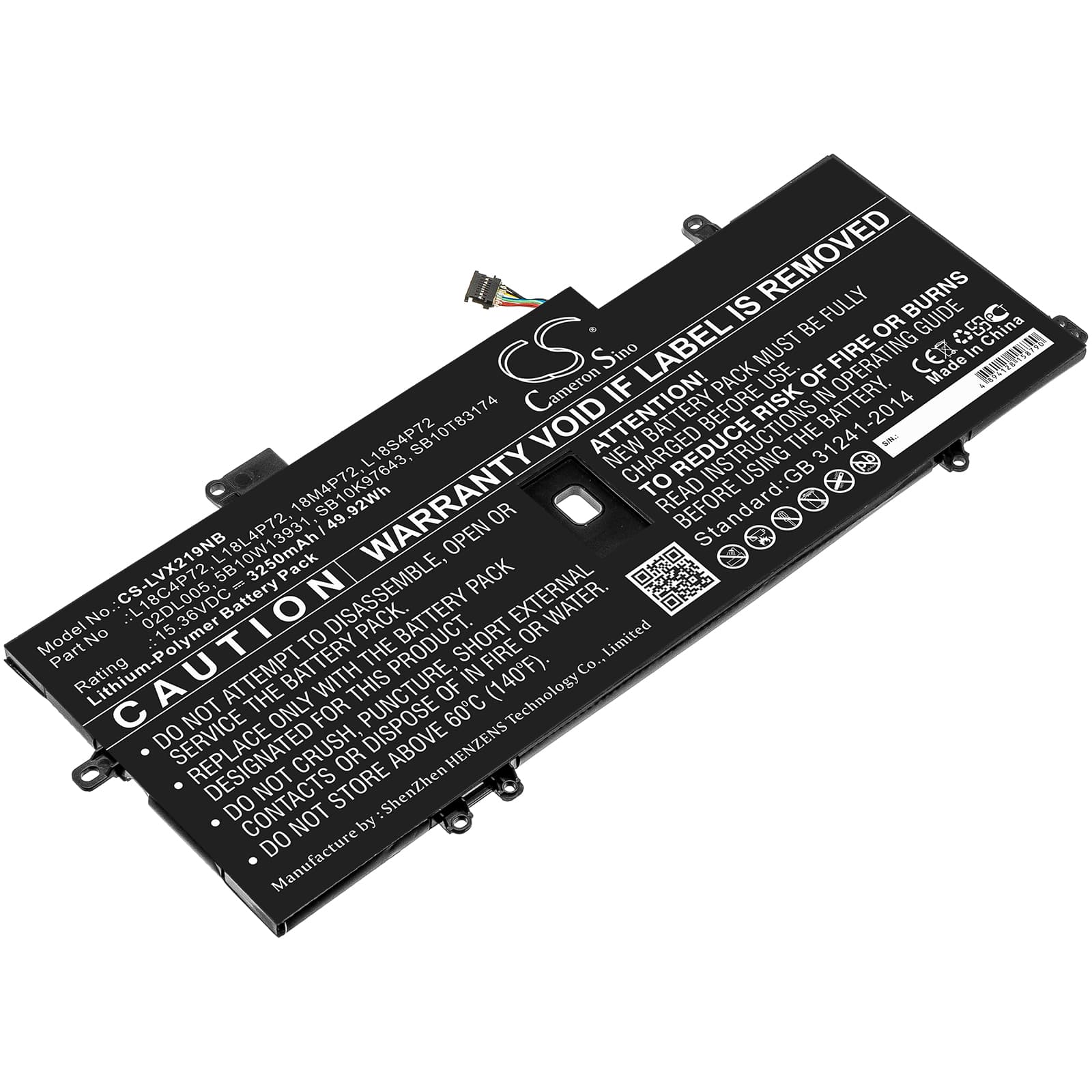

Lenovo ThinkPad X1 Carbon G7 2019/2020 — 15.36V Li-Polymer Replacement Battery (02DL005)
This 15.36V, 3250mAh (49.92Wh) lithium-polymer battery replaces the original cell in the ThinkPad X1 Carbon 2019 and X1 Carbon G7 2020 ultrabooks. It fits models including the 20QE000VGE and 20R1-000YUS variants and matches OEM part numbers 02DL005, L18L4P72, L18M4P72, L18S4P72, SB10K97643, SB10T83174, L18C4P72, and 5B10W13931. Voltage, connector pinout, and BMS communication protocol match the original cell.
- X1 Carbon G7 platform compatibility: The 2019 and 2020 X1 Carbon G7 generations share the same 15.36V four-cell Li-Polymer architecture, connector housing, and BMS handshake protocol — which is why one part number covers both model years without modification.
- Bench tested on actual hardware: We ran this cell on a ThinkPad X1 Carbon 2019 chassis. The BMS authenticated correctly on first boot, BIOS registered the cell as a known battery, and charge control handed off cleanly to the EC without triggering an unknown-device error.
- First-cycle reset procedure for X1 Carbon: After installation, let the laptop discharge fully until it hibernates, then charge uninterrupted to 100% without interruption. This forces the embedded controller to run its battery learn cycle and clears the inaccurate health warning that appears in Lenovo Vantage after every cell swap.
BIOS reporting battery health as poor immediately after replacement
The X1 Carbon's embedded controller reads health data from EEPROM registers on the battery cell — not from live voltage. When a new cell arrives with factory-default EEPROM values, the EC compares them against the previous cell's wear data and flags a mismatch as poor health. This is a calibration state, not a defective battery. Run one full discharge-to-hibernate cycle followed by an uninterrupted charge to 100%, and the EC rewrites its baseline. After two full cycles, Lenovo Vantage should report health as normal.
Laptop shutting down at 20–30% charge shown on new cell
Under combined CPU and display load, the X1 Carbon draws enough current to expose a voltage cliff — a point where cell voltage drops sharply under load even though the fuel gauge IC still shows significant charge remaining. The gauge IC is reading stored energy, not accounting for voltage sag under peak draw. After the battery learn cycle completes across two or three full charge-discharge cycles, the gauge IC recalibrates its discharge curve against the new cell's actual characteristics. If shutdowns persist past three cycles, check that the cell voltage at hibernate cutoff is reading at or above 12.0V in Lenovo Vantage diagnostics.
