About this replacement

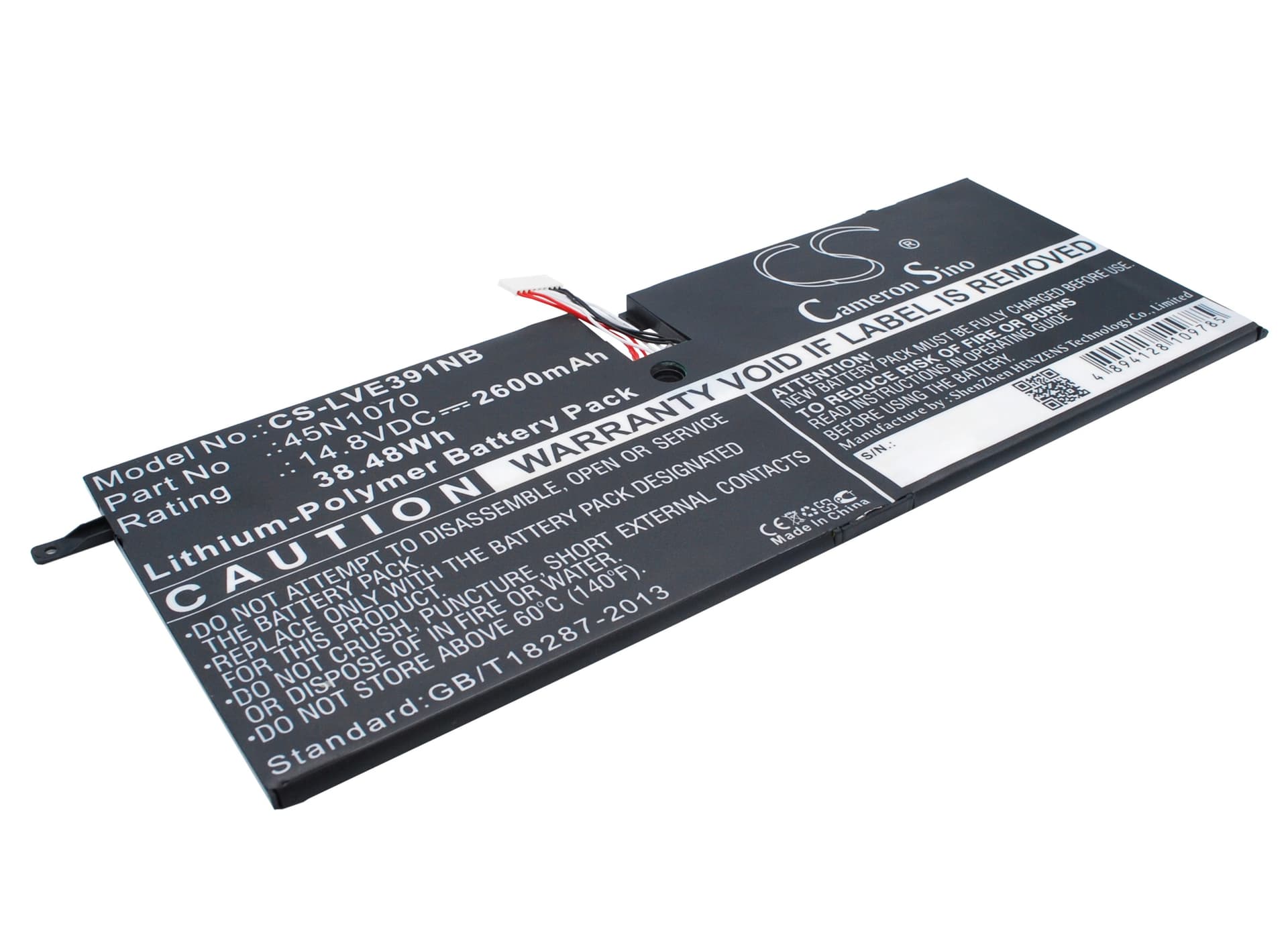

Lenovo ThinkPad X1 Carbon 3444 Series — 14.8V Li-Polymer Replacement Battery (45N1070)
This 14.8V Li-Polymer cell carries 2600mAh (38.48Wh) and fits the ThinkPad X1 Carbon 3444, 3448, and 3460 series ultrabooks. It replaces OEM part numbers 45N1070 and 45N1071. The slim 6.40mm profile matches the original bay geometry exactly, so the back panel seats flush without modification.
- X1 Carbon 3444 / 3448 / 3460 fit: These three model codes share an identical battery bay, connector pinout, and BMS handshake protocol. One cell covers all three without adapter plates or wiring changes.
- Bench tested on actual hardware: We ran this cell through charge-discharge cycles on a 3444 chassis and monitored the BMS communication over SMBus. The protection circuit responded correctly to both low-voltage cutoff and over-current events during CPU stress loads.
- Post-swap calibration on the X1 Carbon: After installing, run one full discharge to hibernate-cutoff, then charge uninterrupted to 100%. This resets the BIOS battery learn cycle and clears the inaccurate health warning that appears after every cell swap on this platform.
Why the X1 Carbon BIOS reports poor battery health immediately after a swap
The ThinkPad EC stores charge history and cycle count in EEPROM on the original cell. When a new cell goes in, that EEPROM data is absent or mismatched, so the firmware flags the battery as degraded before any charge data exists. This is a firmware read problem, not a fault with the replacement cell. Running the BIOS battery learn cycle — one full discharge to cutoff, one uninterrupted charge to 100% — writes fresh data to the EC and clears the warning. After two to three full cycles, the health status normalises.
Laptop shuts down at 20–30% charge shown on the gauge
The fuel gauge IC on the X1 Carbon calibrates its empty-point estimate against historical discharge curves from the old cell. With a new cell installed, those curves don't match, so the IC declares empty while usable capacity remains. The result is an abrupt shutdown at what the OS displays as 20–30%. The fix is three full calibration cycles: discharge to automatic hibernate, charge fully each time, without interruption. After the third cycle the gauge IC re-anchors its model to the new cell's actual voltage floor, typically around 12.0V under load.
