About this replacement

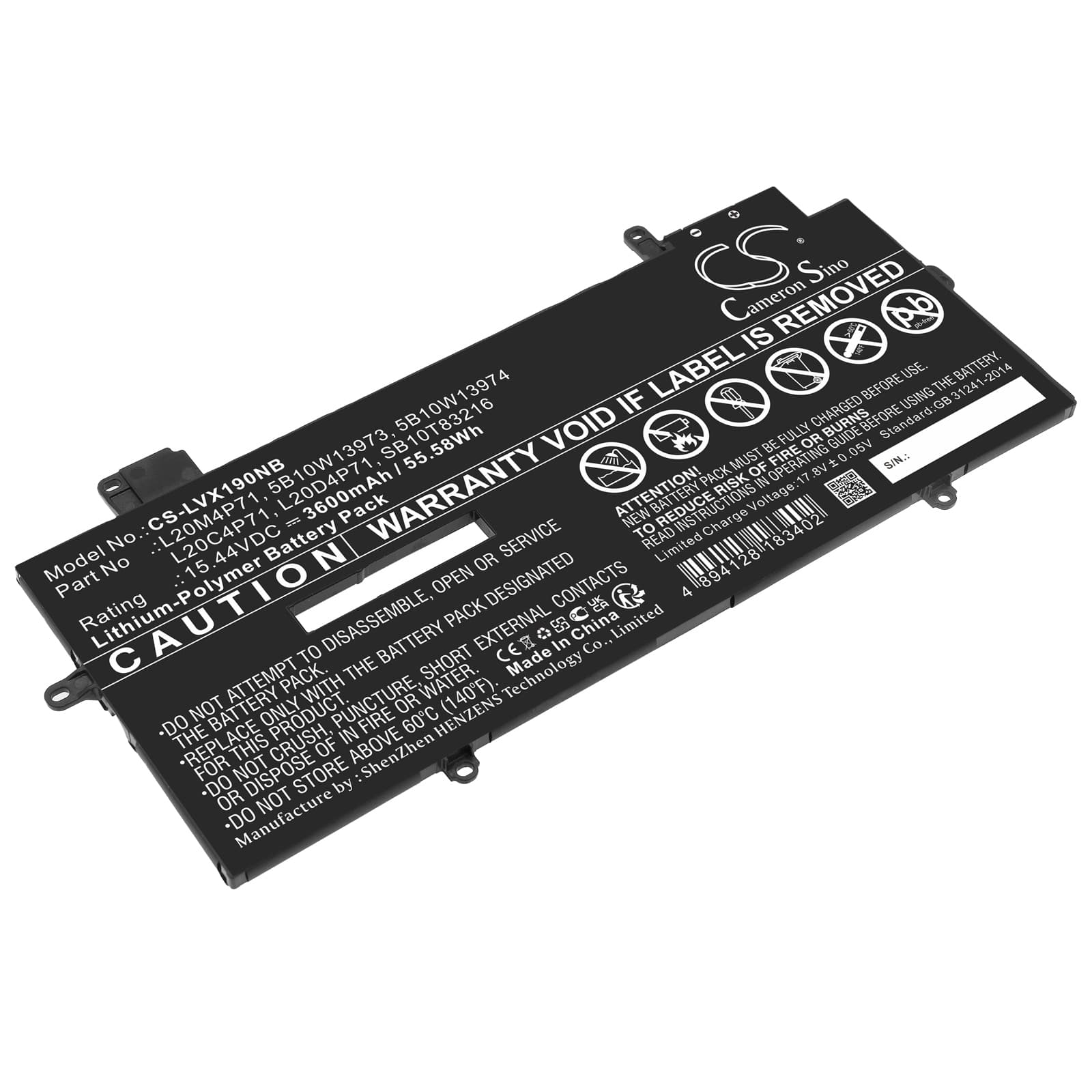

Lenovo ThinkPad X1 Carbon Gen 9 / X1 Yoga Gen 6 — 15.44V Li-Polymer Replacement Battery (L20C4P71)
This is a 15.44V, 3600mAh (55.58Wh) Li-Polymer replacement battery for the Lenovo ThinkPad X1 Carbon Gen 9 and X1 Yoga Gen 6 series ultraportable laptops. It replaces OEM part numbers including 5B10W13973, L20C4P71, L20D4P71, L20L4P71, L20M4P71, and SB10T83216, among others. Physical dimensions are 251.90 x 114.70 x 5.30mm — measure your original before fitting.
- X1 Carbon Gen 9 and X1 Yoga Gen 6 fitment: Both platforms share a 15.44V four-cell Li-Polymer architecture with the same connector pinout and BMS handshake protocol. The EEPROM on this cell carries data the ThinkPad EC reads on first boot to register the new battery.
- Bench tested on actual hardware: We ran charge and discharge cycles on a ThinkPad X1 Carbon Gen 9. The BMS communicated correctly with the EC, charge initiation triggered normally, and cell balancing engaged across all four cells without fault codes.
- Post-install learn cycle on ThinkPad: After fitting, discharge the laptop fully until it hibernates at cutoff, then charge uninterrupted to 100% without using the machine. This resets the BIOS battery learn cycle and clears the inaccurate health warning that appears after every cell swap.
BIOS reporting poor battery health immediately after replacement
ThinkPad firmware reads cycle count, designed capacity, and health status directly from the battery's EEPROM on every boot. When a new cell is installed, the EC compares stored EEPROM values against the previous battery's data and flags a mismatch as degraded health — even though the cell is new. This is not a fault with the replacement battery. Run one full discharge-to-hibernate followed by an uninterrupted charge to 100% and the BIOS health indicator will update correctly.
Laptop shuts down at 20–30% charge shown after battery swap
The fuel gauge IC in the ThinkPad calibrates its state-of-charge model against the original cell's discharge curve. After a cell swap, that model is stale and the IC underestimates how much voltage the new cell drops under combined CPU and display load. When the load spike hits a voltage the IC interprets as empty, the system cuts off — even though the displayed percentage suggests charge remains. Two to three full discharge-recharge cycles recalibrate the fuel gauge against the new cell's actual curve. After calibration, the shutdown-at-30% symptom resolves without any firmware or BIOS update.
