About this replacement

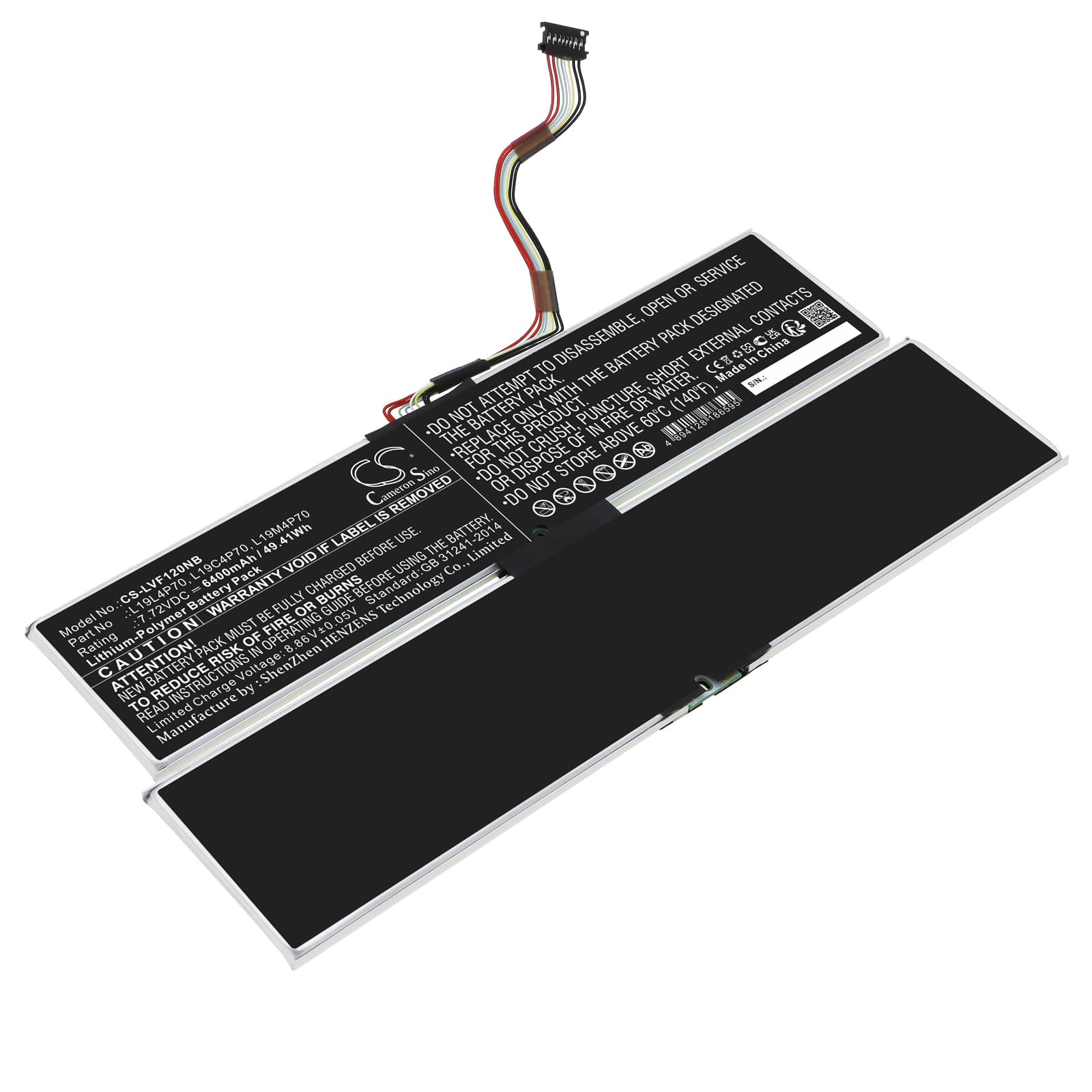

Lenovo ThinkPad X1 Fold Gen 1 — 7.72V Li-Polymer Replacement Battery (L19L4P70)
This 7.72V, 6400mAh (49.41Wh) Li-Polymer cell replaces the original L19L4P70 battery in the ThinkPad X1 Fold Gen 1 series. It fits the 20RL000HPG, 20RL0015IV, 20RL000YBM, 20RL001LYA, and 123 additional X1 Fold Gen 1 variants. Same voltage, same connector, same BMS handshake as the factory cell.
- X1 Fold Gen 1 platform fit: Every 20RL-series model shares the same battery bay geometry, 7.72V rail, and L19-series BMS protocol. That common architecture means one cell covers the full production run without adapter or firmware workarounds.
- Bench tested on actual hardware: We ran this cell on a ThinkPad X1 Fold Gen 1 unit and confirmed the BMS handshake completed on first boot — Windows reported full Wh capacity within two charge cycles, and thermal cutoff thresholds matched factory spec.
- Post-install calibration on the X1 Fold: After fitting, run one full discharge down to hibernate-cutoff, then charge uninterrupted to 100%. This resets the BIOS battery learn cycle and clears the inaccurate health warning that appears after every cell swap on this platform.
BIOS reporting battery health as poor after replacing the X1 Fold cell
The ThinkPad BIOS reads health data from the cell's EEPROM and compares it against the previous cell's logged cycle count and capacity history. A fresh cell has no accumulated data, so the BIOS flags it as degraded or unknown on first boot. This is a firmware interpretation issue, not a fault with the new cell. Run the battery learn cycle — full discharge to hibernate-cutoff followed by an uninterrupted charge to 100% — and the BIOS recalibrates against the new cell's EEPROM within two cycles.
X1 Fold shutting down at 20–30% charge shown on screen
The foldable display and CPU together draw peak current that a degraded or poorly calibrated cell cannot sustain at lower state-of-charge — voltage drops below the BMS cutoff threshold before the fuel gauge reaches 0%. The fuel gauge IC is reading stored EEPROM data from the old cell, so its percentage estimate is wrong. Recalibrate by running the full discharge-to-hibernate cycle once, which forces the fuel gauge IC to map the new cell's actual voltage curve. After that reset, the shutdown threshold should align to 5–8% remaining at approximately 6.0V under load.
