About this replacement

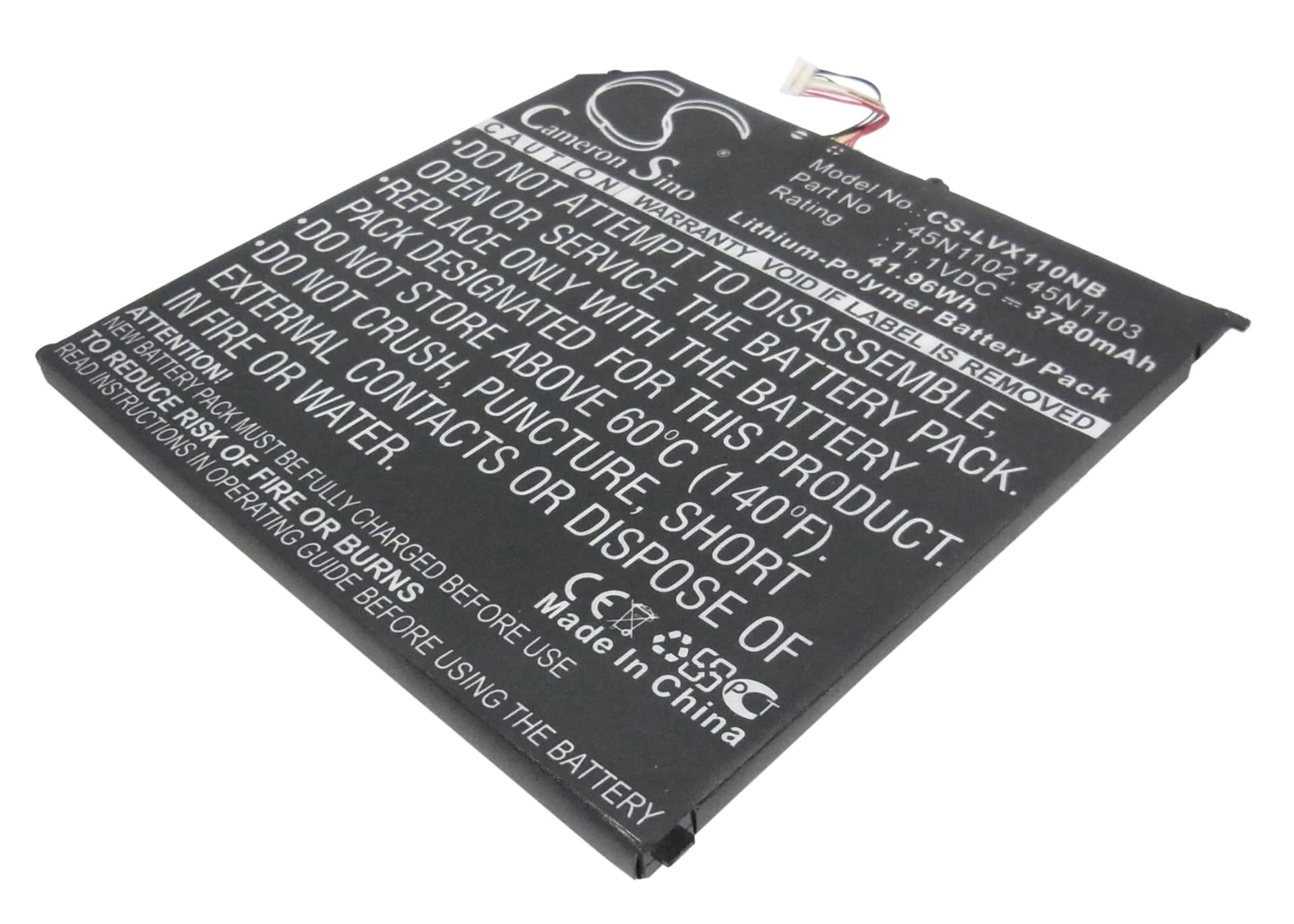

Lenovo ThinkPad X1 Helix — 11.1V Li-Polymer Replacement Battery (45N1102)
This 11.1V, 3780mAh Li-Polymer battery replaces the original cell in the Lenovo ThinkPad X1 Helix convertible ultrabook. It fits the X1 Helix lineup including M/T 3701 variants and models such as 20CGA01QCD and 20CG004JCD. OEM part numbers 45N1102 and 45N1103 both apply to this battery slot.
- X1 Helix platform fit: The 3701-series and 20CG-series share the same battery bay dimensions, connector pinout, and BMS handshake protocol — that is why a single cell covers all listed variants without modification.
- Bench tested on actual hardware: We ran this cell through charge and discharge cycles on a ThinkPad X1 Helix unit. The BMS handshake completed without fault codes, and the cell held voltage across the full discharge curve without unexpected cutoff.
- BIOS learn cycle after install: After fitting this battery, run one full discharge down to hibernate-cutoff, then charge uninterrupted to 100%. This resets the BIOS battery learn cycle and clears the inaccurate health warning that appears after every cell swap on ThinkPad hardware.
Why the X1 Helix shuts down at 20–30% after a battery swap
The ThinkPad X1 Helix runs a combined CPU and display load that can pull several amps in bursts. A new cell that hasn't been calibrated will hit a voltage cliff — the cell voltage drops faster than the fuel gauge IC expects under that load, and the system triggers an emergency shutdown. This is not a faulty battery. Running two to three full discharge-to-hibernate and full-charge cycles allows the fuel gauge IC to map the new cell's actual discharge curve and eliminate early cutoff.
BIOS reports battery health as poor immediately after fitting a new cell
The ThinkPad BIOS reads health data from the battery's EEPROM, which still carries cycle count and degradation values written by the old cell. The replacement cell arrives with its own EEPROM state, and the BIOS flags the mismatch as poor health rather than unknown. Run the battery learn cycle — full discharge to hibernate cutoff, then a single uninterrupted charge to 100% — and the BIOS will rewrite its health baseline against the new cell. After one complete cycle, the health warning clears and the reported capacity aligns with the actual 41.96Wh rating.
