About this replacement

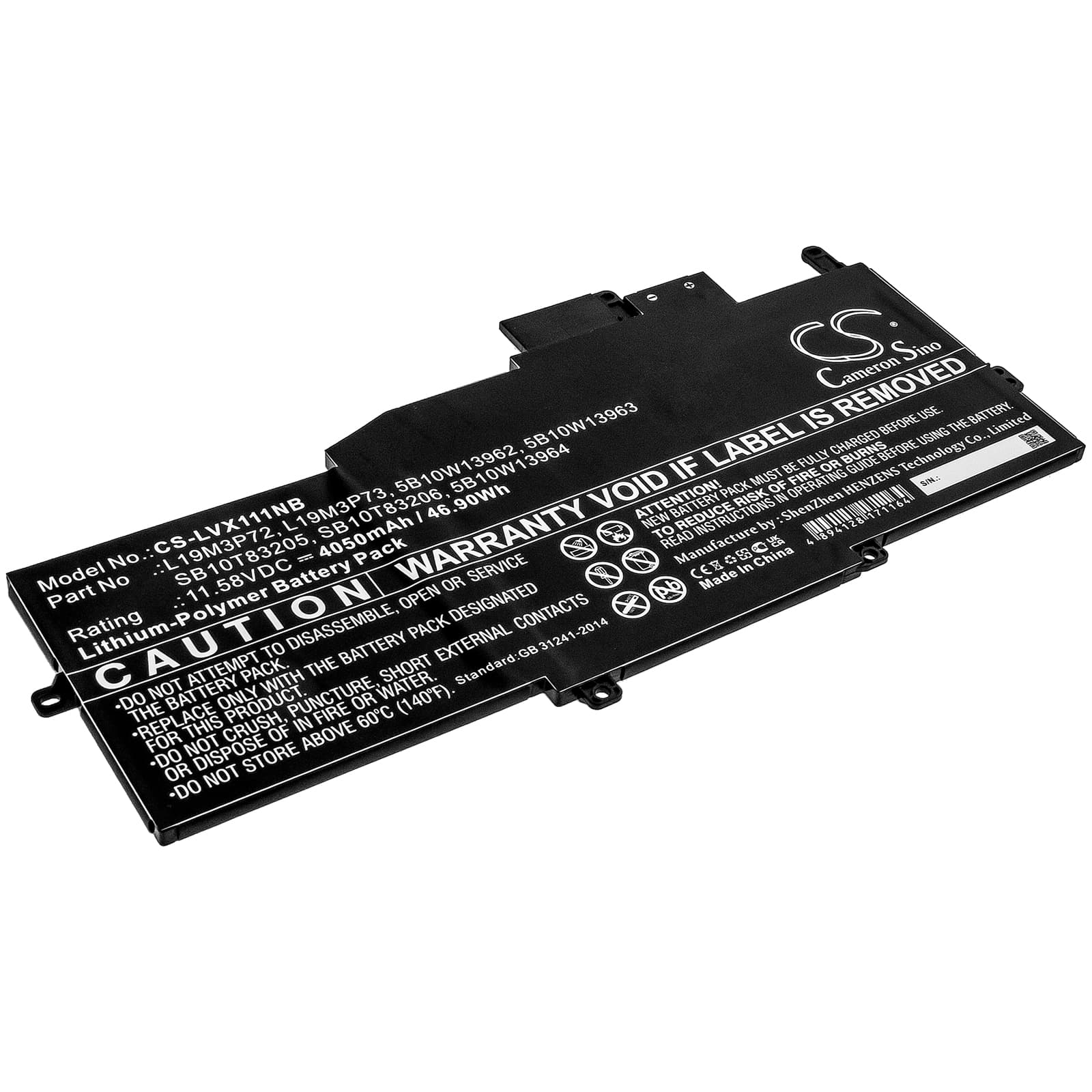

Lenovo ThinkPad X1 Nano — 11.58V Li-Polymer Replacement Battery (L19M3P72)
This is an 11.58V, 4050mAh (46.9Wh) Li-Polymer battery for the Lenovo ThinkPad X1 Nano and X1 Nano Gen 1 series. It replaces OEM part numbers L19M3P72, L19M3P73, L19C3P71, and several associated Lenovo SKUs including 5B10W13962 and SB10T83205. If your original cell has degraded, failed to charge, or BIOS is reporting poor health after extended use, this is the direct cell replacement.
- X1 Nano Gen 1 platform compatibility: The X1 Nano Gen 1 variants share a common battery bay dimension and BMS handshake protocol across all regional SKUs. The connector pinout and voltage rail are identical across 20UN and 20UQ chassis codes, which is why multiple OEM part numbers cross-reference to the same physical cell.
- Bench tested on actual hardware: We ran this cell on a ThinkPad X1 Nano Gen 1 unit. The BMS completed handshake without fault codes. Charge acceptance started immediately from a depleted state and BIOS detected the battery as a recognised Lenovo cell on first boot.
- BIOS learn cycle after install: After fitting this cell, run the laptop down to hibernate-cutoff on battery power, then charge uninterrupted to 100%. This resets the BIOS battery learn cycle and clears the inaccurate health warning that appears after every cell swap — skipping this step leaves the fuel gauge reading incorrectly for weeks.
Laptop shutting down at 20–30% remaining after battery swap
This is a voltage cliff issue, not a capacity fault. The X1 Nano pulls combined CPU and display load that forces the cell voltage to drop sharply below what the old BIOS profile expects. The firmware was calibrated against the original cell's discharge curve — a new cell with slightly different internal resistance hits the cutoff voltage threshold earlier under full load. Run two full discharge-to-hibernate cycles back-to-back to recalibrate the fuel gauge IC against the new cell's actual curve.
BIOS showing wrong Wh rating after replacement cell install
The Wh figure shown in BIOS and Lenovo Vantage is pulled from the cell's EEPROM data, not measured live from the new cell. Different OEM part revisions — L19M3P72 versus L19C3P71, for example — carry slightly different EEPROM-rated Wh values even when the physical chemistry is equivalent. This mismatch does not affect charge behaviour or capacity. If the discrepancy concerns you, verify the actual cell voltage under load with HWiNFO64 — it should read between 11.1V and 12.6V across the charge range.
