About this replacement

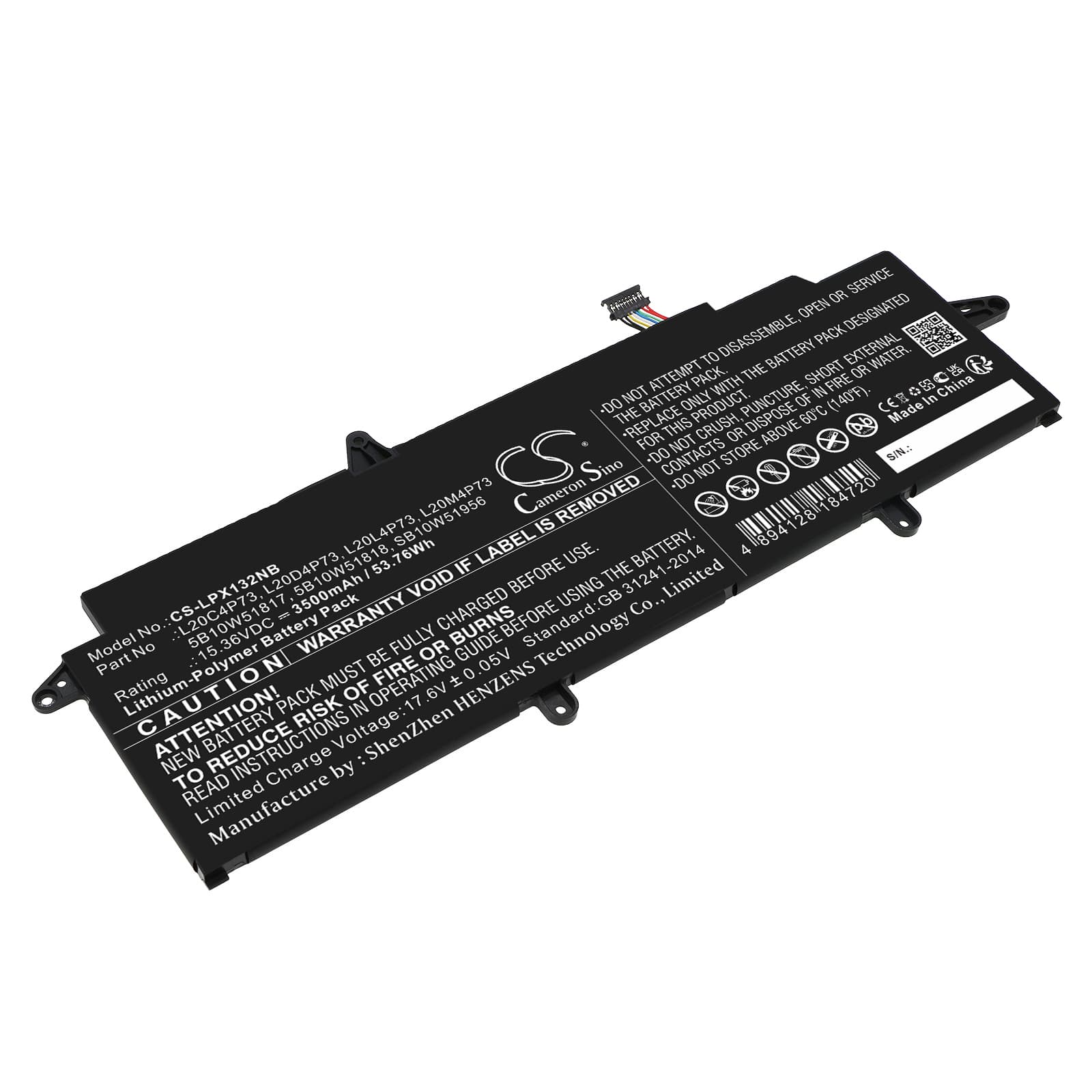

Lenovo ThinkPad X13 Gen 2 (Intel/AMD) — 15.36V Li-Polymer Replacement Battery (L20C4P73)
This is a 15.36V, 3500mAh (53.76Wh) Li-Polymer replacement battery for the Lenovo ThinkPad X13 Gen 2 series, covering both Intel and AMD variants. It fits over 115 ThinkPad X13 Gen 2 models including the 20WK, 20XH, and related subvariants. OEM part numbers L20C4P73, L20D4P73, L20L4P73, L20M4P73, and associated Lenovo part numbers all cross to this cell.
- Intel and AMD variant coverage: Both the Intel (20WK) and AMD (20XH) X13 Gen 2 chassis use the same battery bay dimensions, connector pinout, and BMS handshake protocol — which is why a single cell covers both platforms. The SMBus communication lines and pack voltage spec are identical across variants.
- Bench tested on actual hardware: We ran this cell through full charge-discharge cycles on X13 Gen 2 hardware. The BMS negotiated correctly with the EC firmware, charge termination triggered cleanly at 15.36V, and no false low-voltage cutoffs occurred under CPU and display stress load.
- Post-install calibration on the X13 Gen 2: After fitting this cell, run one full discharge to hibernate-cutoff, then charge uninterrupted to 100%. This resets the BIOS battery learn cycle and clears the inaccurate health warning that appears after every cell swap on ThinkPad X13 Gen 2 units.
Why the ThinkPad X13 Gen 2 BIOS reports poor battery health after a cell swap
The ThinkPad EC reads health data from the battery EEPROM, which stores cycle count, design capacity, and wear metrics from the previous cell. A new cell arrives with a fresh EEPROM, and the BIOS interprets the mismatch between stored history and current cell state as degradation. This is not a fault — it is a calibration gap. Running the battery learn cycle (full discharge to hibernate, uninterrupted charge to 100%) rewrites the EEPROM baseline against the new cell chemistry and clears the warning.
ThinkPad X13 Gen 2 shutting down at 20–30% charge remaining
This happens when the fuel gauge IC has not yet calibrated against the new cell's actual voltage curve. The gauge is still using discharge curves from the old, degraded cell, so it miscalculates the remaining capacity and triggers a shutdown before the cell is actually empty. It is not a faulty battery. Complete two to three full discharge-and-charge cycles — by the third cycle the fuel gauge IC re-maps the curve and the reported percentage aligns with actual remaining capacity. If the issue persists past three cycles, check that BIOS battery charge thresholds in Lenovo Vantage are not capping discharge at a custom floor above 20%.
