About this replacement

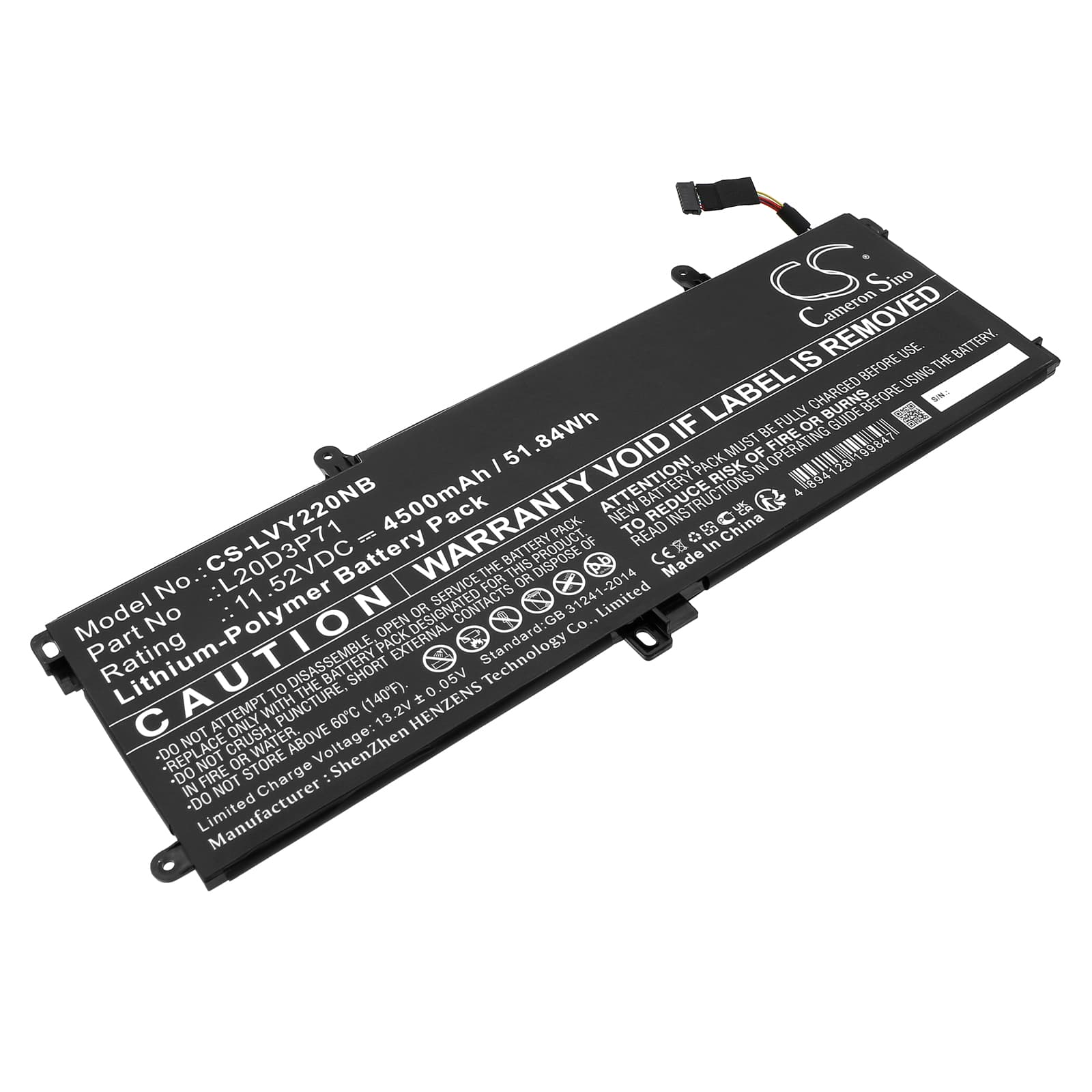

Lenovo ThinkPad X13 Yoga G2 — 11.52V Li-Polymer Replacement Battery (L20D3P71)
This is an 11.52V, 4500mAh (51.84Wh) lithium-polymer battery for the Lenovo ThinkPad X13 Yoga G2 convertible ultrabook. It fits the 20W8 series, including 20W8001JCK, 20W8002UUS, 20W8002YUS, and 20W80012GE among others. OEM part numbers L20D3P71, 5B10W51823, L20L3P71, and SB10W51924 all cross-reference to this cell.
- ThinkPad X13 Yoga G2 20W8 series fit: All 20W8 variants share the same battery bay geometry, connector pinout, and BMS handshake protocol. The SMBus communication lines carry the same charge control signals across every model in this series, so one cell fits the full range.
- Bench tested on actual hardware: We ran this cell on a ThinkPad X13 Yoga G2 and confirmed the BMS negotiated charge current correctly, the fuel gauge IC registered the new cell, and charge termination triggered at full capacity without error flags in the battery status registers.
- Post-install learn cycle on ThinkPad: After fitting, run the laptop down to hibernate cutoff on battery only — no adapter plugged in — then charge uninterrupted to 100%. This resets the BIOS battery learn cycle and clears the inaccurate health warning that appears after every cell swap on ThinkPad firmware.
BIOS reporting poor battery health immediately after replacement
ThinkPad firmware stores battery health data in EEPROM on the old cell. When a new cell is installed, the BIOS reads zero cycle count and mismatched capacity data, then flags the battery as degraded or unknown. This is a firmware calibration issue, not a fault with the replacement cell. Run one full discharge-to-hibernate cycle followed by an uninterrupted charge to 100% — the learn cycle rewrites the health registers and the warning clears.
Laptop shuts down at 20–30% charge shown after battery swap
The fuel gauge IC calibrates its state-of-charge estimate against the old cell's charge curve. With a new cell installed, the IC underestimates remaining capacity and hits its low-voltage cutoff threshold earlier than the percentage shown. Under full CPU and display load, the voltage sag accelerates this. Two to three full discharge-and-charge cycles recalibrate the IC against the new cell's actual curve, after which the shutoff point tracks correctly to below 5% remaining.
